9-32 Structure and Assembly/Disassembly

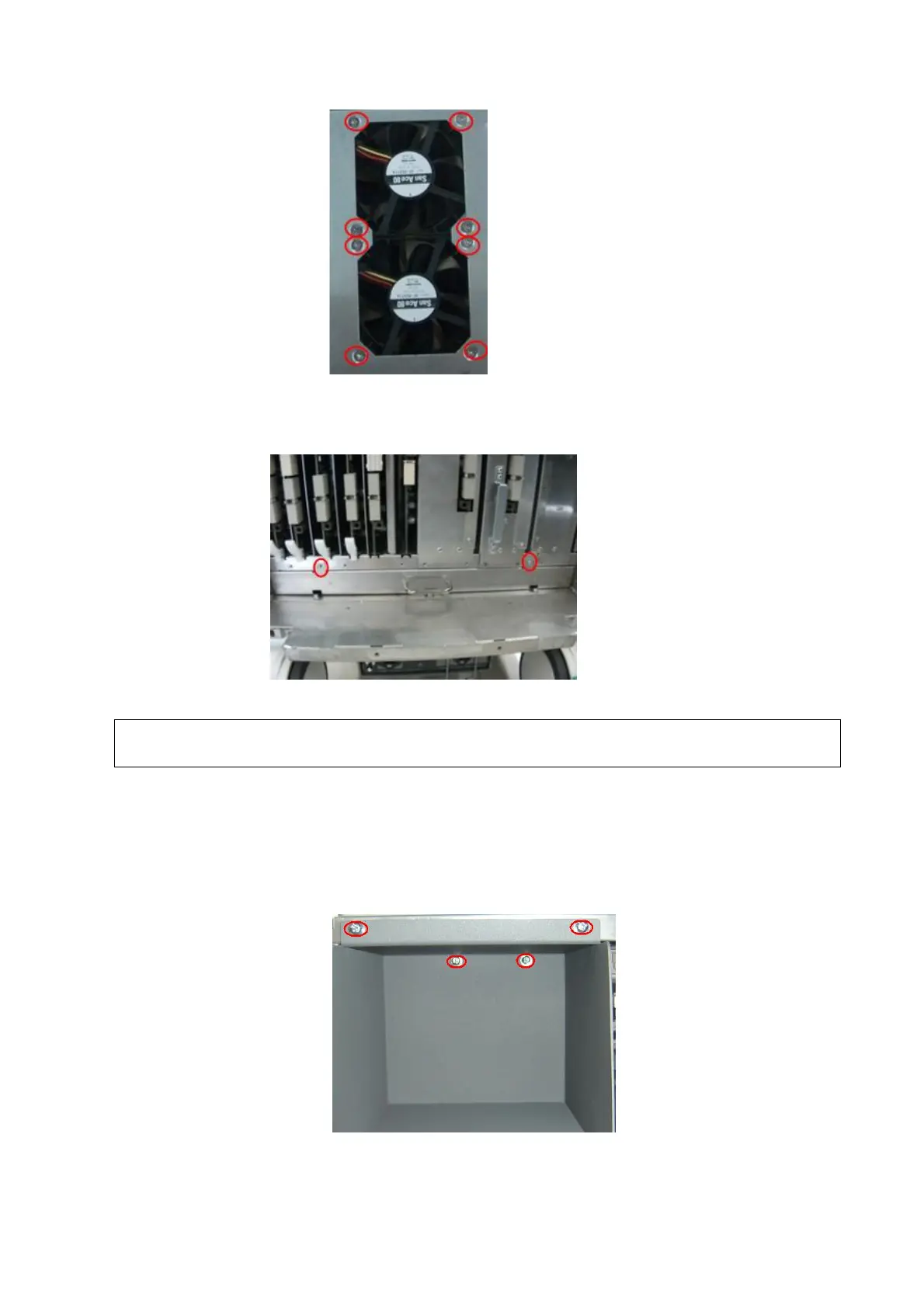

1. Remove the rear cover. Refer to procedure 1 and 2 in 9.3.3.
2. Unscrew two M3X8 screws to remove air inlet fan box.
3. Refer to disassembly of outlet fan to disassemble one group fan
9.3.12.2 DVD-R/W
1. Remove main unit front cover (refer to procedure 1 to 5 in 9.3.2) and rear cover (refer to procedure
1 and 2 in 9.3.3).
2. Unscrew four M4X8 screws to remove the storage box.
3. Loosen the cable buckle. Pull out the power cable connecting DVD-R/W with back-end
When assembling, direction of fan label should keep accordance with the one on the
fan next to it ,And don’t mix them up.
