Structure and Assembly/Disassembly 9-33
motherboard and pull out SATA signal cable. Put the cable behind machine rack.

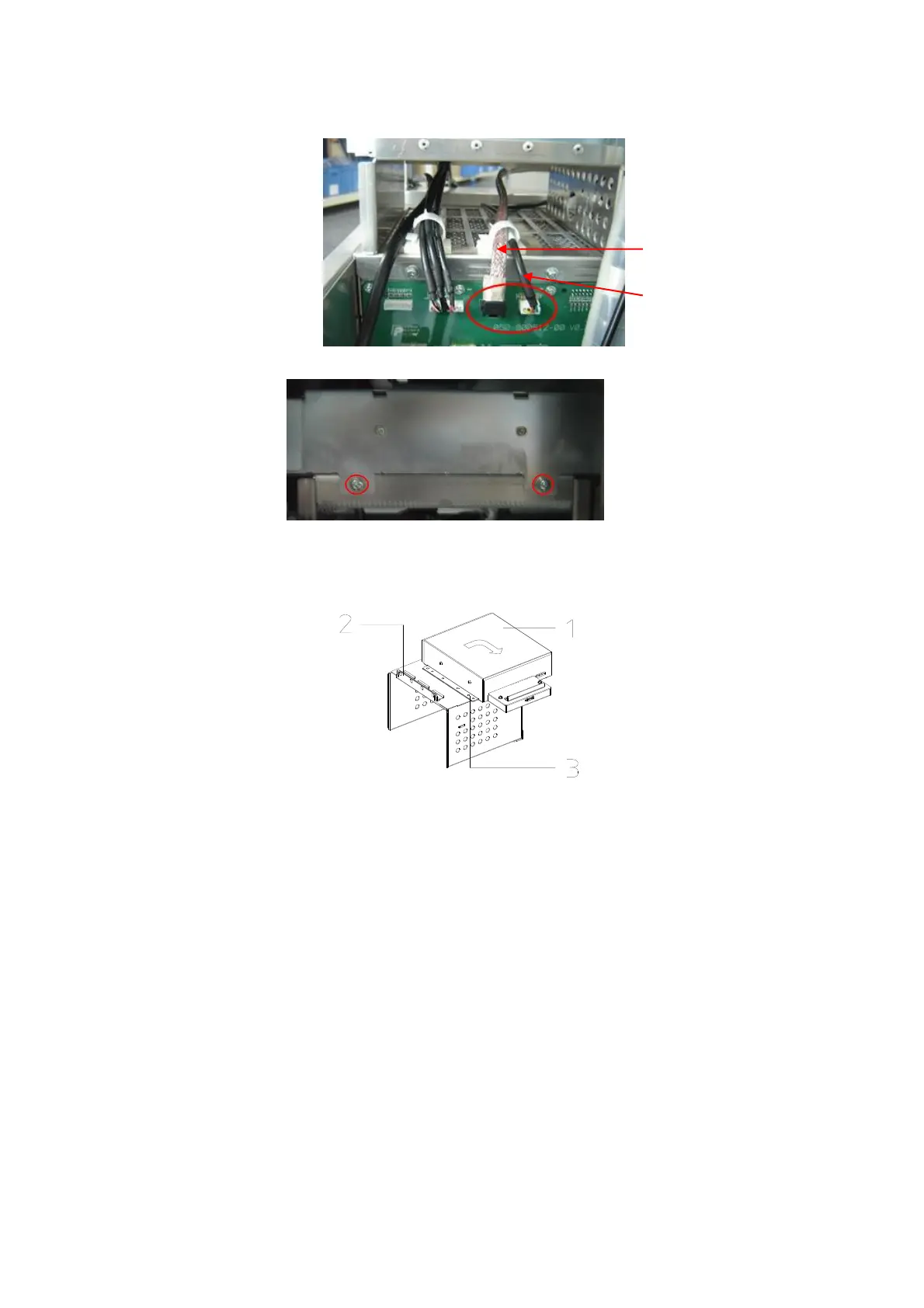

4. Remove the 2 M4X8 screws which are used to fix the DVD-R/W module.
5. Take out DVD-R/W module to the left behind the machine, and separate the frontal edge fold
from elastic sheet main unit rack to remove the module.
6. When assembling the module, put the edge fold of the module totally on the elastic sheet of
main unit, and make the bottom guarding edge next to the main unit rack, meanwhile, try to
press down the DVD-R/W button and locate the position if necessary.
9.3.12.3 Speaker assembly
1. Remove minor panel assembly. Refer to procedure 1 to 3 in 9.3.11.
2. Pull out connection cable shown in the below figure and unscrew eight M3X8 screws to
remove left speaker assembly.
