Mindray DC-8 Service Manual

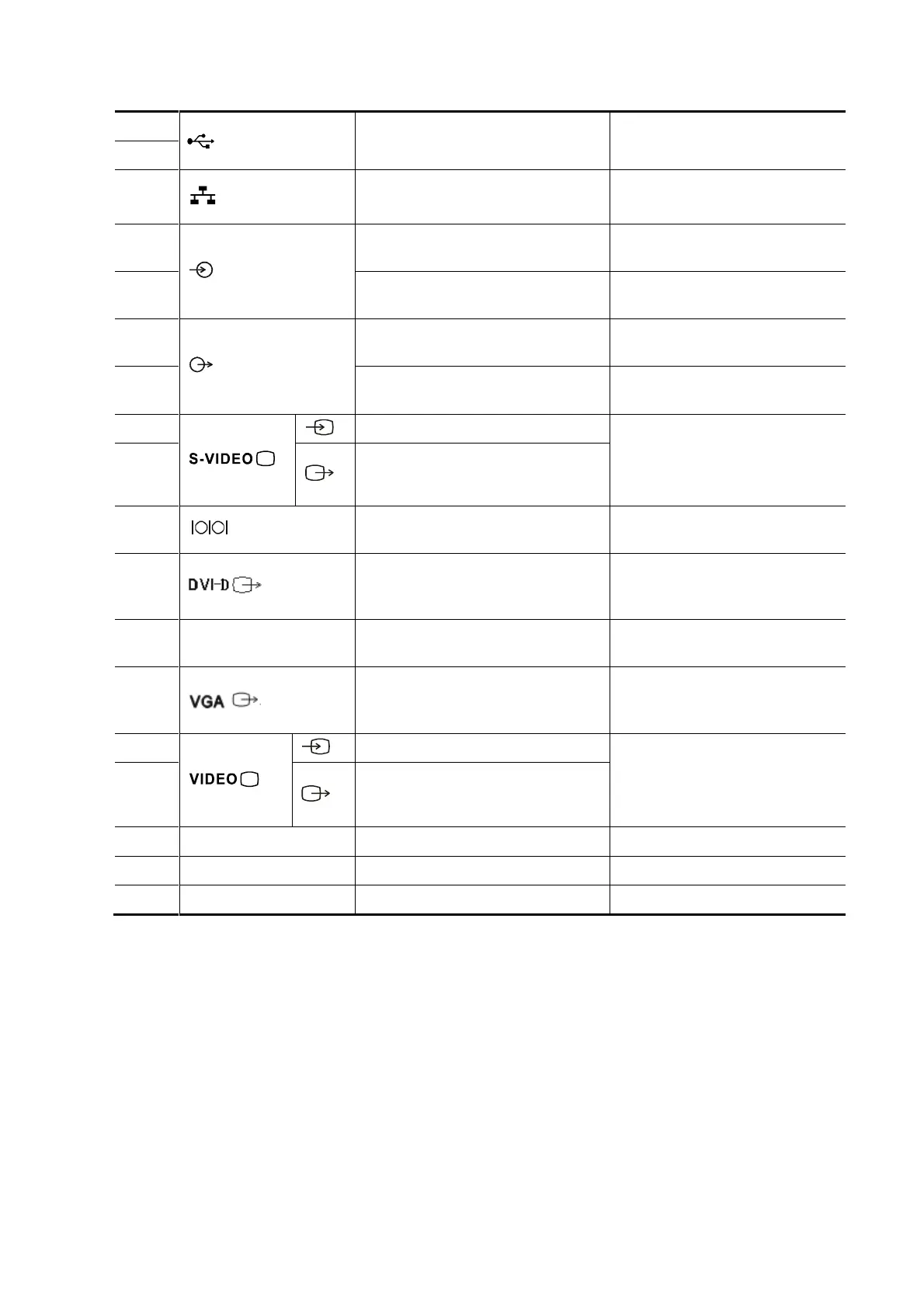

2-4 Specifications
2.
USB ports
Support USB2.0
3.
4.
Network port
Support 10/100/1000Mbit
Ethernet
5.
Audio signal input port, left
channel.
Reserved
6.
Audio signal input port, right
channel.
Reserved
7.
Audio signal output port, left
channel.
/
8.
Audio signal output port, right
channel.
/
9.
Used for separate video input
Reserved, suppoty PAL and
NTSC.
Using standard S-Video
socket
10.
Used for separate video output.
11.
Serial port, connects the serial
port devices.
Standard serial port
12.
Used for DVI-D signal output.
DVI output resolution and
content is the same as of the
main monitor.
13.
HDMI
High definition multimedia
interface.
Standard HDMI Type A port
14.
VGA signal output.
VGA output resolution and
content is the same as of the
main monitor.
15.
Used for composite video input.
Reserved, support PAL and
NTSC。
Using standard BNC
connector.
16.
Used for composite video output.
17.
/
3.3V power indicator.
/
18.
/
5V power indicator.
/
19.
/
12V power indicator.
/
