Mindray DC-8 Service Manual

Specifications 2-5

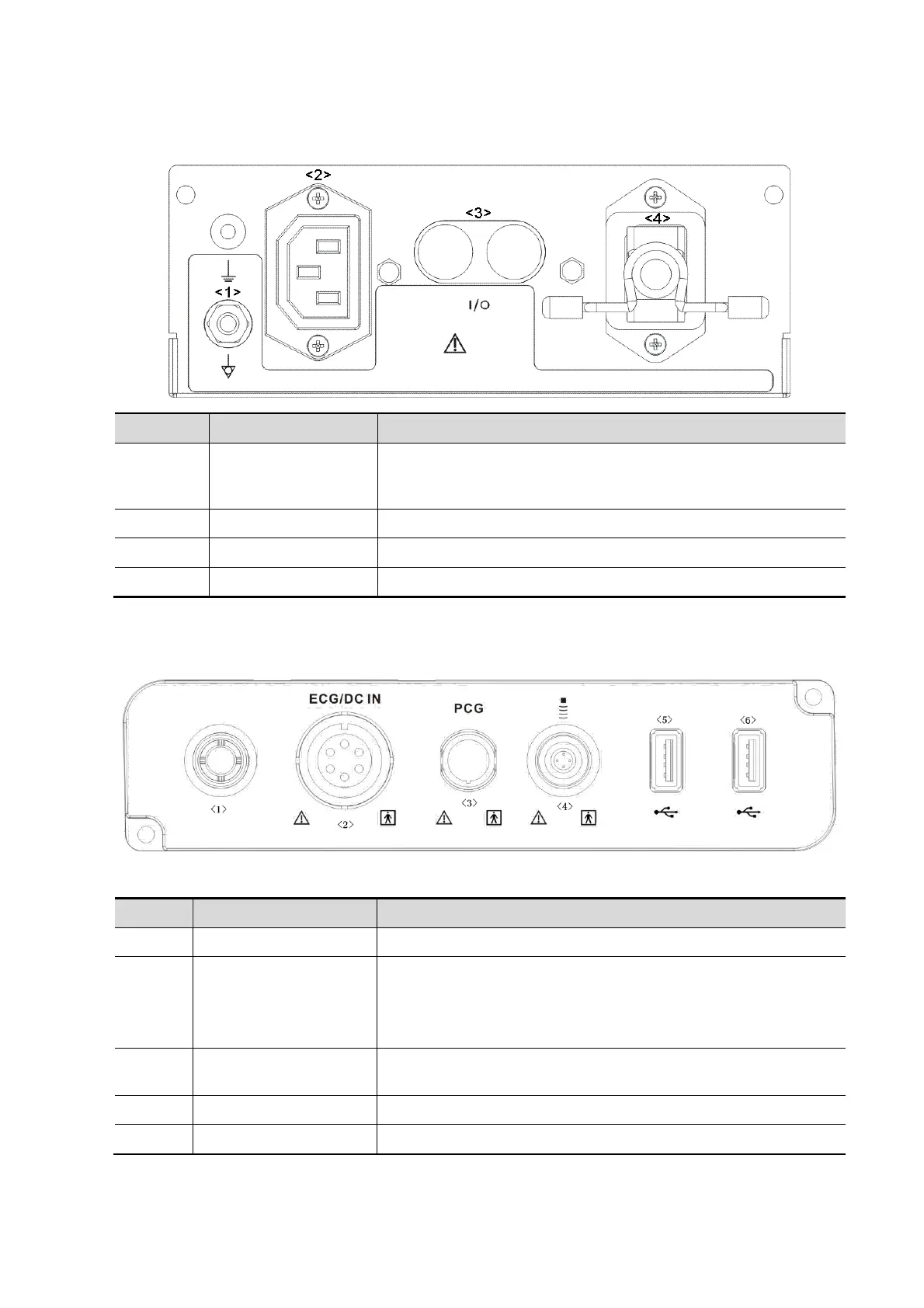

2.1.2.2 Power Supply panel
No.
Name
Function
1
Equipotential
terminal
Used for equipotential connection, that balances the protective
earth potentials between the system and other electrical
equipment.
2
Power outlet
Supply power for optional peripheral devices.
3
Circuit breaker
Used for switching off/ on the power supply.
4
Power inlet
AC power inlet.
2.1.2.3 Physio Panel (ECG & PCG)
No.
Name
Function
<1>
Reserved port
Port for reserved function.
<2>
ECG lead signal input
port / external ECG
signal input port
Connects to ECG leads, to directly obtain the ECG signals of
the patient.
Connects the signal output port of external ECG monitoring
device.
<3>
PCG signal input port
Connects to PCG transducer, to directly obtain the PCG
signals of the patient.
<4>
Pencil probe port
Used for connecting a pencil probe.
<5>/<6>
USB ports
Connects USB devices.
