13 - 54 Operator’s Manual
13 Probes and Biopsy

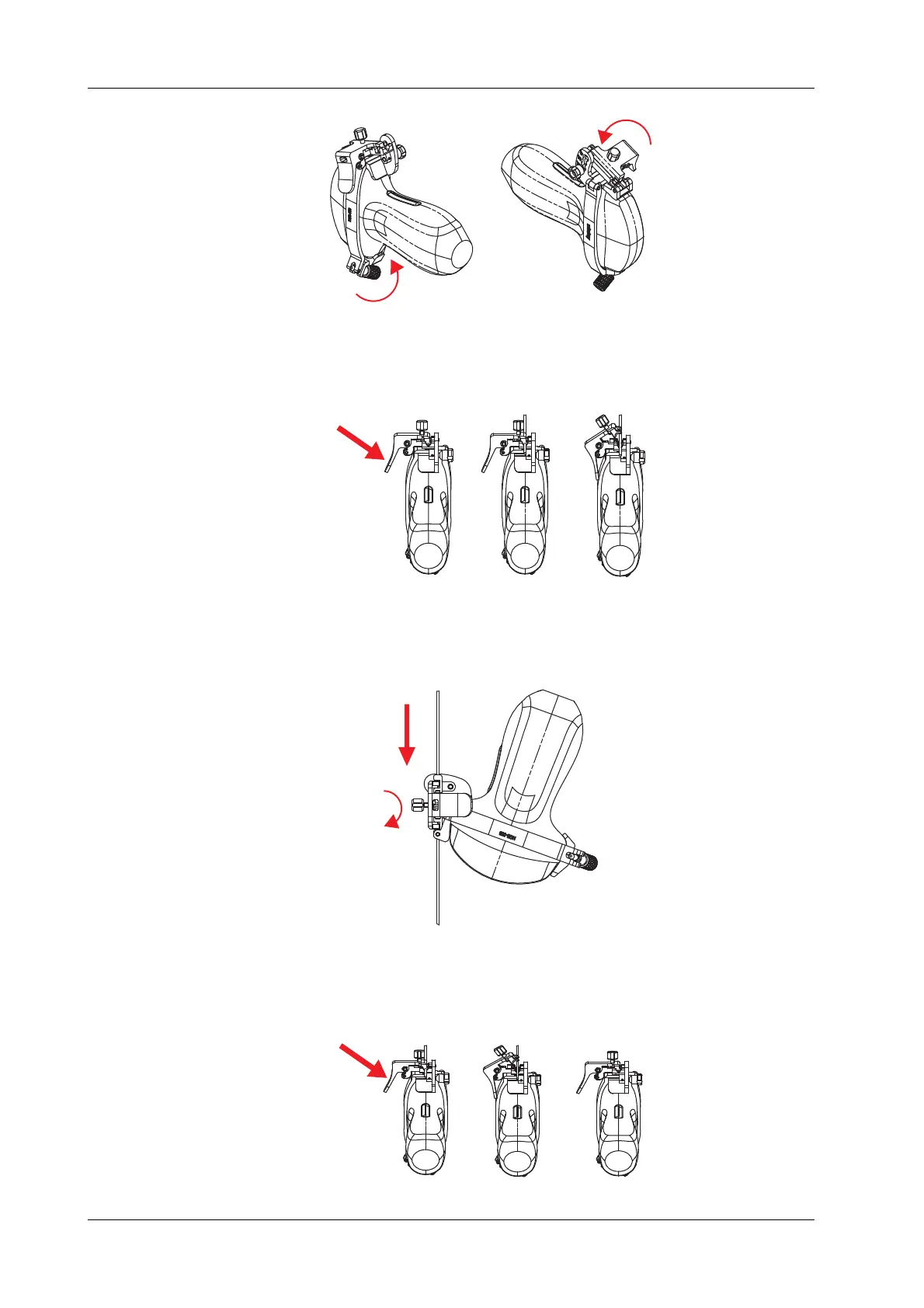

c. Hold the probe. Press the biopsy needle pressure position to separate it from the needle
guided V-shaped guiding block. Put the needle into the V-shaped guiding block of the
needle guided-bracket.
d. Hold the probe, and release the pressure position of the needle. Adjust the needle-shaped
adjusting nut manually (following the direction of the arrow). The needle moves smoothly
at the vertical direction due to its gravity.
2. Remove the needle-guided bracket:
a. Hold the probe. Press the biopsy needle pressure position to separate the biopsy needle
from the pressure position. Separate the bracket and the probe from the needle.
