13-24 Probes and Biopsy
 Plastic
No
Name
Description

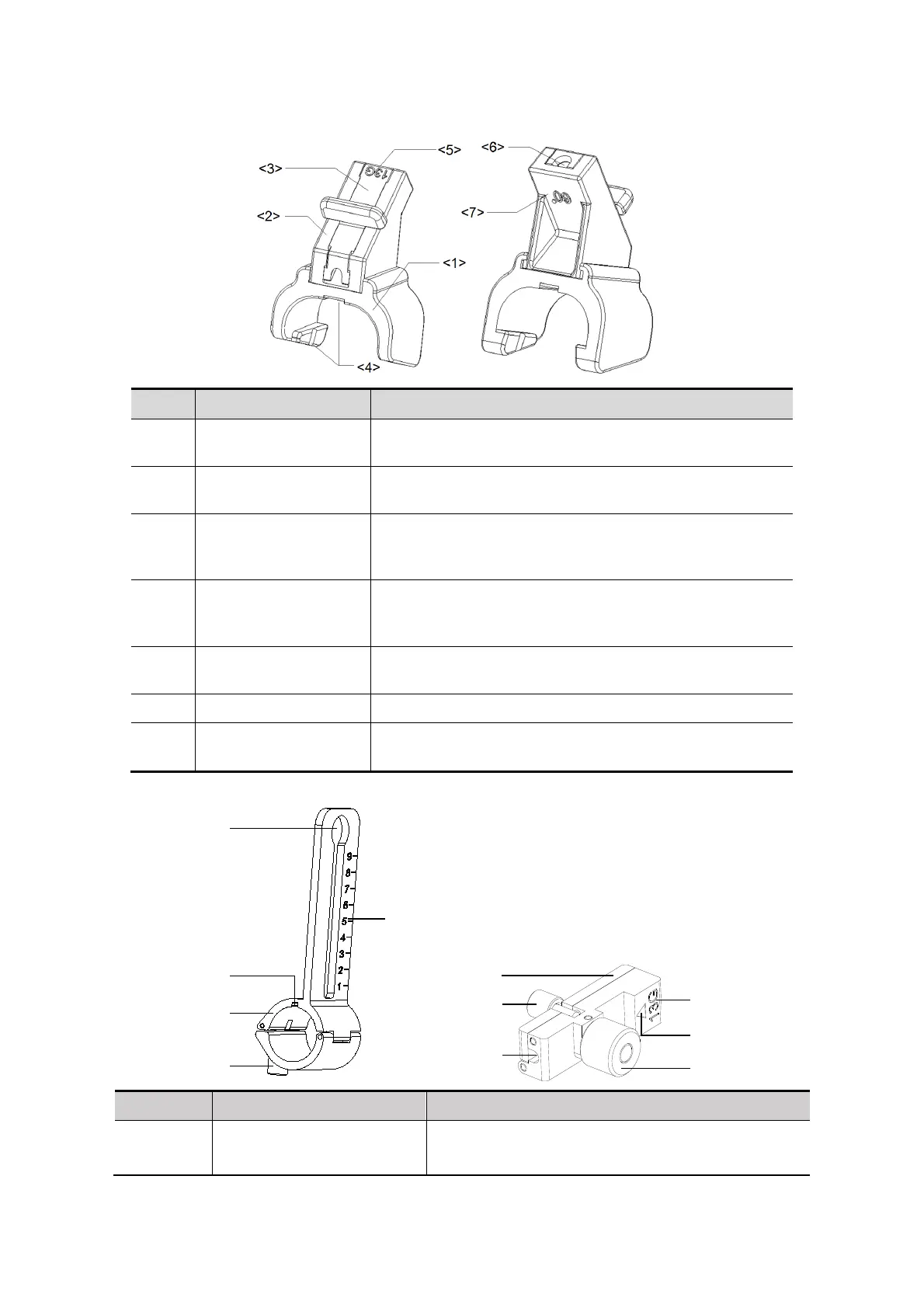

<1>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the
transducer
<2> Angle block
Used for determining the angle of the biopsy; there are
three specifications of blocks of angle
<3> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles
<4>
Groove and tab of the
needle-guided
bracket
Respectively matched with the tab and groove of the
transducer
<5>
Specification of
guiding block (13G)
Matched with the corresponding biopsy needle (13G)
<6>
Needle guide hole
Used for installing the biopsy needle
<7>
Specification of angle
block (60°)
Corresponding to the size of the biopsy angle (60°)
 NGB-009
5
1
2
3
4
10
6
7
8
9
11
No.
Name
Description
<1>
Support of
needle-guided bracket
Used for installing the needle-
guided bracket on
the transducer.
