Probes and Biopsy 13-25
No.
Name
Description
<2>
Knob of fixing needle-
guided bracket
Used for fixing the needle-guided bracket on the
transducer.
<3> Groove Match with the tab on the transducer.
<4>
Hole for installing guiding
block
Used for installing the knob of fixing needle-guided
bracket.
<5> Needle distance scales
Indicate
distance between needle and the
transducer head surface.
<6> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different
needles.
<7> Knob of fixing the needle Used for fixing the needle.
<8> Guiding hole of the needle Used for installing the biopsy needle.
<9>
Specification of guiding
block
Matched with the corresponding biopsy needle.
<10> Mark of indicating scales Indicating needle distance scales.
<11>
Knob of fixing the guiding
block
Used for fixing the guiding block.

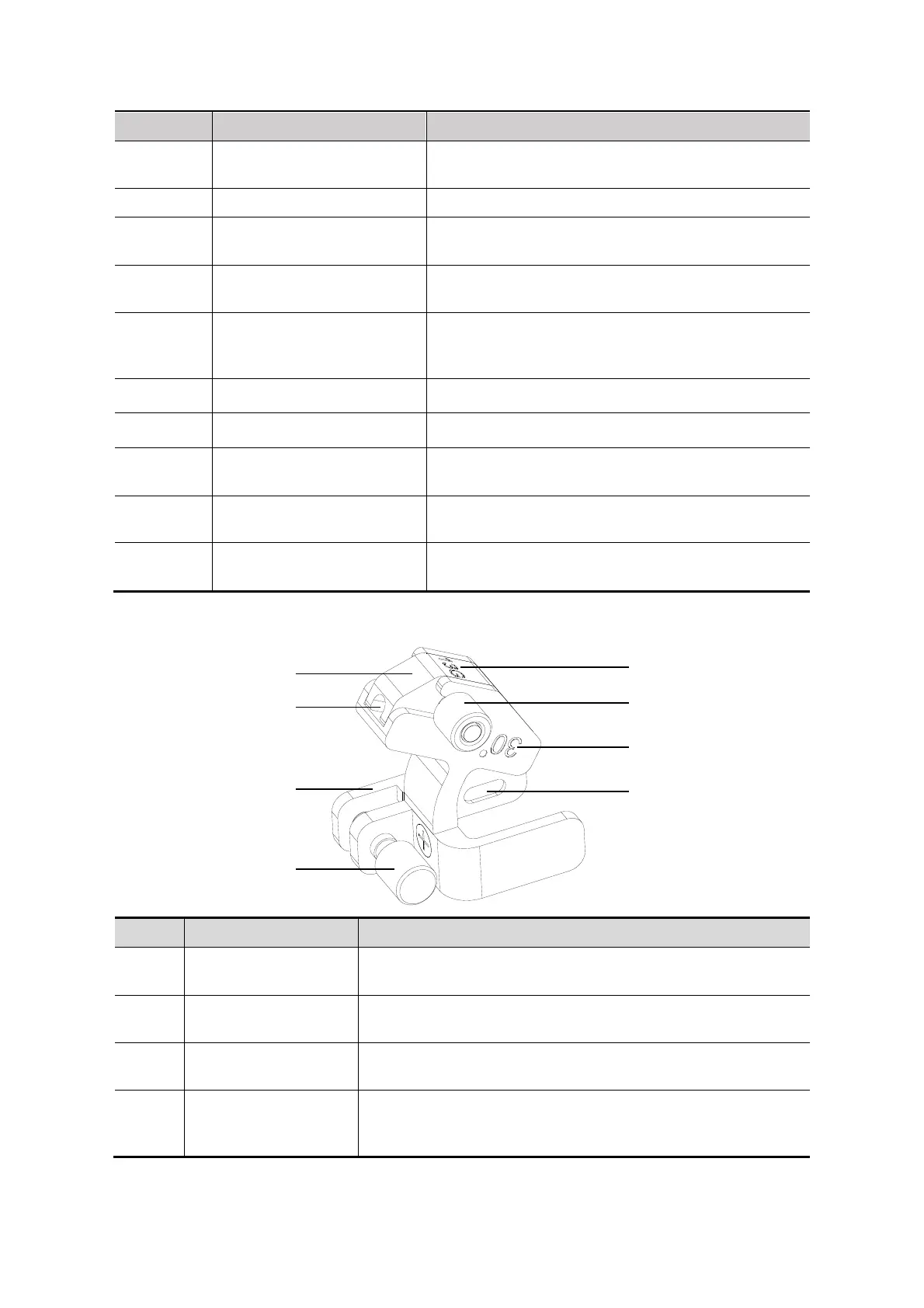

 NGB-010 (Metal/needle detachable)
5
1
2
3
4
6
7
8
No.
Name
Description
<1> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy needles.
<2>
Guiding hole of the
biopsy needle
Used for installing the biopsy needle.
<3>
Support of needle-
guided bracket
Used for installing the needle-guided bracket on the probe.
<4>
Knob of fixing
needle-guided
bracket
Used for fixing the needle-guided bracket on the probe.
