13-30 Probes and Biopsy

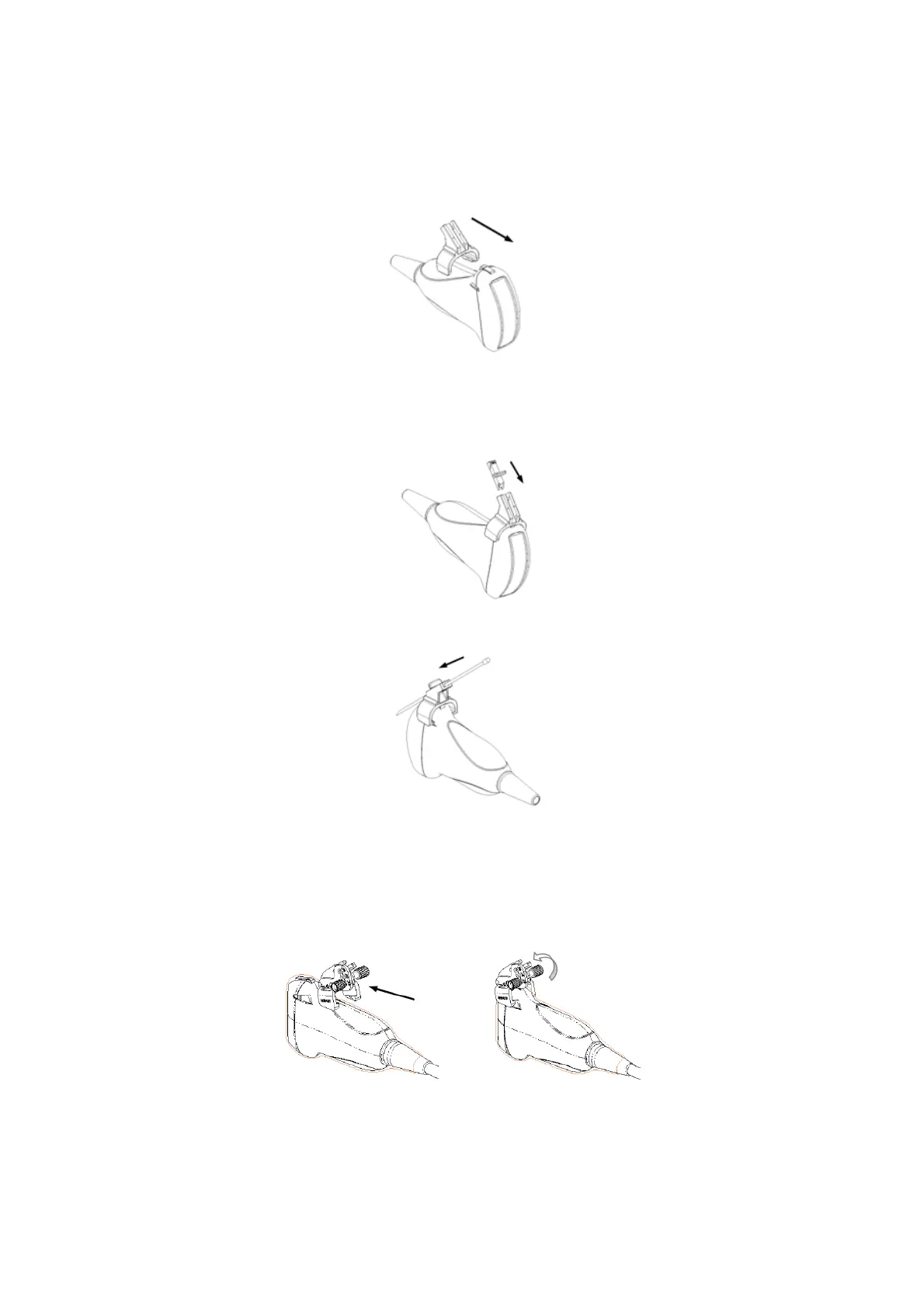

(2) Hold the transducer by one hand, select proper needle-guided bracket, and hold it
with the other hand, and align the narrow end of tab of the needle-guided bracket
with the groove of the transducer, then push the needle-guided bracket forward,
making the tabs and the groove of the needle-guided bracket to match with the
grooves and tab of the transducer.
(3) Check manually to confirm that the needle-guided bracket is securely installed on the
transducer.
(4) Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
(5) Insert a biopsy needle with the same specification as that of the guiding block into the
hole of the guiding block.
NGB-007
Metal
1) Put on the sterile transducer sheath.
2) Hold the transducer by one hand, select the proper needle-guided bracket, and
hold it with the other hand. Match the groove and tab with the tab and groove of
the transducer respectively. Amount the bracket onto the transducer.
3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-
guided bracket is properly installed on the transducer.
4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
