Mindray Z60T User Manual

Probes and Biopsy 13-31

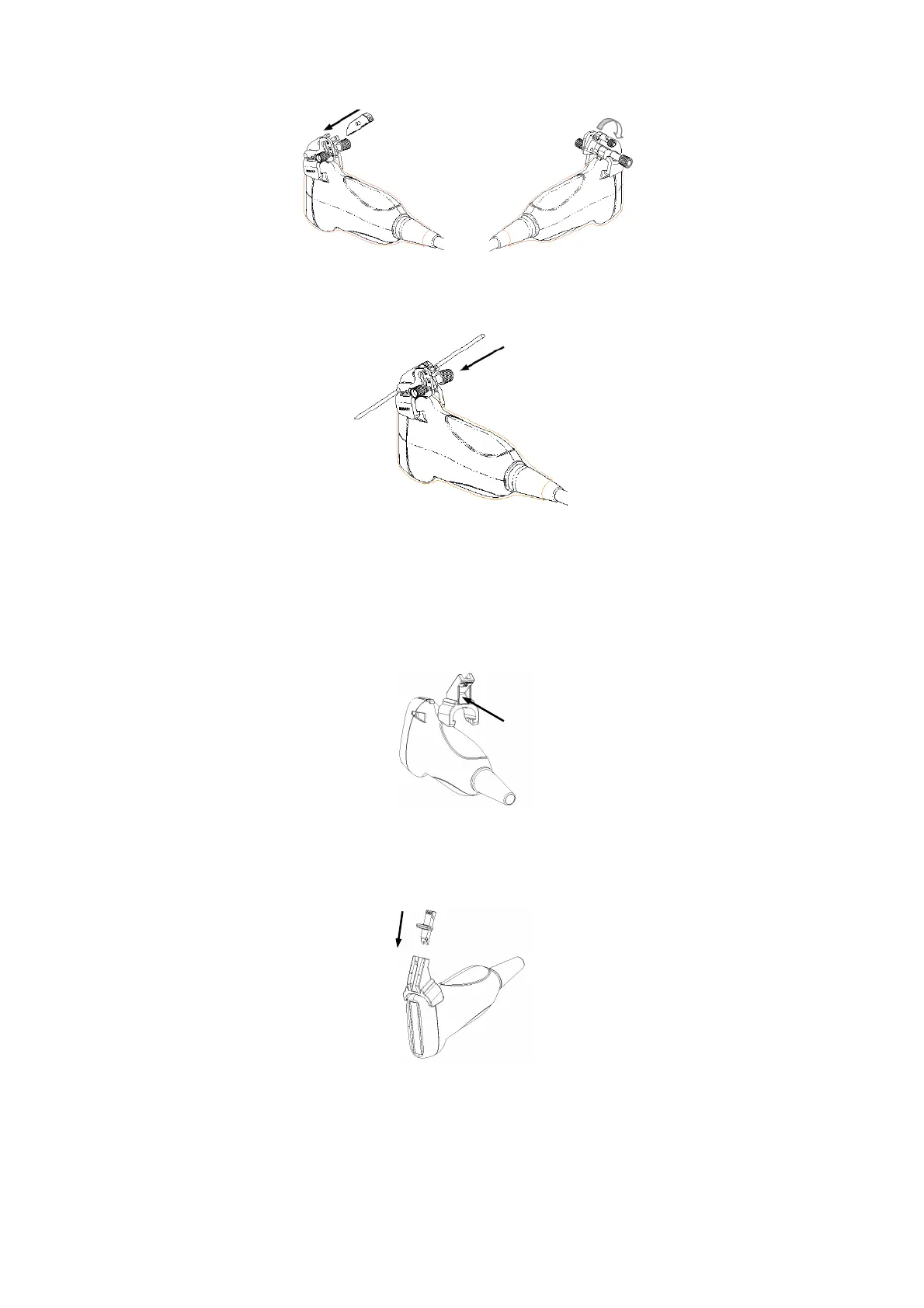

5) Screw the nut of the block to secure the block.
6) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.

Plastic
1) Put on the sterile transducer sheath.
2) Hold the transducer by one hand, select proper needle-guided bracket, and hold
it with the other hand. Align the narrow end tab of the needle-guided bracket with
the groove of the transducer, then push the needle-guided bracket forward,
making the tabs and the grooves of the needle-guided bracket to match with the
grooves and tabs of the transducer.
3) Check manually to confirm that the needle-guided bracket is securely installed
on the transducer.
4) Select a proper guiding block and push it into the groove above the angle block,
and clamp it tightly.
5) Insert a biopsy needle with the same specification as that of the guiding block
into the hole of the guiding block.
