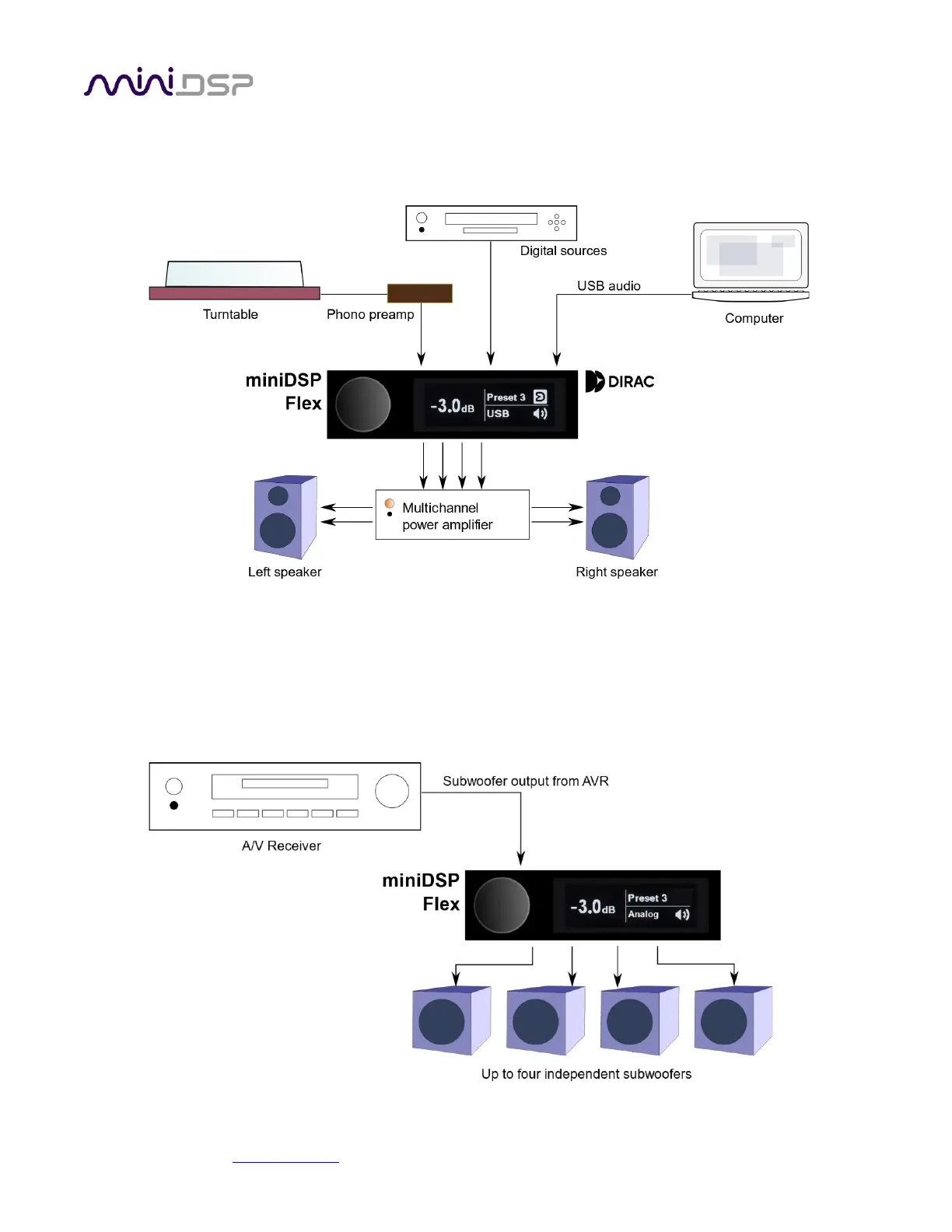

Figure 2 illustrates a similar use of the Flex as a digital preamp, but the output channels have instead been
configured to act as crossover for a pair of active 2-way speakers. Amplification can be via a multichannel power
amplifier as shown, or a pair of stereo amplifiers.
In Figure 3, the miniDSP Flex has been used as an accessory in a home theater system, to manage multiple
subwoofers. Driven from the A/V receiver’s subwoofer output, the miniDSP Flex can be used to independently
adjust gain, delay and parametric EQ of each subwoofer for optimum multi-sub performance.
Figure 3. miniDSP Flex for multisub management
Figure 2. miniDSP Flex used as preamp, active crossover and room correction
