Chapter 1. Machine Setup 1-
9

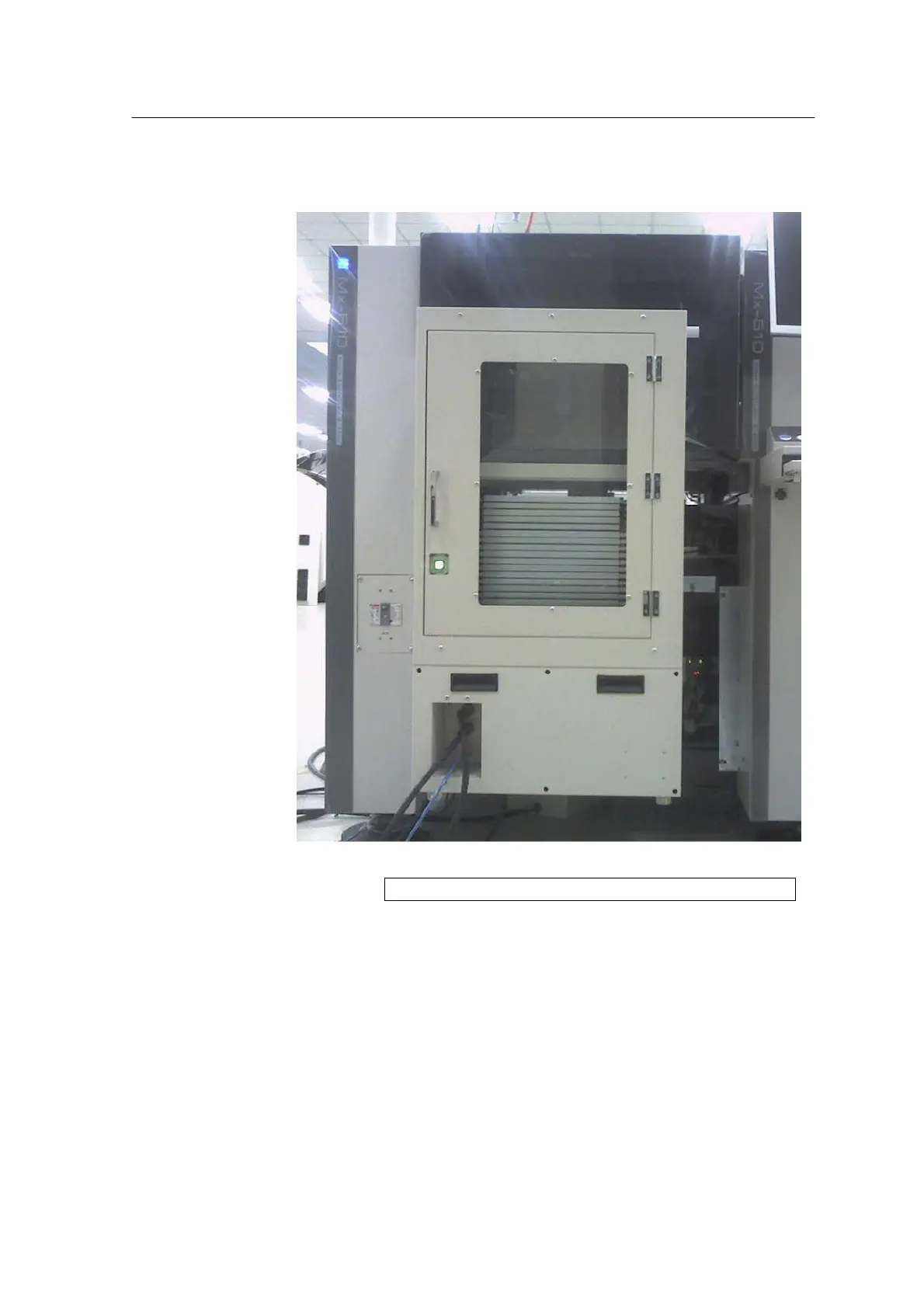

The figure below shows the connected cables.
MX-Series Machine equipped with TF5
Check list for setup
1. Power connection
Since the Tray Feeder is powered by the Mounter, connect the two
connector cables provided by the Tray Feeder to the PWR/SIG
connectors.
2. Assemble the Tray Feeder to keep the edge of the Clamping Base
and the Mounter X Axis horizontal to within 0.1mm.
To Next Page
