1-10 TF5 Manual (Tray Feeder Operation Manual)
TRAY FEEDER DATA

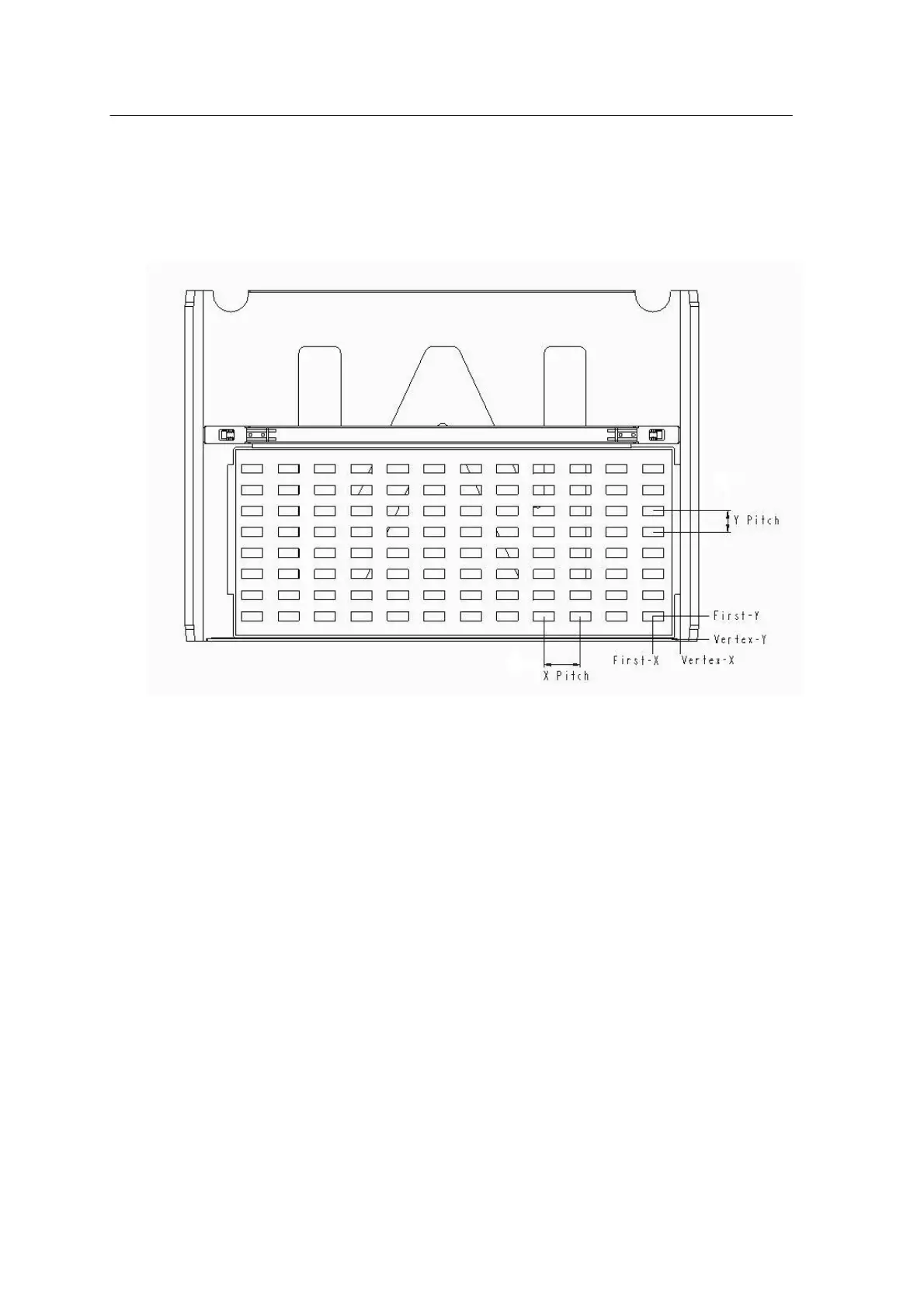

<Figure 1-4ᆞ Tray Feeder Data >
TRAY FEEDER SETUP
1. Y-Axis Offset
Extract the pallet from the magazine and take the offset value as the
location where the nozzle end is aligned to the Vertex Y as shown in
<Figure 1-4>.
Y-Axis Origin Offset
= Y Axis Origin Offset + {0.0: Current position(Vertex Y Position)}
2. Z-Axis Offset
Take the offset value as the height of the Z axis when the
first pallet smoothly moves on the Y-axis discharging unit. Z-
Axis Origin Offset
= Z Axis Origin Offset + {0.0: Current position(First Pallet Position)}
