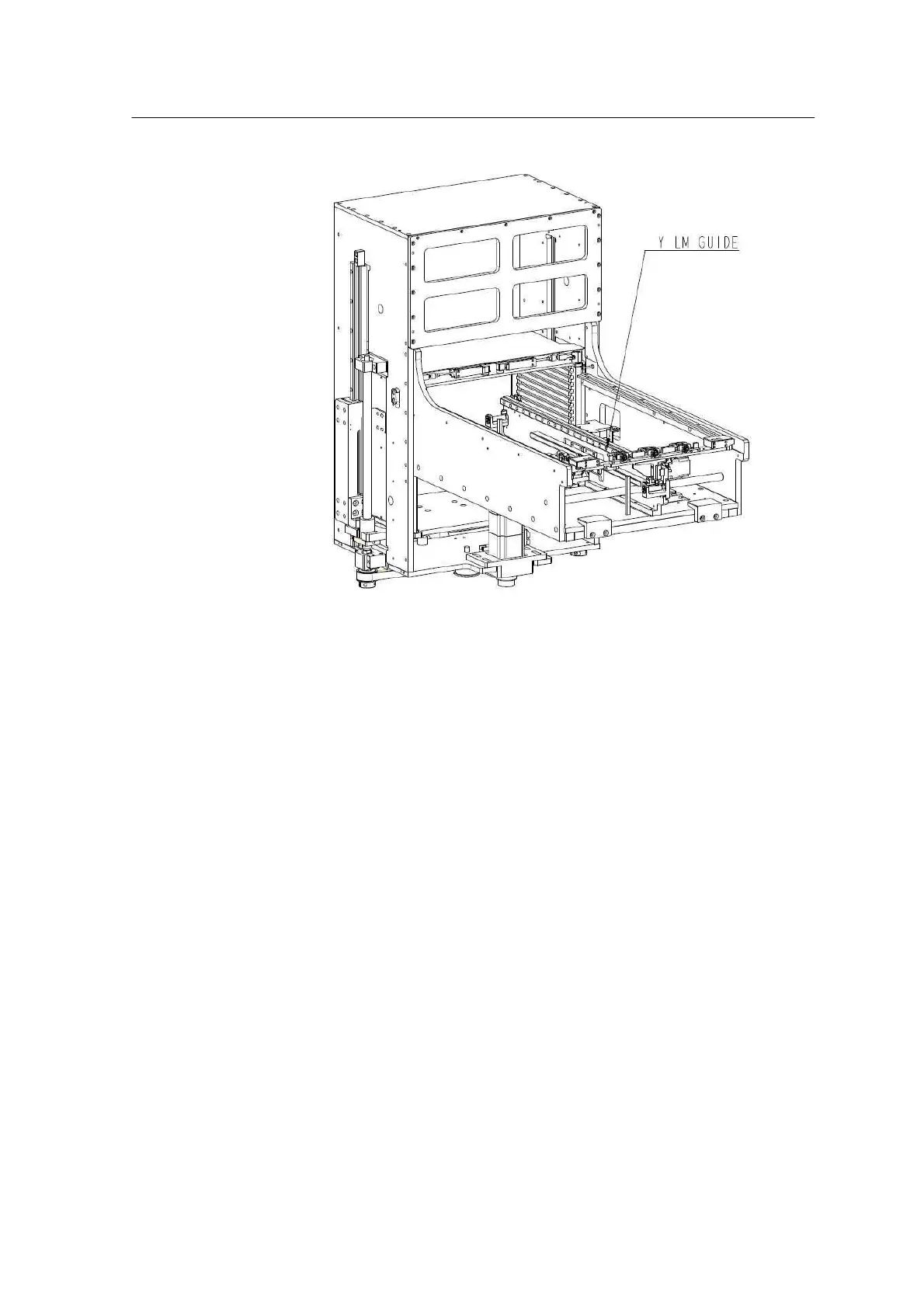

<그림 2-10 가 Y-axis LM Guide>
Maintenance of the Y-axis LM Guide should be done as follows:
1. Turn off the power of the machine.
2. Manually move the Carrier Arm to the pallet loading position of the
magazine.
3. Wipe the grease and dust from the LM Guide with a clean cloth.
4. Manually move the Carrier Arm to the end of Mounter Picking
position.
5. Wipe the grease and dust from the LM Guide with a clean cloth.
6. Fill grease through the grease inlet of the LM Guide Block.
7. Wipe the grease flowing out of the LM Guide Block.
