FleX-Net
TM
Installation and Operation Manual
31
FNC-2000 Fire Network Controller Module
An FNC-2000 Fire Network Controller module is required in each fire alarm node in the system. The FNC-2000 also
provides a connection for an optional FOM-2000-SP Fiber Optics Module.

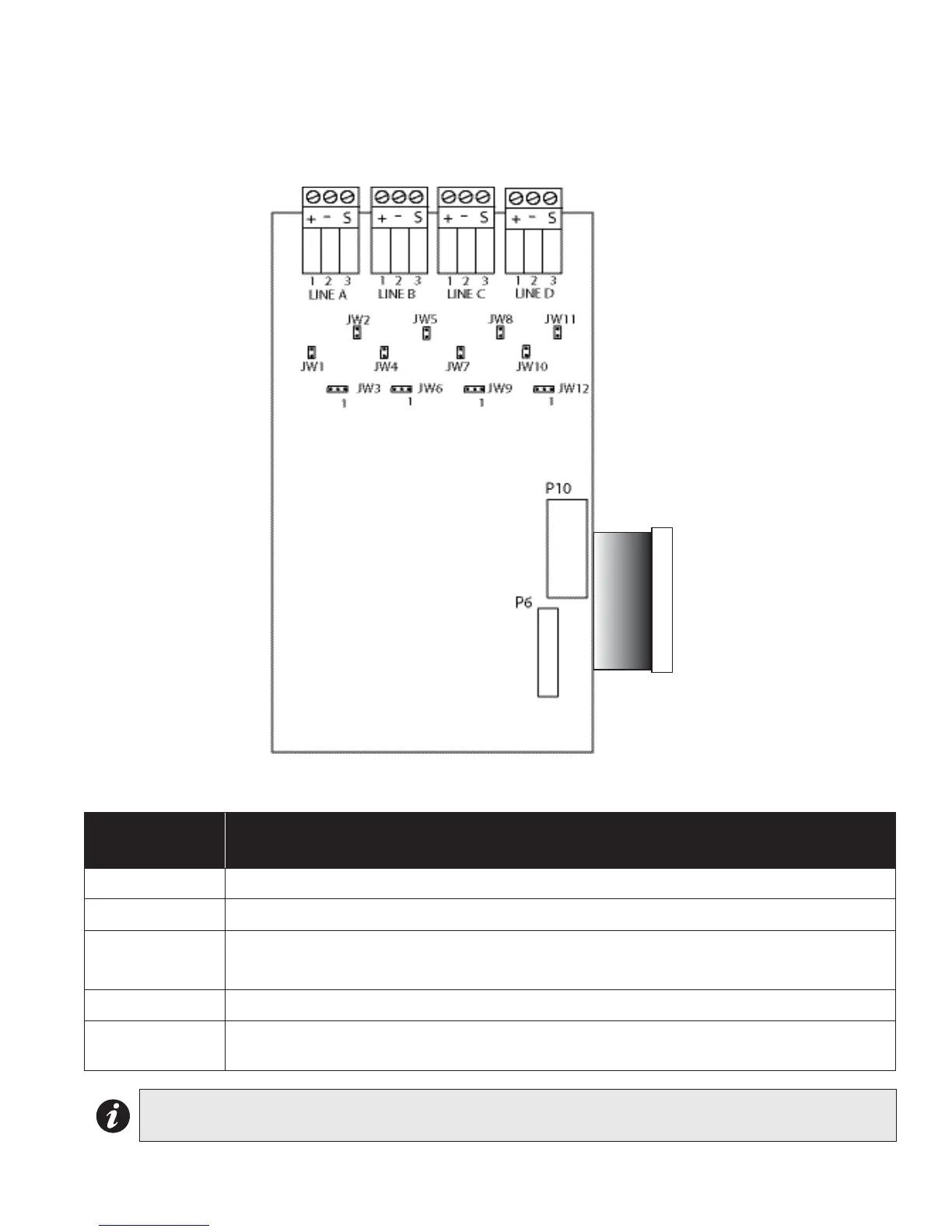

Figure 15: FNC-2000 Fire Network Controller Module
Table 1: FNC-2000 Module List of Connectors and Jumpers and Functions
CONNECTOR
OR JUMPERS
Function
P6 P6 is for Factory Use Only.
P10 P10 connects to P1 of the FOM-2000-SP Fiber Optic Network Adder Module if used.
JW1, JW2, JW4,
JW7, JW8, JW11
Jumpers for JW1, JW4, JW7, and JW10 equal Line Termination (always short).
Jumpers for JW2 and JW8 equal Ground Fault (always short).
JW5 and JW11 Leave both un-installed. Do not connect JW5 or JW11 (open)
JW3, JW6, JW9,
JW12
Jumpers for JW3, JW6, JW9, JW12 shall be present between pins 1 and 2 (far right) and
remain as is.
Note: Network connection is through twisted cable from Line A, B, C and D. Refer to Figure 37 for specific
wiring and cable information.
This cable
connects to
P19 on the
FX-200X-XN
Main Fire
Alarm Board
To Next Page
