QX-5000 Series Installation and Operation Manual
9
Mechanical Installation
Audio cabinets are mounted as shown in Figure 4 below. The QBB-5001 is the backbox and door. The QBB-
5001TR is the flush trim. Install all cabinets and enclosures empty. Pull all required wiring in through the conduit
holes provided (must be punched out). Do not mount the modules until mechanical installation is complete and all
wires have been fed into the cabinets and enclosures.

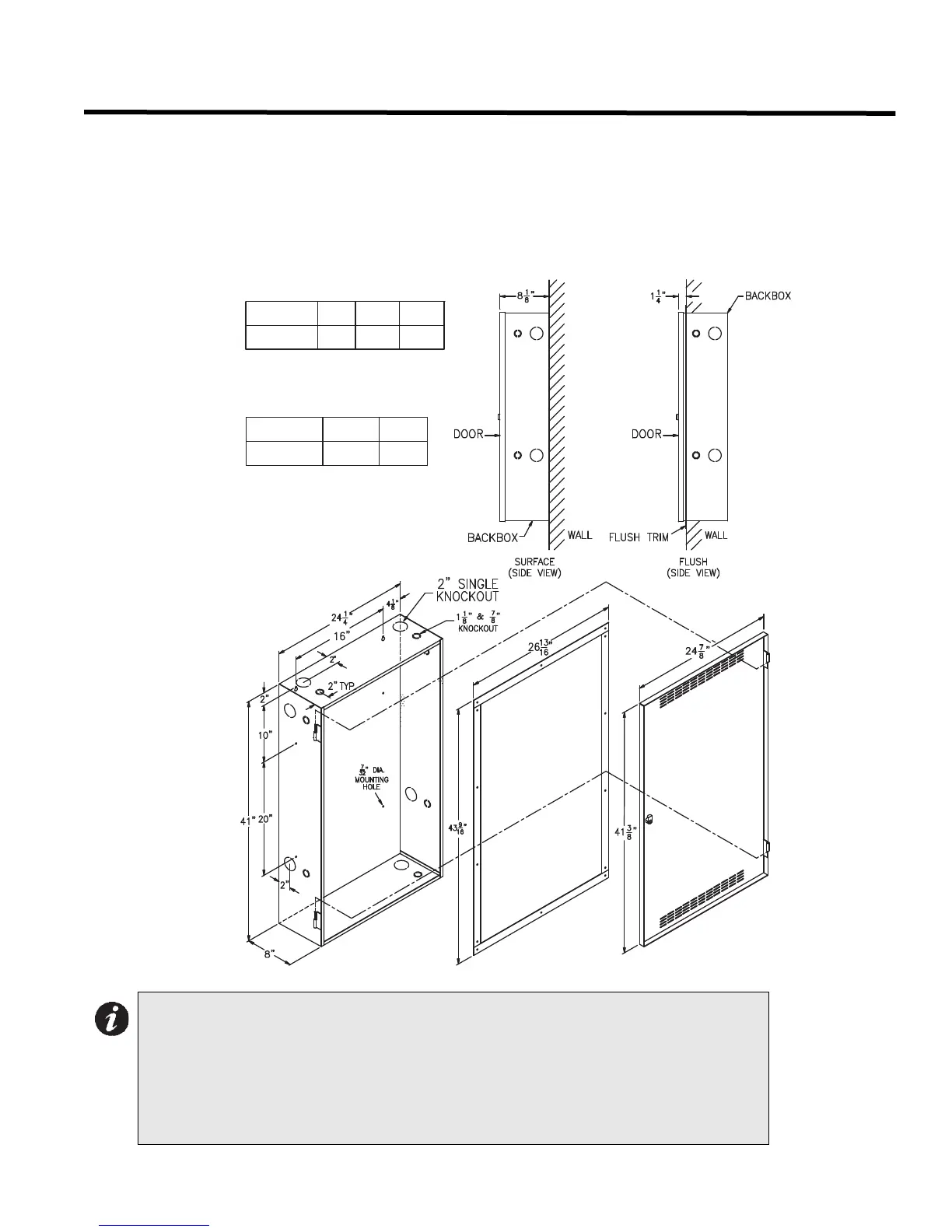

Figure 4: Audio Cabinet Mechanical Installation
Notes:
• It is extremely important to connect the audio cabinets earth-ground point (chassis
ground) to the earth ground (cold water pipe).
• The power supply mounts on the bottom left-hand corner of the backbox and the
batteries are placed on the bottom to the right of the power supply. Conduits should
be brought in only through the conduits provided at the bottom right hand corner of
the cabinet.
1""
-!4%2)!,'!#23
&).)3(0!).4%$/&&7()4%
%.#,/352%
7)$4(
(%)'(4
$%04(
&,53(42)-7)$4((%)'(4
1""42
-!4%2)!,'!#23
&).)3(0!).4%$/&&7()4%
$//2
-!4%2)!,'!#23
1""42
&,53(42)-
"!#+"/8
