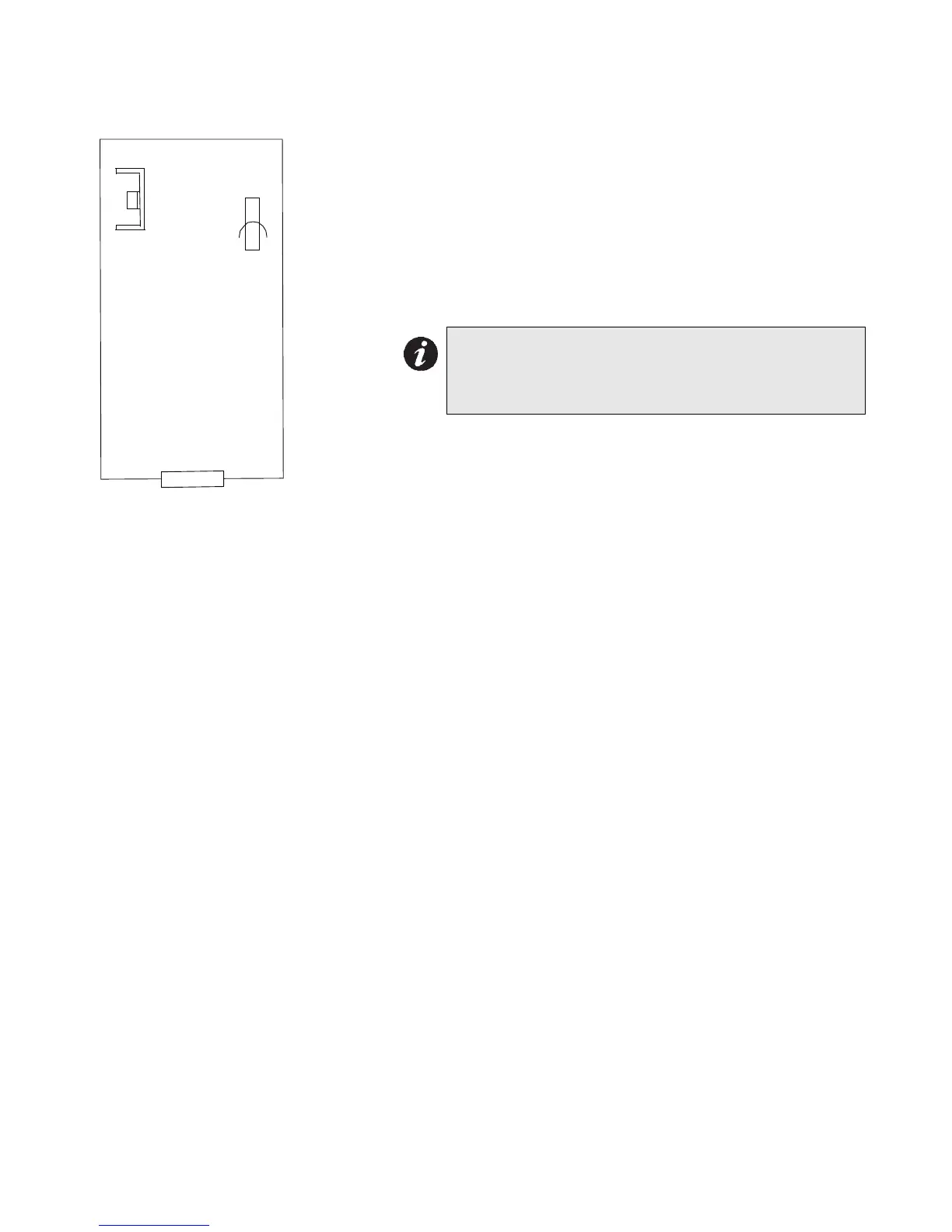

Figure 14: Using a Speaker Isolator
QAA-5415-70/25 AMPLIFIER
CUT JU MPER OVER U3 WH EN
USING A SPEAKER ISOLATOR
1
8
JUMPER
U3
Note: When using a speaker isolator (SIS-204 or SISA-
204 for use in Canada only), jumper JP1 (top left-
hand corner, component side) must be cut on the
QAA-5230-70/25 and on the QAA-5160-70/25.
