Mircom QX-5000 Series - Part 5: Multi-Building Paging Control

QX-5000 Series Installation and Operation Manual
63
The QIF-1000 Interface board enables All Call paging for multiple building applications using the QX-5000. Set
ALL DIP switches of SW1 to the ON position for Master operation or set ALL DIP switches of SW1 OFF for slave
operation of this interface board.

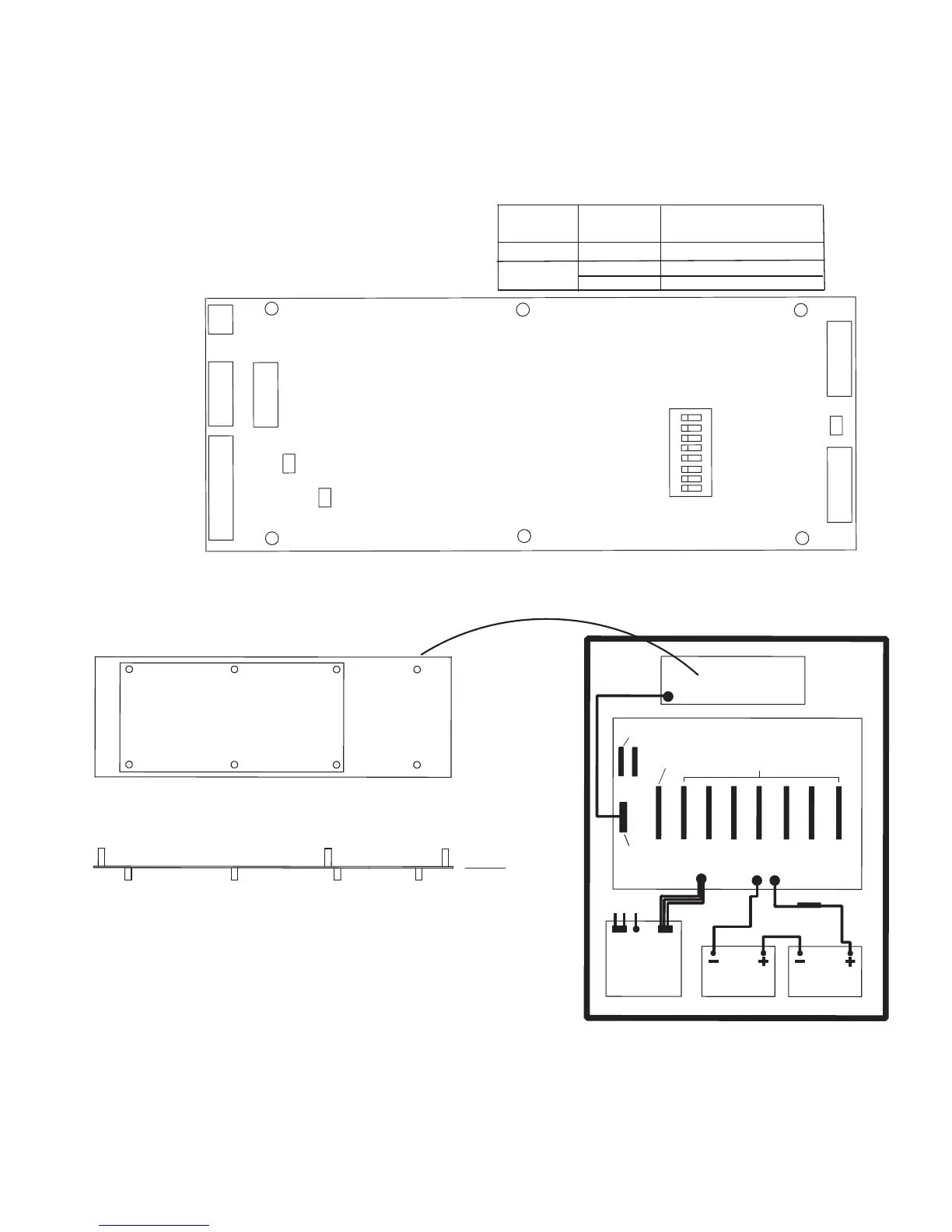

Figure 39: QIF-1000 Interface Board.
Figure 39: Mounting the QIF-1000 Interface Module
The QIF-1000 Interface module comes already mounted onto a CH-559 Plate. The CH-559 mounts onto the QBC-
5000B battery charger cover located above the amplifiers in the audio cabinet of the QX-5000 Audio system. The
QBC-5000B must be removed and the QIF-1000, and its plate is mounted onto the QBC-5000B with four #4 screws
behind the QBC-5000B cover. The whole assembly is then mounted back into the audio cabinet over the battery
charger.
1
2
3
4
5
6
7
8
SW1
J1
J2
JW2
V+
V+
SEL0
AOUTS
AOUT+
AOUT-
AIN+
AIN-
AINS
AINS
AIN+
AIN-
RS485+
RS485-
SHIELD
SHIELD
RS485+
RS485-
AUDIO2
AUDIO1
SHIELD
SHIELD
AUDIO2
AUDIO1
ON
JW1
JW3
POWER RATING:
INPUT VOLTAGE = +24V
CURRENT = 65mA (ACTIVE AND STANDBY)
20, 18 or 16 4000 FT
20 2500 FT
18 or 16 4000 FT
WIRING TABLE FOR QIF-1000
WIRE GAUGE
MAX OVERALL LENGTH (FT)
NUMBER OF
QIF-1000s
1 to 5
6 to 7
TOP VIEW
FRONT VIEW of CH-559 PLATE
BACK OF
PLATE
FRONT OF
PLATE
12 VDC BATTERY
12 VDC BATTERY
INLINE FUSE
- BATTERY +
Orange-Yellow-Orange
(MUST BE IN CORRECT ORDER)
XFORMER
SCREW
TERMS
Black
120 VAC INPUT
LIVE / NEUTRAL / GROUND
LUG
IN OUT
SCREW
TERMS
Red
QBC-5000B
BATTERY
CHARGER
CONNECTORS FOR MULTIPLE
QMB-5000B MOTHERBOARDS
SLOT #1
CONNECTOR FOR
QIF-5000B INTERFACE
MODULE
SLOTS #2 - #8
CONNECTORS FOR
QAA- STYLE AMPLIFIERS
CONNECTOR FOR QBC-5000B
BATTERY CHARGER
QPS-5000
POWER SUPPLY
QIF-1000
