QX-5000 Series Installation and Operation Manual
65

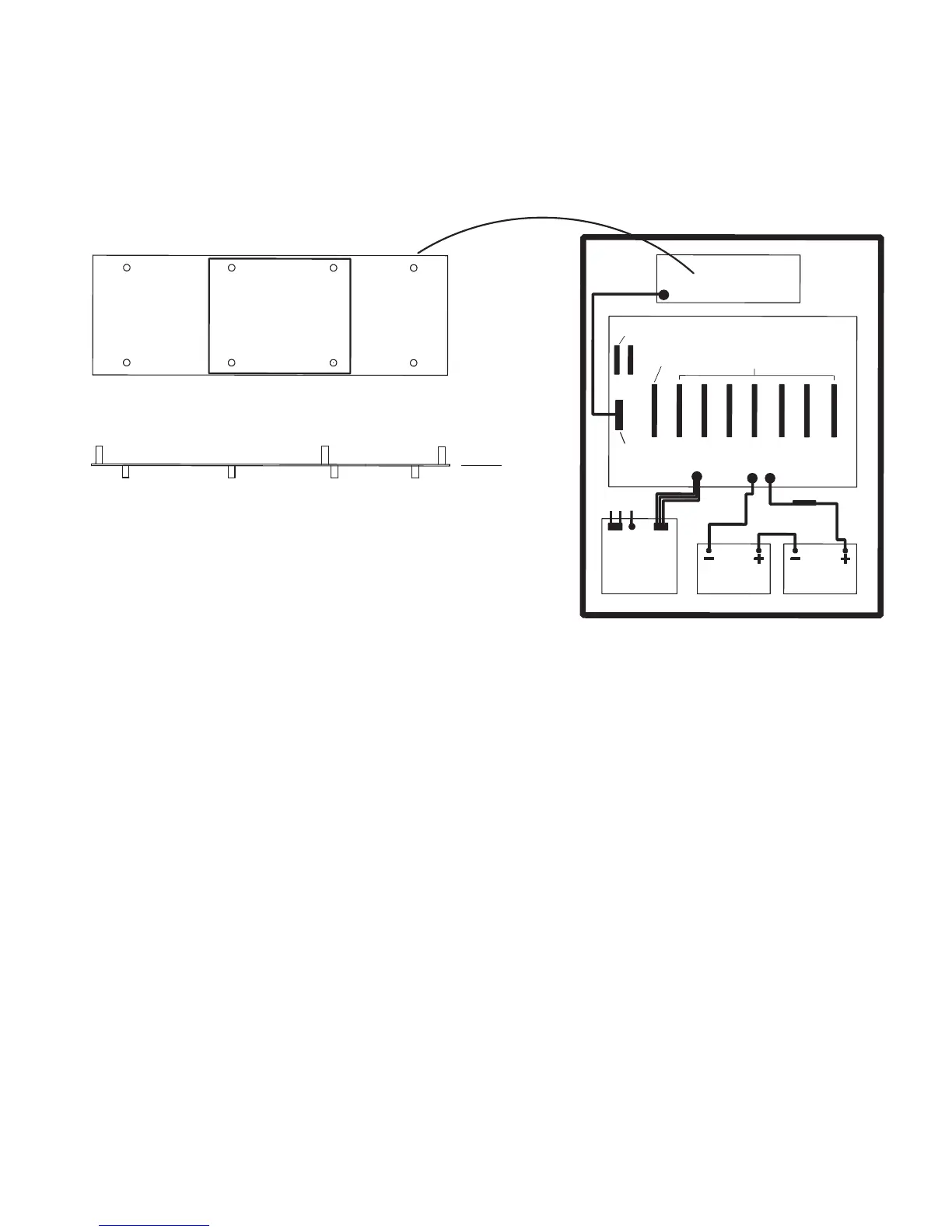

Figure 41: Mounting QIF-2000 Interface Module
The QIF-2000 Interface module comes already mounted onto a CH-559 Plate. The CH-559 mounts onto the QBC-
5000B battery charger cover located above the amplifiers in the audio cabinet of the QX-5000 Audio system. The
QBC-5000B must be removed and the QIF-2000,and its plate is mounted onto the QBC-5000B with four #4 screws
behind the QBC-5000B cover. The whole assembly is then mounted back into the audio cabinet over the battery
charger.
TOP VIEW
FRONT VIEW of CH-559 PLATE
BACK OF
PLATE
FRONT OF
PLATE
12 VDC BATTERY
12 VDC BATTERY
INLINE FUSE
- BATTERY +
Orange-Yellow-Orange
(MUST BE IN CORRECT ORDER)
XFORMER
SCREW
TERMS
Black
120 VAC INPUT
LIVE / NEUTRAL / GROUND
LUG
IN OUT
SCREW
TERMS
Red
QBC-5000B
BATTERY
CHARGER
CONNECTORS FOR MULTIPLE
QMB-5000B MOTHERBOARDS
SLOT #1
CONNECTOR FOR
QIF-5000B INTERFACE
MODULE
SLOTS #2 - #8
CONNECTORS FOR
QAA- STYLE AMPLIFIERS
CONNECTOR FOR QBC-5000B
BATTERY CHARGER
QPS-5000
POWER SUPPLY
QIF-2000
