QX-5000 Series Installation and Operation Manual
15
QIF-5000B Wiring

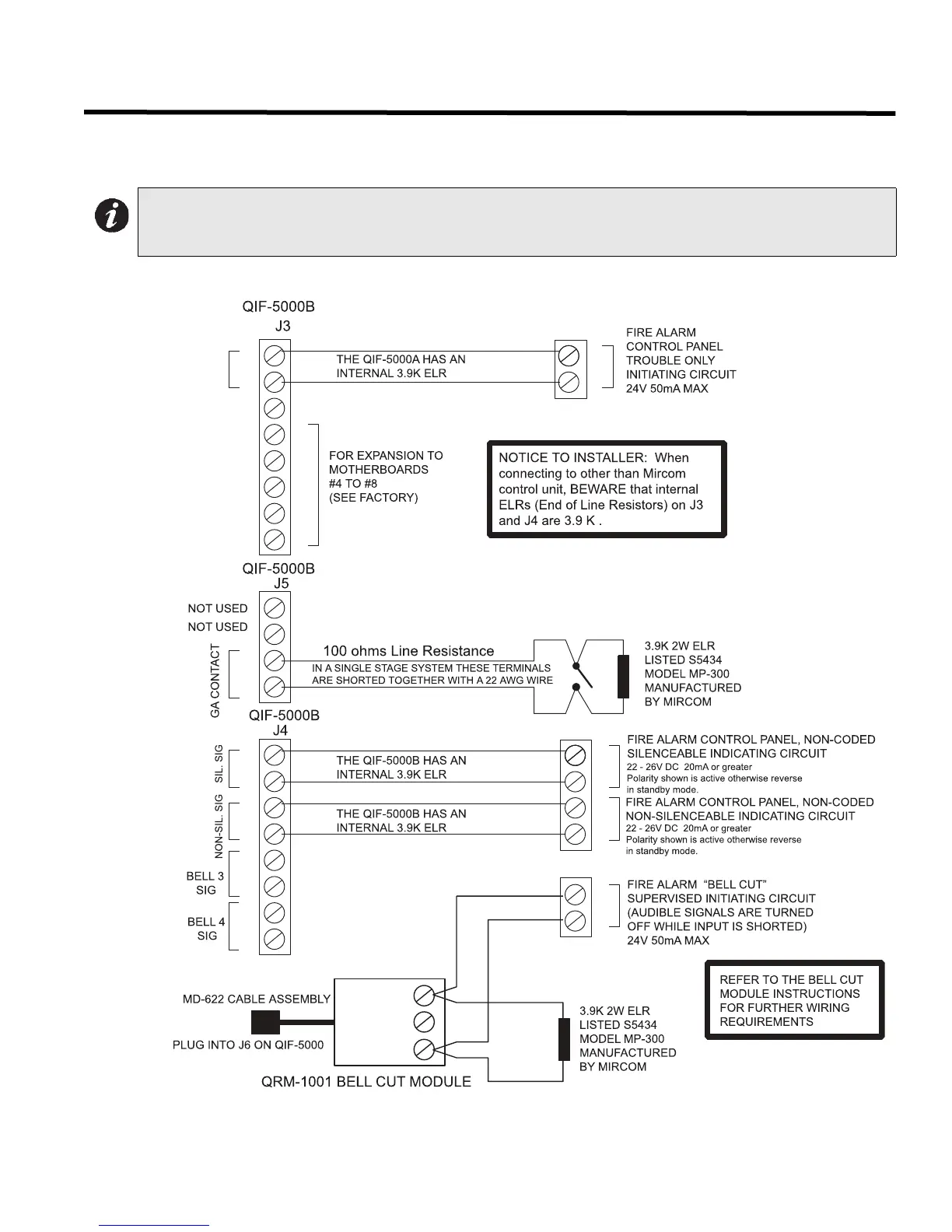

The QIF-5000B Interface Module wiring to the fire alarm control panel is shown in Figure 8 below.
Figure 8: QIF-5000B Wiring
The QIF-5000B wiring to the QMP-5100B and QMP-5101B Paging Master is shown in Figure 28.
Note: The Internal 3.9K Ohm ELR's on J3, J4, and J5 may not be compatible with other manufacturers'
control units. Consult Mircom when connecting control units other than those manufactured by
Mircom.
+
-
1
2
3
4
5
6
7
8
TRO U BLE
1
CO M M
2
3
4
5
6
7
8
+
-
1
-
+
2
3
4
NOT USED
CO NTACT
+
-
+
-
+
-
+
-
NC
NO
B
+
-
-
+
J3
Identified by
WHITE LABEL
J4
Identified by
NO LABEL
