QX-5000 Series Installation and Operation Manual
41
Paging Modules
There are two microphone modules available. The QMP-5100B mounts into the BB-1000 series of backboxes. The
QMP-5101B is mechanically different and the display is set up across the top of the module. Electrically they are the
same. The QMP-5101B however mounts into the BB-5008 and BB-5014 only.
QMP-5100B Master Paging Module
The QMP-5100B Master Paging Module has a ribbon cable connection to the first QZP-5101 Zone Module, and
wiring terminals for connection to the QIF-5000B Interface Module in the Audio Cabinet and to the QMT-5300A or
QMT-5302 Telephone Master.
The two DIP Switches, SW1 & SW2 are for configuration. There are no field configurable jumpers or potentiometers
to adjust; these should be left alone with their factory default settings. See also Paging Operation on page 46.

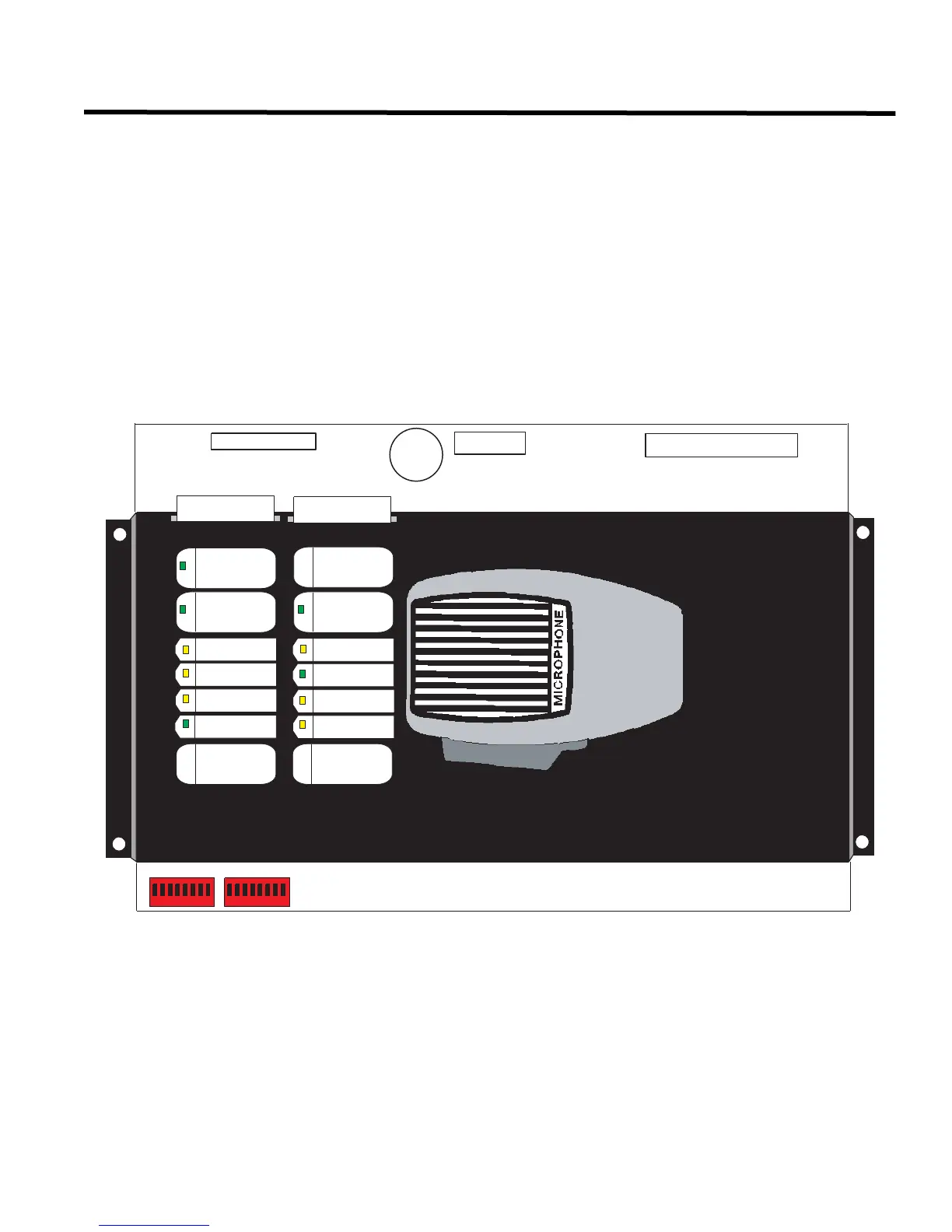

Figure 25: QMP-5100B Master Paging Module
SW1
1
8
ALL-CALL
MINUS
WARDEN
PAG E
ALL-CALL
A.C. ON
COMMON
TROUBLE
CIRCUIT
TROUBLE
AMPLIFIER
TROUBLE
PAGE INHIBIT
REMOTE
FAILURE
MIC
TROUBLE
MIC
LEVEL
LAMP
TEST
RESET
SW2
1
8
DIGITIZED
MESSAGES
