QX-5000 Series Installation and Operation Manual
61
QIF-5000B Configuration Download Procedure
1. Remove the connections J1 and J2 to the paging module (QMP-5100B or QMP-5101) on the QIF-5000B
board.
2. Move the CONFIG jumper, JP5 on the QIF-5000B board to the program enable position between pins 1 and 2.
Press the QX-5000 System Reset button on the QIF-5000B, located just below the CONFIG jumper. Wait until
the green A.C. ON LED starts flashing.
3. Connect the RS-485 IMA to the computer’s COM Port. Connect the ribbon cable end to J9 of the QIF-5000B.
4. Launch application, ‘Audio Configuration Utility’ from the P.C.
5. Proceed with Audio Cabinet Configuration (zone mapping) according to the QX-5000 installation manual and
Audio Configuration Utility Manual (Document # LT-9028).
6. Follow section ‘QDV-1000 Configuration’ in LT-9028 to configure the QDV-1000 settings.
7. From the main system window, under the ‘System’ pane, verified that the option ‘QDV Installed: Yes’ is
present.
8. Once all elements of the audio system have been configured. From the tool bar, hit the ‘send’ button to send
the configuration to the QIF-5000B.
9. Noted that the ‘AC On’ green LED stop flashing and then turns back on solidly, this indicates that the
configuration has been send successfully.
10.Replace jumper JP5 back to its normal position.
New Feature for QX-5000 system with QDV-1000 and Silenceable speaker option
There is a new feature in the QX-5000 audio system to play the ‘Pre-announce Tone’ preceding the alarm signal.
That is to re-sound any previously silenced speakers. To enable the QX-5000 system for this feature, the ‘Alert 2'
I.C. must be installed in U5 socket. The ‘Pre-announce’ tone is also required to be recorded onto the Alert 2
channel.

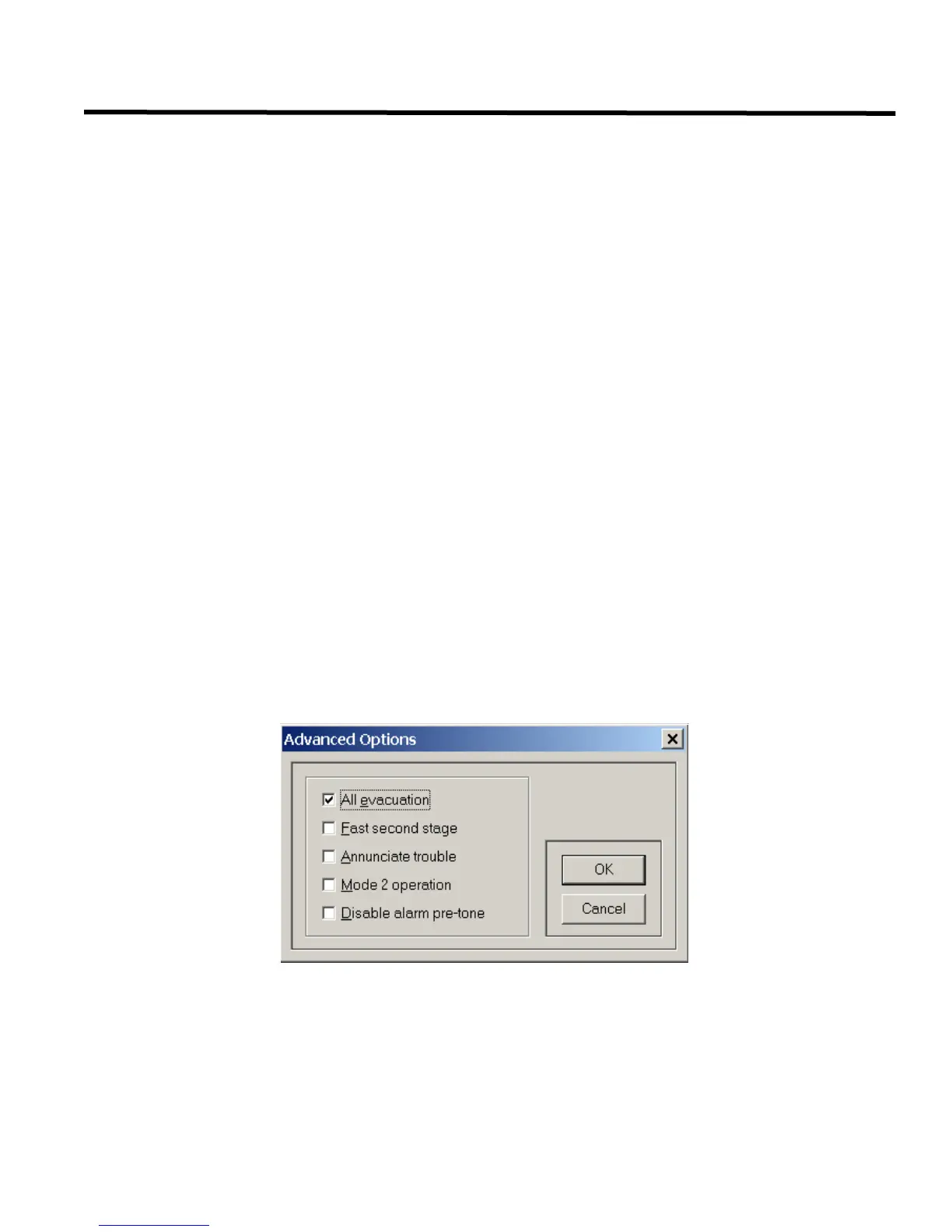

In the Audio Configuration Utility, under the ‘System Configuration’ > ‘Advance Options’ window, verify that the
option box ‘Disable alarm pre-tone’ is not selected.
