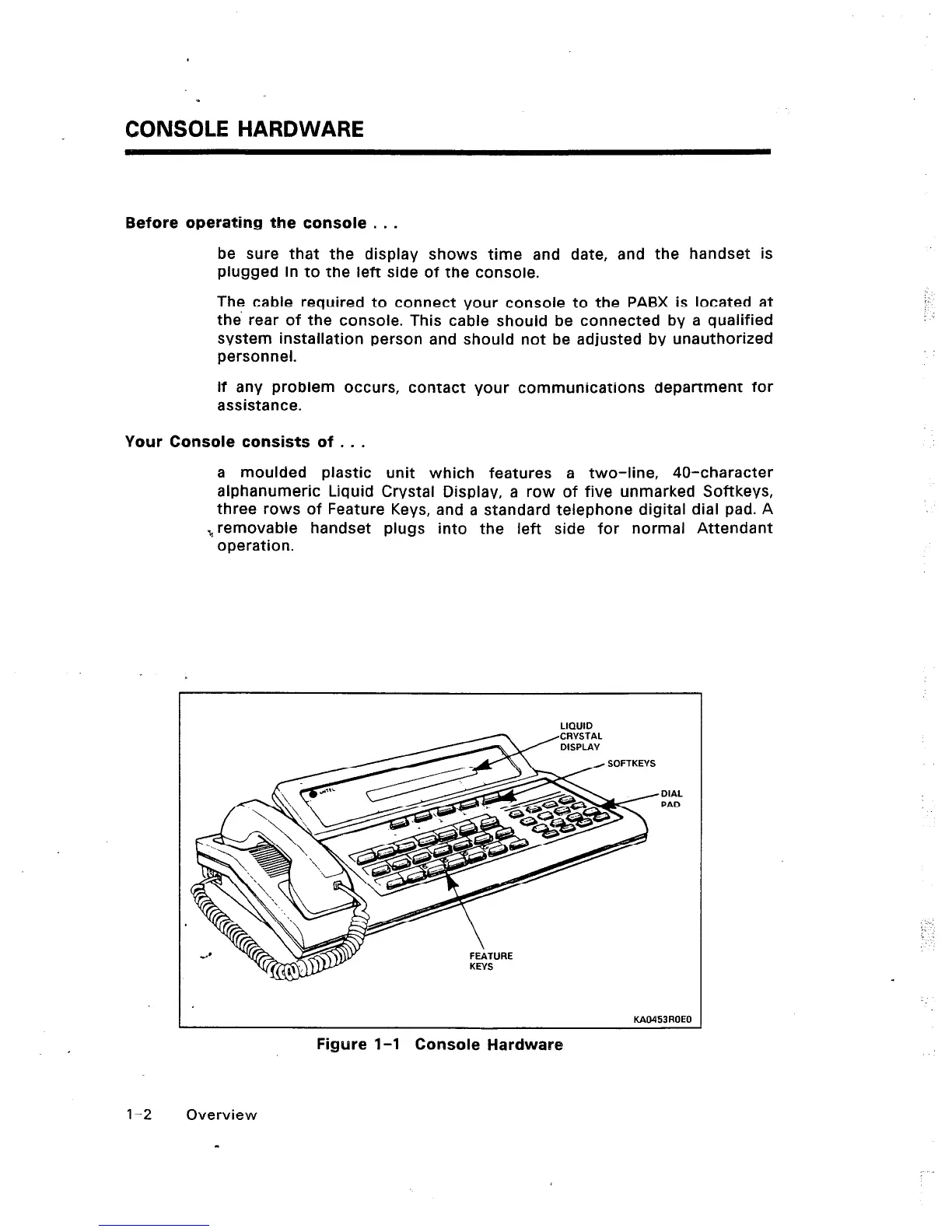

CONSOLE HARDWARE
Before operating the console . . .
be sure that the display shows time and date, and the handset is
plugged in to the left side of the console.
The cable required to connect your console to the PASX is located at
the rear of the console. This cable should be connected by a qualified
system installation person and should not be adjusted by unauthorized
personnel.
If any problem occurs, contact your communications department for
assistance.
Your Console consists of . . .
a moulded plastic unit which features a two-line, 40-character
alphanumeric Liquid Crystal Display, a row of five unmarked Softkeys,
three rows of Feature Keys, and a standard telephone digital dial pad. A
%removable handset plugs into the left side for normal Attendant
operation.
LIQUID
- ,CRVSTAL
KAO453ROEO
Figure l-l Console Hardware
/.
:
l-2
Overview
-
