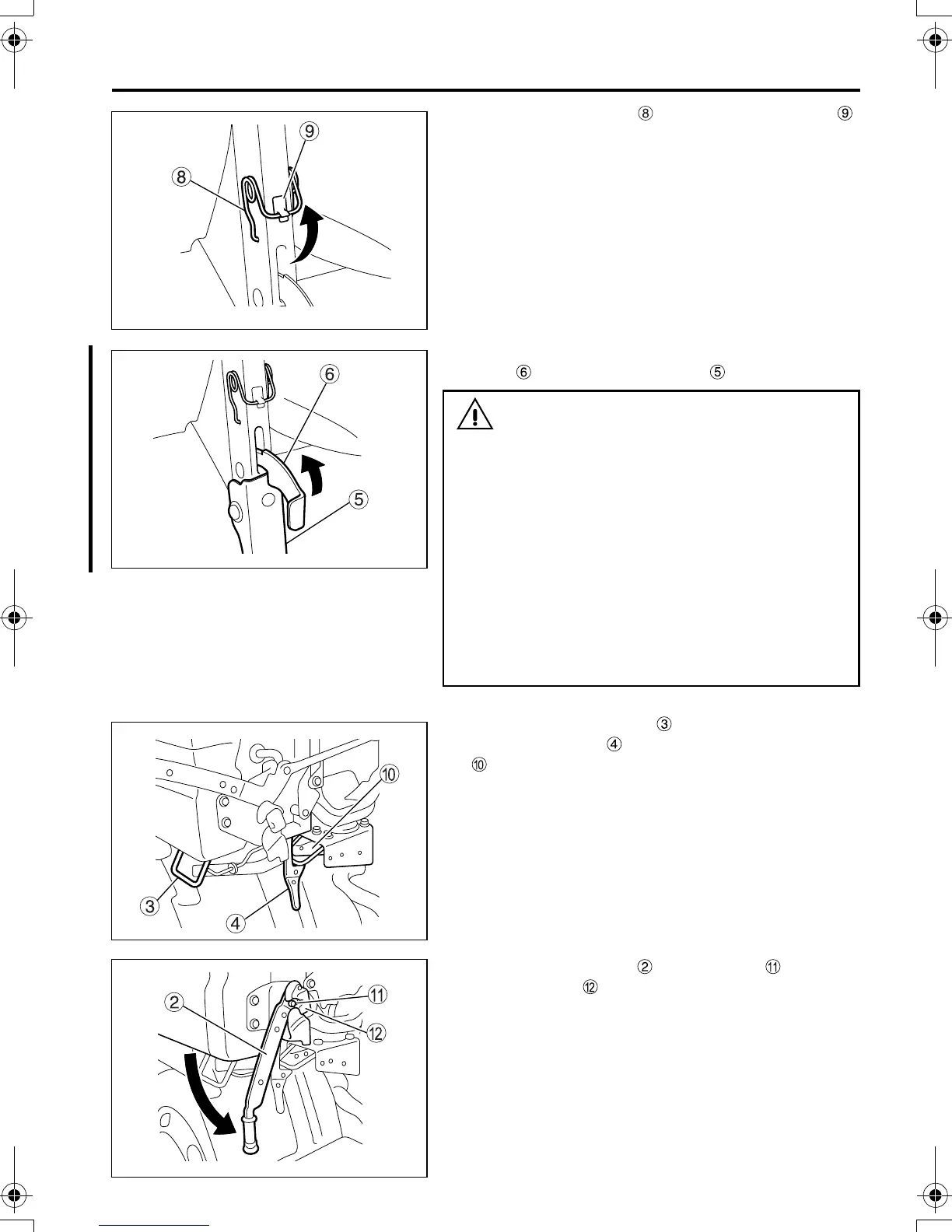

1. Release the stopper and retain it in the clip .
2. Hold the tilt grip to support the cab. Lift the lock
lever and fold the cab stay .
3. Still holding the tilt grip , lower the cab until the
hook on lever C engages with the cab mount
.
4. Push down lever B until the pin engages
with the latch .
WARNING
• When you have unlocked the cab stay,
immediately move your hands away from
the lock lever. The cab stay will tip toward
the rear of the vehicle, so your hands
could otherwise get trapped.
• Do not lower the cab holding lever B or
lever C. Failure to observe this precaution
can lead to the cab-tilt mechanism being
damaged or to incomplete locking of the
lowered cab.
Hold the cab tilt grip when lowering the
cab.
Z11913
Z11914
Z09219
Z09220
