12-46 Simple inspection and service

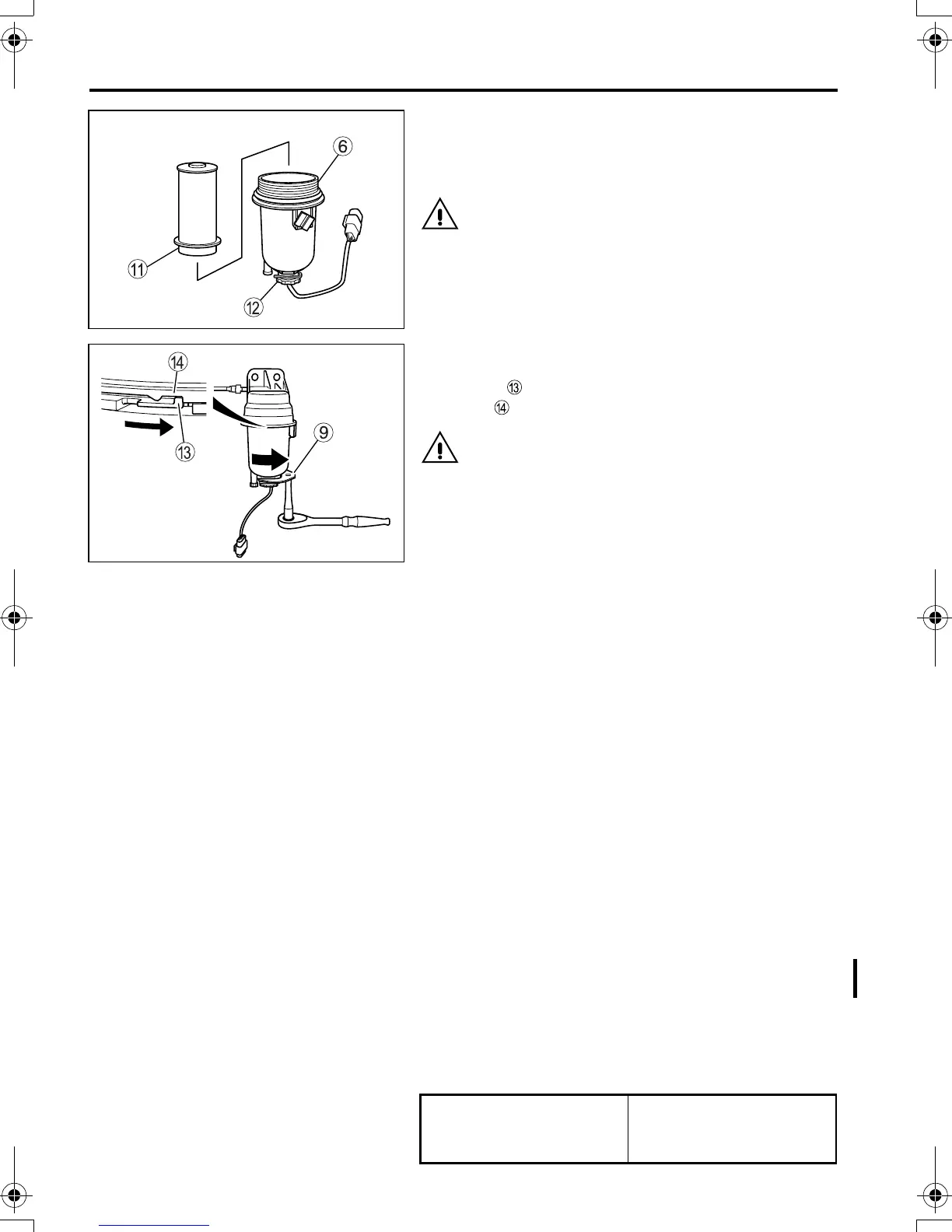

11. Install a new, genuine filter element into the filter
case as shown in the illustration, paying atten-
tion to its direction.
Insert the filter element in a straight line.
CAUTION
Do not reuse the filter element.
12. Install the fuel filter case by turning it clockwise.
Turn the case until it stops. Make sure the pro-
jection on the case is in contact with the filter
head .
CAUTION
• Install the fuel filter case carefully so as not
to twist or damage the O-ring.
• Always check that the fuel filter is in contact
with the filter head. If they are not in contact
with each other, the fuel filter case must
have been turned insufficiently or exces-
sively. In either case, fuel will leak or the fuel
filter case will be damaged.
13. Install the sensor connector to the fuel filter case
and then connect the connector. Do this by fol-
lowing the removal procedure in reverse.
14. Bleed the fuel system. Hold the starter switch in
the “ON” position for 30 seconds to supply the
fuel system with fuel.
15. Start the engine and check that there is no fuel
leakage. There may be some instances where it
takes 30 seconds at maximum to start the
engine.
NOTE:
Air enters the fuel system while replacing the filter
element and will prevent the engine from starting.
When first starting the engine after replacing the fil-
ter element, hold the starter switch in the “ON” posi-
tion for 30 seconds and then return it to the “ACC”
position to bleed air out of the system and then
crank the engine.
3 Air cleaner element cleaning and
replacement
Replacement intervals
Every 30,000 km
(18,000 miles) or every
12 months
Z21460
Z21581
