Mitsubishi Fuso Canter 2013

To Next Page

To Previous Page

13-19

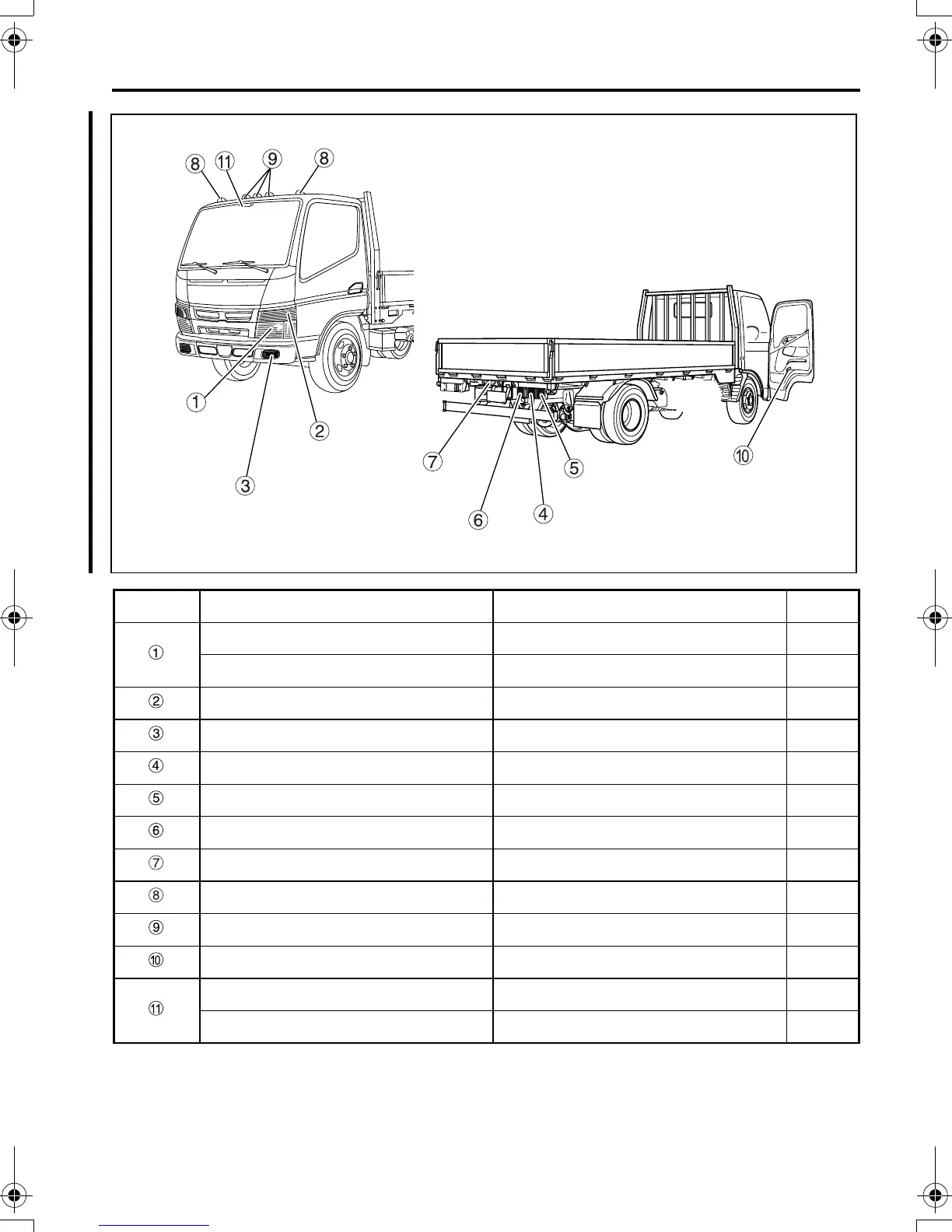

Ref. No. Lamp Bulb wattage (bulb type) Q’ty

Headlamp 12V-60/55W (HB2) 2

Parking lamp 12V-5W (W5W) 2

Front and side turn signal lamp 12V-21W (W21W) 2

Front fog lamp <option> 12V-55W (H3) 2

Stop/tail lamp (double filament) 12V-21/5W (P21/5W) 2

Rear turn signal lamp 12V-21W (P21W) 2

Backup lamp 12V-21W (P21W) 2

License plate lamp 12V-10W (R10W) 1

Clearance and side marker lamp 12V-7.5W (A12V7.5W) 2

Identification lamp 12V-7.5W (A12V7.5W) 3

Step lamp 12V-5W (W5W) 2

Interior lamp <Type 1> 12V-10W 1

Interior lamp <Type 2> 12V-8W 2

Z23270
