2. Installation and setup
No. 99MBA091A
2-7
2.6 Mounting (Replacing) the Eyepiece Unit
Mount the eyepiece unit (a generic name for binocular or monocular unit, protractor
eyepiece, etc.) selected from the optional accessories on the optical tube unit according to
the following procedure:

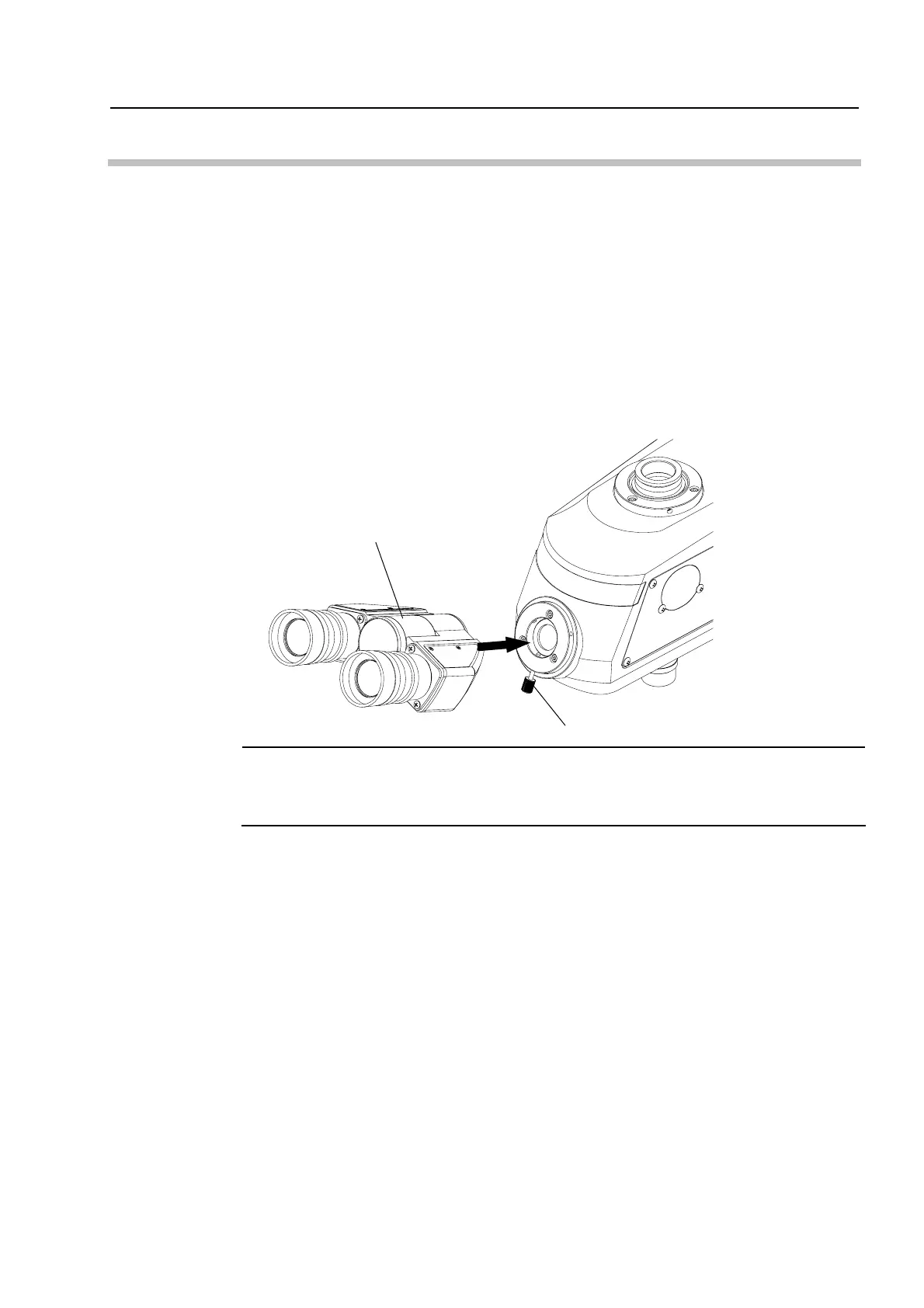

2.6.1 Mounting the binocular unit
① Loosen the optical tube clamp screw while holding the eyepiece unit by hand, then
dismount the eyepiece unit.
(This procedure is not required when setting up the main unit due the eyepiece unit is
not mounted.)
② Loosen the optical tube clamp screw sufficiently to mount the binocular unit.
③ Mount the binocular unit on the optical tube unit, then tighten the optical tube clamp
screw to secure the binocular unit.
NOTE
When attaching or detaching the eyepiece unit, be sure to tighten or loosen the
clamp screw while holding the unit by hand.
If not, the unit may drop, possibly damaging the instrument, or a work piece.
2.6.2 Mounting the monocular unit
① Loosen the optical tube clamp screw while holding the eyepiece unit by hand, then
dismount the eyepiece unit.
(This procedure is not required when setting up the main unit due the eyepiece unit is
not mounted.)
② Loosen the optical tube clamp screw sufficiently to mount the monocular unit.
③ Mount the monocular unit on the optical tube unit, then tighten the optical tube clamp
screw to secure the monocular unit.
2.6.3 Mounting other eyepiece unit (protractor eyepiece)
Mount the eyepiece unit following the same procedure as that for mounting the monocular
unit.
Optical tube clamp screw
Binocular unit
To Next Page
