1.2.4 DRO counter unit
23） Counter ： The displacement of cross-travel stage and optical tube unit is displayed
on this counter.

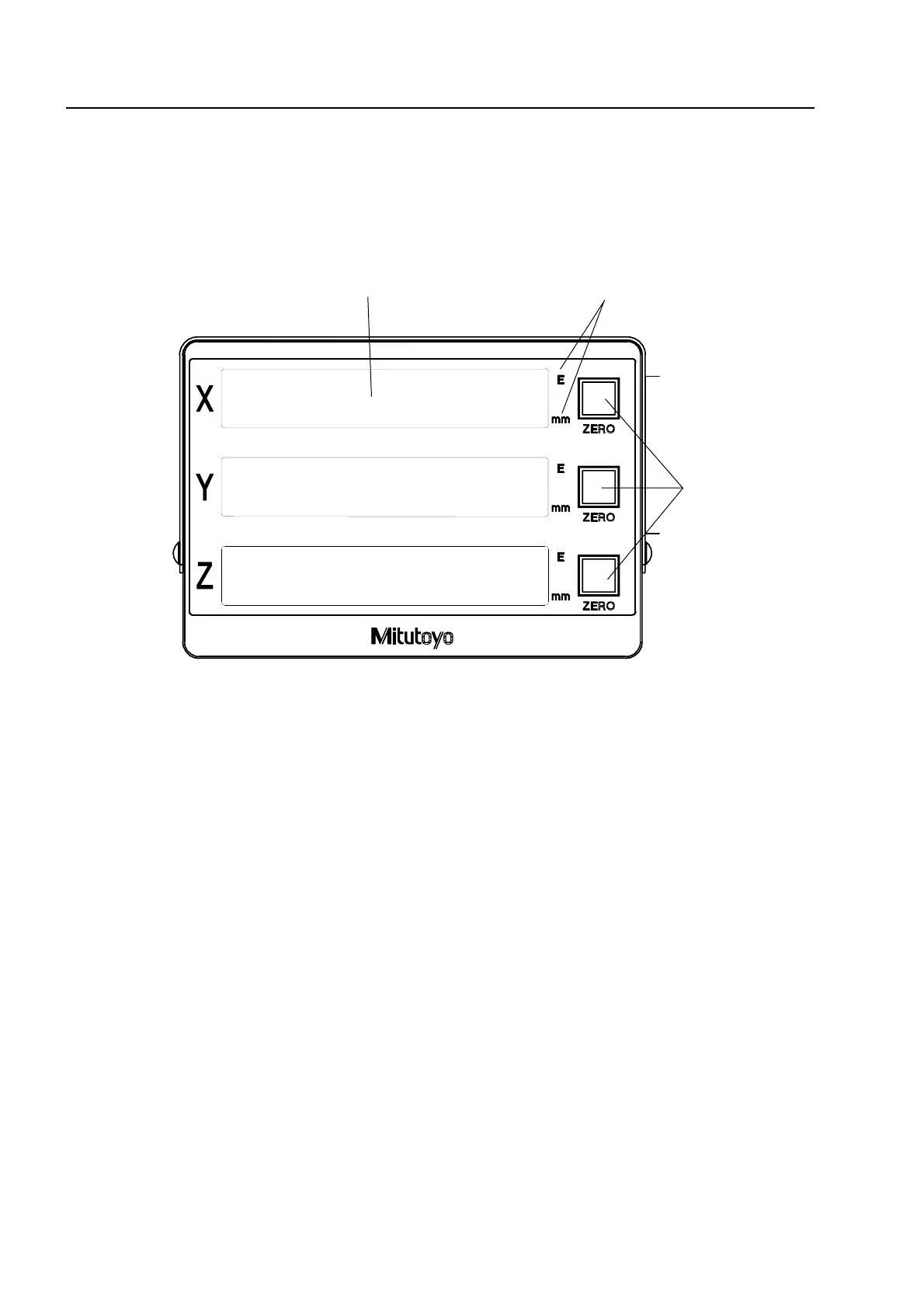

①Front view of the counter
ａ）Display unit
Displays the displacement of cross-travel stage and optical tube.
Resolution: 0.001/0.0005/0.0001mm (.0001/.00005/.00001”)（switchable）
ｂ）Zero-set button
Zeroes the display value at any position.
Pressing the button makes the buzzer sound.
ｃ）mm/E or indicator LEDs
Indicates the unit (mm or E) currently used.
A value in units of E is displayed by dividing a displacement in units of mm by 25.4.
a）Display unit
c）mm/E indicator LEDs
b）Zero-set button
