2. Installation and setup
No. 99MBA091A
2-9
2.8 Installation of the Illuminators

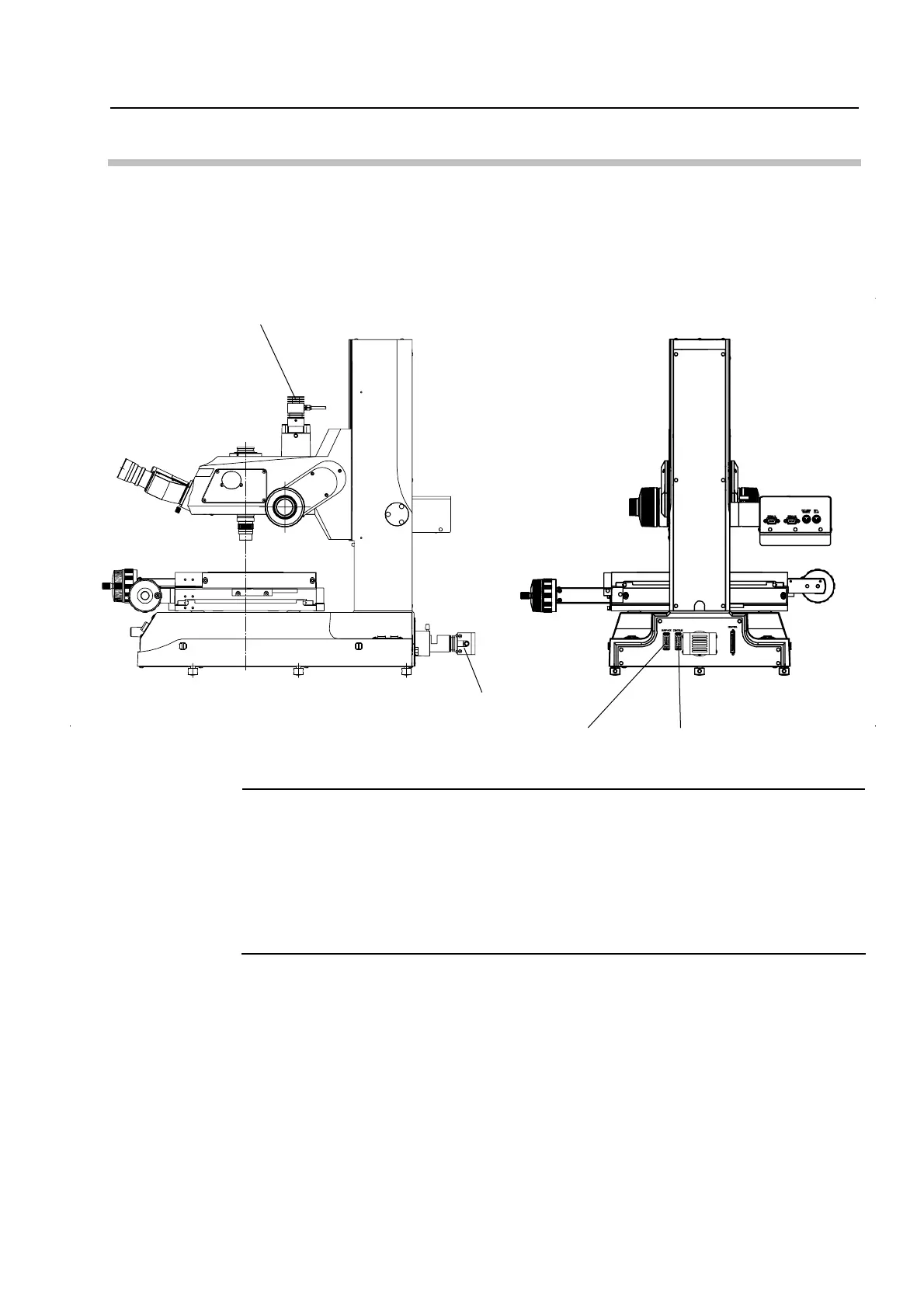

Insert a transmitted illuminator and a vertical reflected illuminator into their respective
mounts in the main unit to fix them with clamp screws according to the following figure.
Set the cables so as not to touch the illuminators.
2.8.1 For LED illuminator
IMPORTANT
1. Do not turn on the light when the transmitted illuminator and vertical reflected
illuminator are removed from the main unit. After turning on the illuminator, it
becomes very hot. Do not illuminate upward, otherwise the cable will be
deformed by the heat.
2. Do not place anything on the illuminator ant its peripheral part. The efficiency
of the air-cooling fan decreases and a trouble will result.
Transmitted illuminator
Vertical reflected illuminator
Connector for vertical
reflected illuminator
Connector for
transmitted illuminator
