6.7.6 Connecting QM-Data 200
It is necessary to perform the QM-Data 200 setting when connecting it to the counter unit.
For information about setting up QM-Dada 200, refer to its user’s manual.
（１） Connection
（２） QM-Data 200 setting
① Select the “SYSTEM” key of operation panel.
② 5: Measuring Instrument Setting--＞ 1: Counter Type--＞ MF-A/MF-UA
After the selection, the external counter setting of QM-Data 200 becomes the following
communication condition:
● Baud Rate: 9600 bps
● Communication Condition: EVEN, 7, 1
● Flow Control: DTR/DSR
● Terminator: CR+LF
③ 2: Axis Configuration--＞ 1：X, Y or 2：X, Y, Z, (depending on the axis configuration of the
microscope)
NOTE
When QM-Data 200 starts, the counter display of microscope goes off and LED of
mm/E display at the counter blinks on and off. The switches on the microscope
counter become ineffective.
TIP
A value in units of “E” is displayed by dividing a displacement in units of “mm” by
25.4.

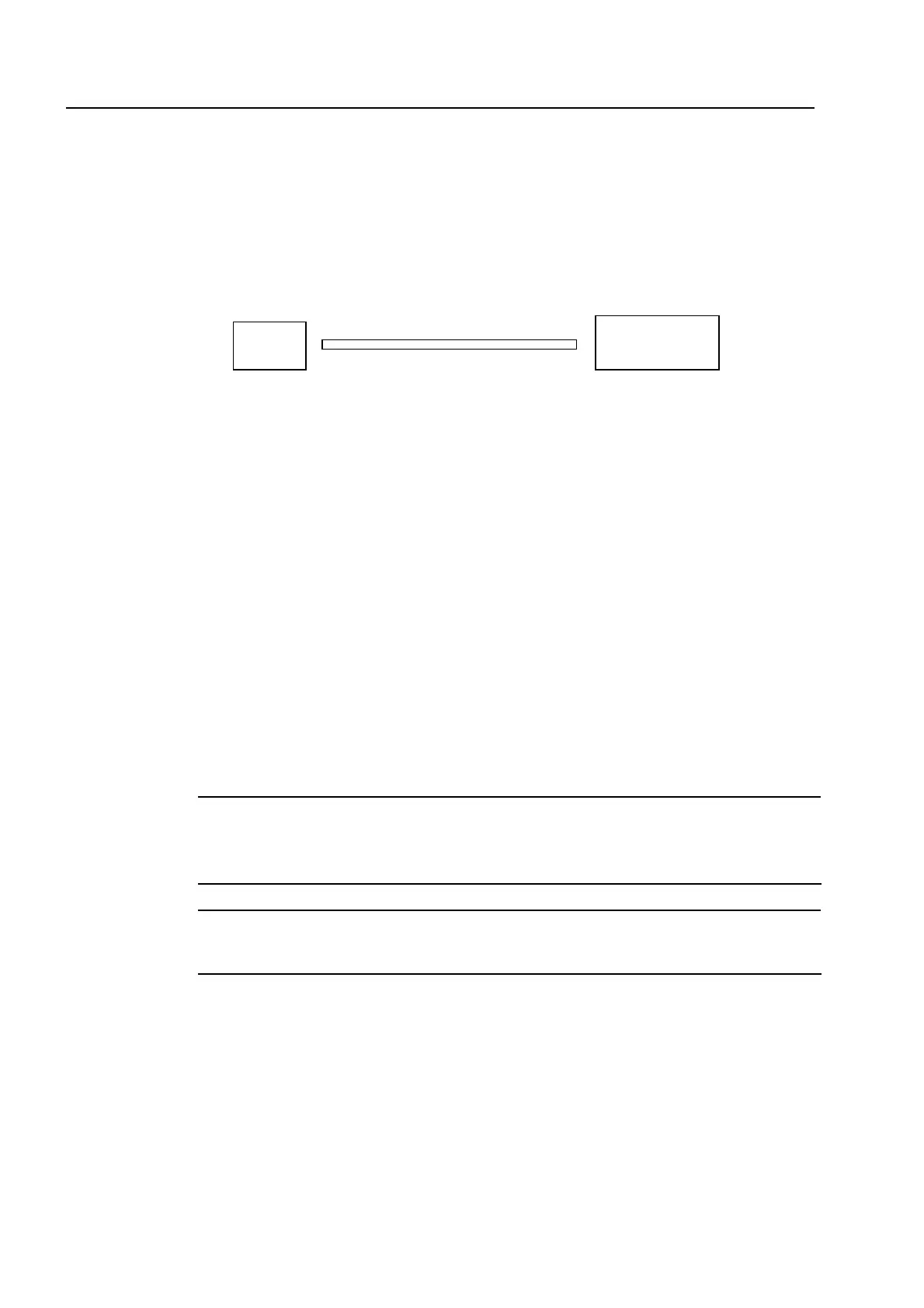

Connecting cable
（
No.12AAA807
）
QM-Data200
Counter
unit
SERIAL(1)
RS232C(2)
