3. Measurement setup
No. 99MBA091A
3-11
3.9 Adjusting the Pupil Distance
（The case in which the binocular unit is mounted）

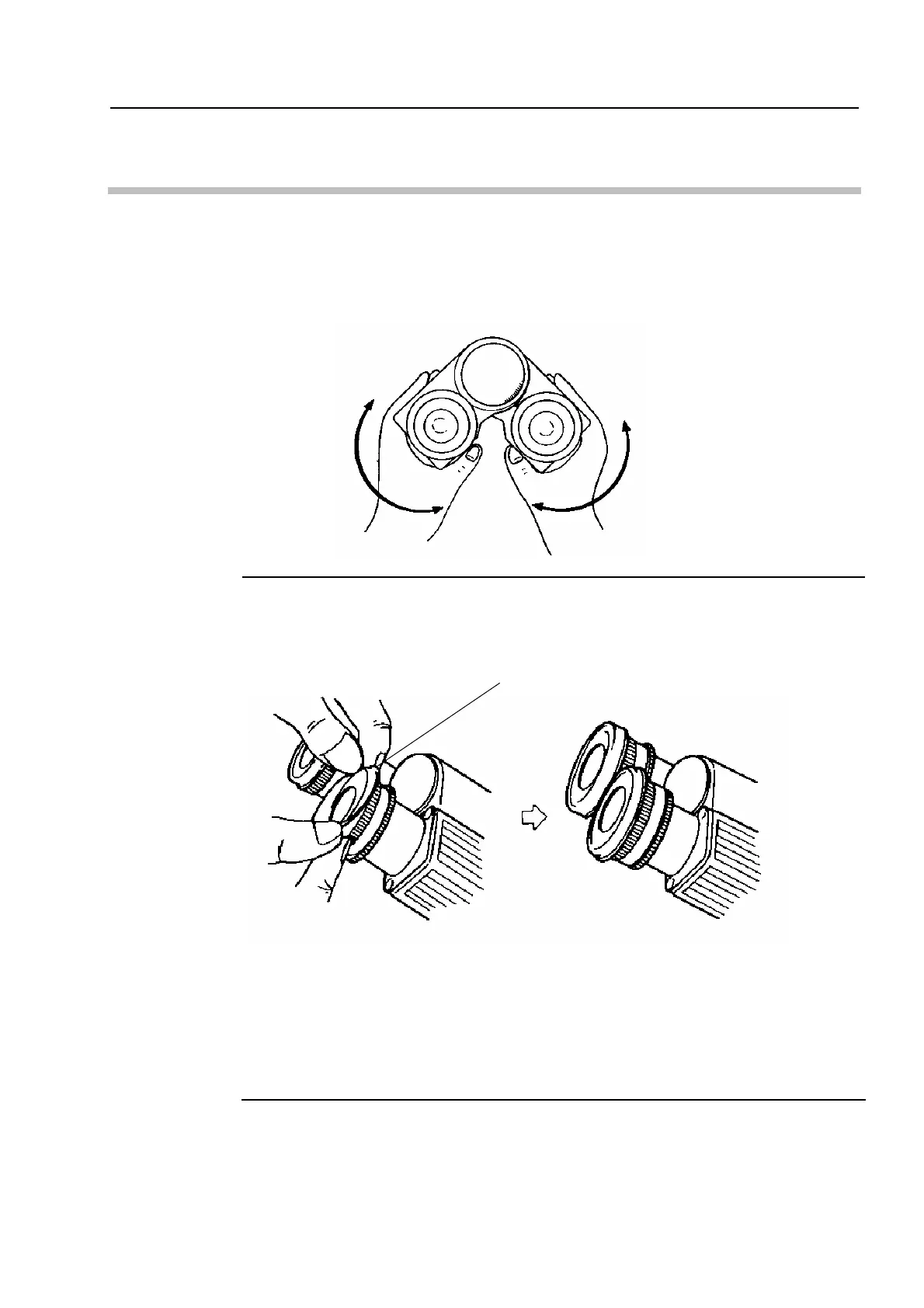

Look through the eyepieces at the correct viewing angle and hold the binocular tubes with
both hands. Adjust the angle between the tubes to your eyes by moving them in the
directions shown below.
・Adjustable range of pupil distance：51～76mm
NOTE
1. The eyepieces employ a high-eye-point system with rubber eye cups
attached. Turn the rims outward, as shown in the below figure, if you wear
eyeglasses.
2. The binocular unit is supplied with polyethylene caps to shut off the light
from the eyepieces during use of the TV port and for dust-preventive
purpose during storage. (The cap is also supplied for the monocular unit.)
Cover each polyethylene cap over the eye shade on individual eyepieces. If
the eye shade is removed from the eyepiece, a play will be generated
between the cap and eyepiece. Exercise a great care.
Rubber eye cup
