3. Measurement setup
No. 99MBA091A
3-7
TIP
1. The swivel center support (No.172-197), V-block with clamp (No.172-378), and
holder with clamp (No.176-107) are also available optionally to fix a
workpiece.
2. To secure a workpiece and fixture to the XY stage, use the tapped holes on the
stage. The stage adapter (B)(No.176-310) is used for MF-2010C and the
stage adapter (No.176-304) is used for MF-2017CMF-3017Cand MF-
4020C to be secured on the stage with tapped holes as shown below. The
fixture is secured using T-groove of the adapter.
3. For information about the dimensions of stages, refer to the XY stage in "6.8
External Dimensions".

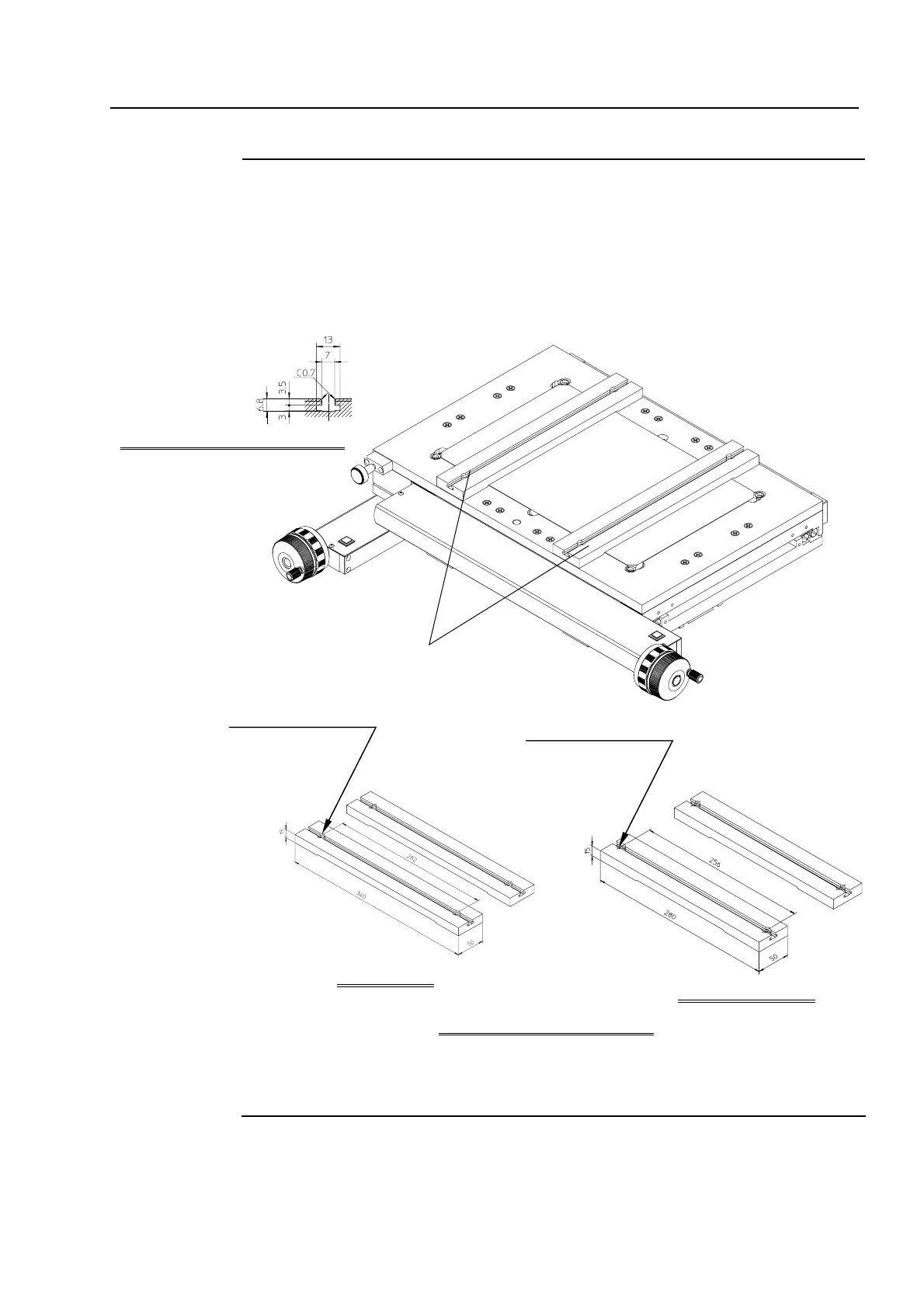

Stage adapter T-groove dimension figure
Stage adapter
Stage adapterB
Stage adapter
Stage adapter dimension figure
2-
φ
6.6 hole
φ
11 counter sink
2-
φ
6.6 hole
φ
11 counter sink
