1-3. Standard stylus
Used for tracing the surface of a workpiece.
1-4. Skidless nosepiece
Used for measurement with a stylus to which the safety nosepiece
cannot be attached.

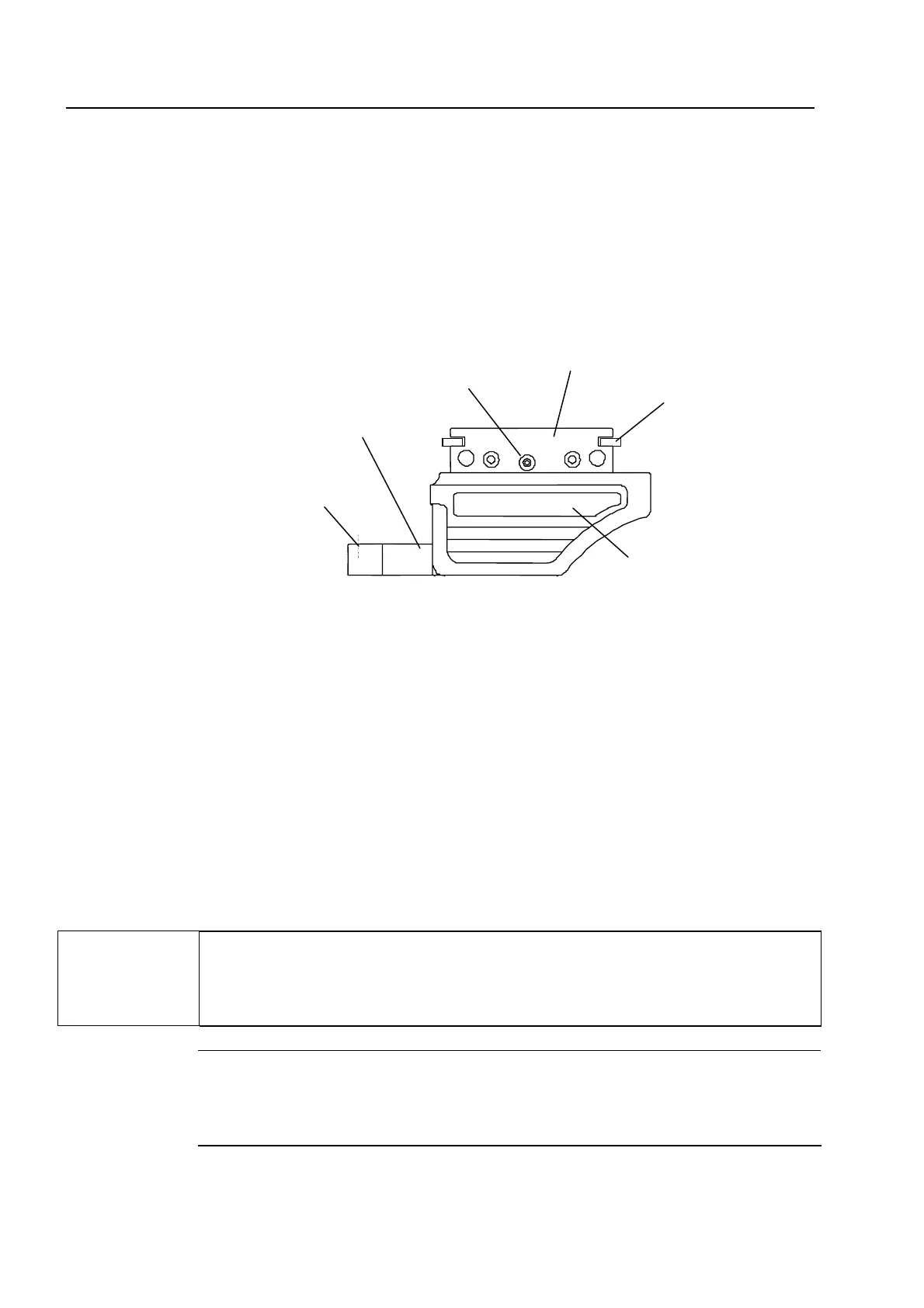

2. Detector holder unit
Fig. 1-6
2-1. Detector holder
Holds the roughness measuring detector.
2-2. Detector cover
2-3. Mount block
Used for mounting the detector on the X1-axis unit.
2-4. Lever
Used as the support lever when dismounting the detector.
2-5. Cover safety device clamp
Clamps the cover safety device when attaching/detaching the detector.
2-3. Mount block
2-5. Cover safety device
TIP
• Various types of styli are available as option according to the workpiece.
• For information about optional styli, refer to “6.4.2 Optional accessories for the
roughness measuring detector”.
NOTE
• Usually use the detector with the cover safety device clamp unclamped.
• Note that the collision safety function will not be functional if the safety device is
clamped.
2-1. Detector holder
2-2.Detector cover
2-4. Lever
(Detector retaining screw)
No. 99MBB187A
1-10
