6. SPECIFICATIONS
6.2 External Dimensions

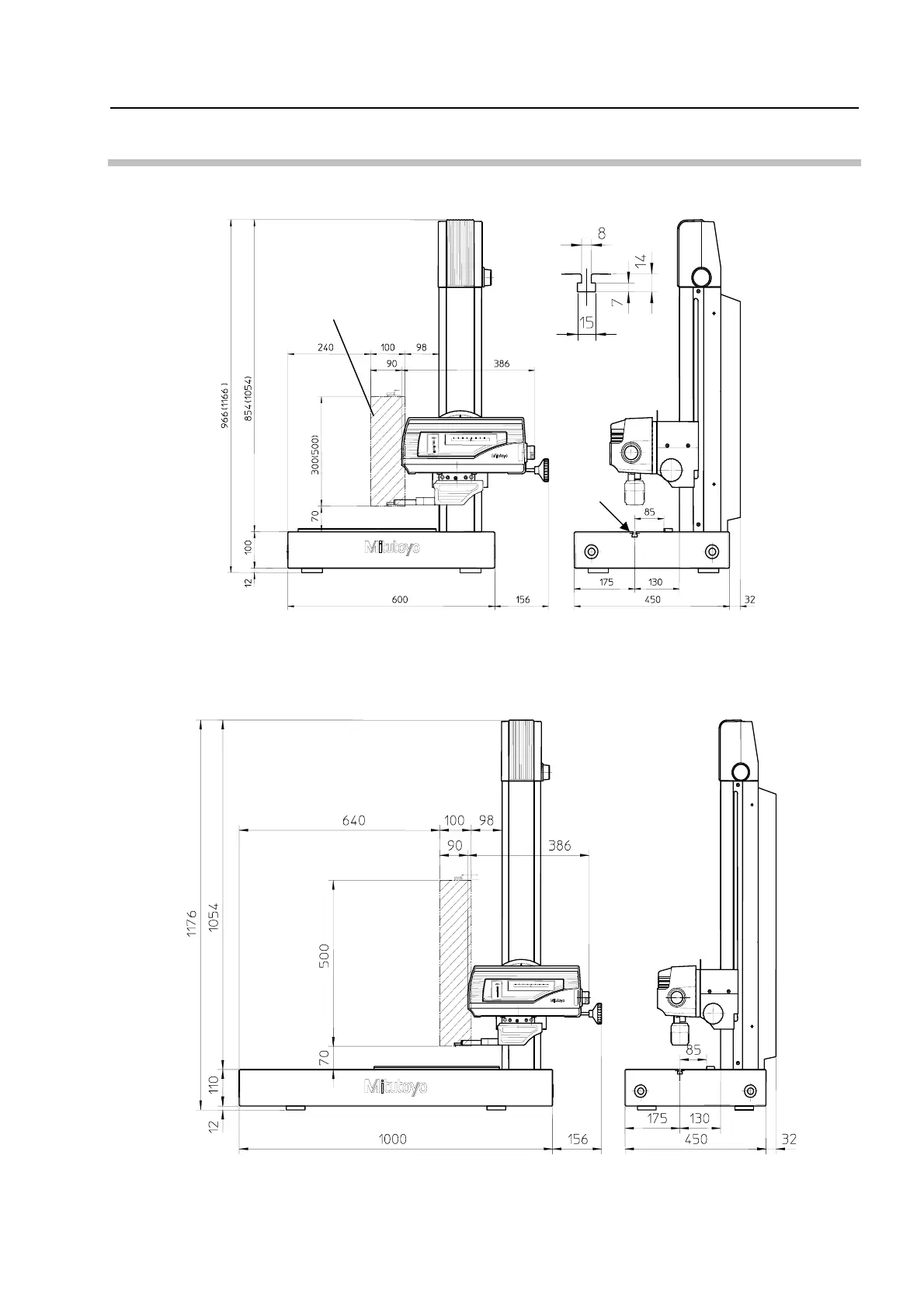

6.2.1 Measuring main unit (SV-3100S4/H4)
Measuring area
Dimensions of T-groove
(All model commonness)
T-groove
The values in ( ) represent the dimensions for the H4 type.
6.2.2 Measuring main unit (SV-3100W4)
No. 99MBB187A
6-3
