2.2 Installation Space
The installation and setup work of this system is to be conducted by Mitutoyo service
personnel.

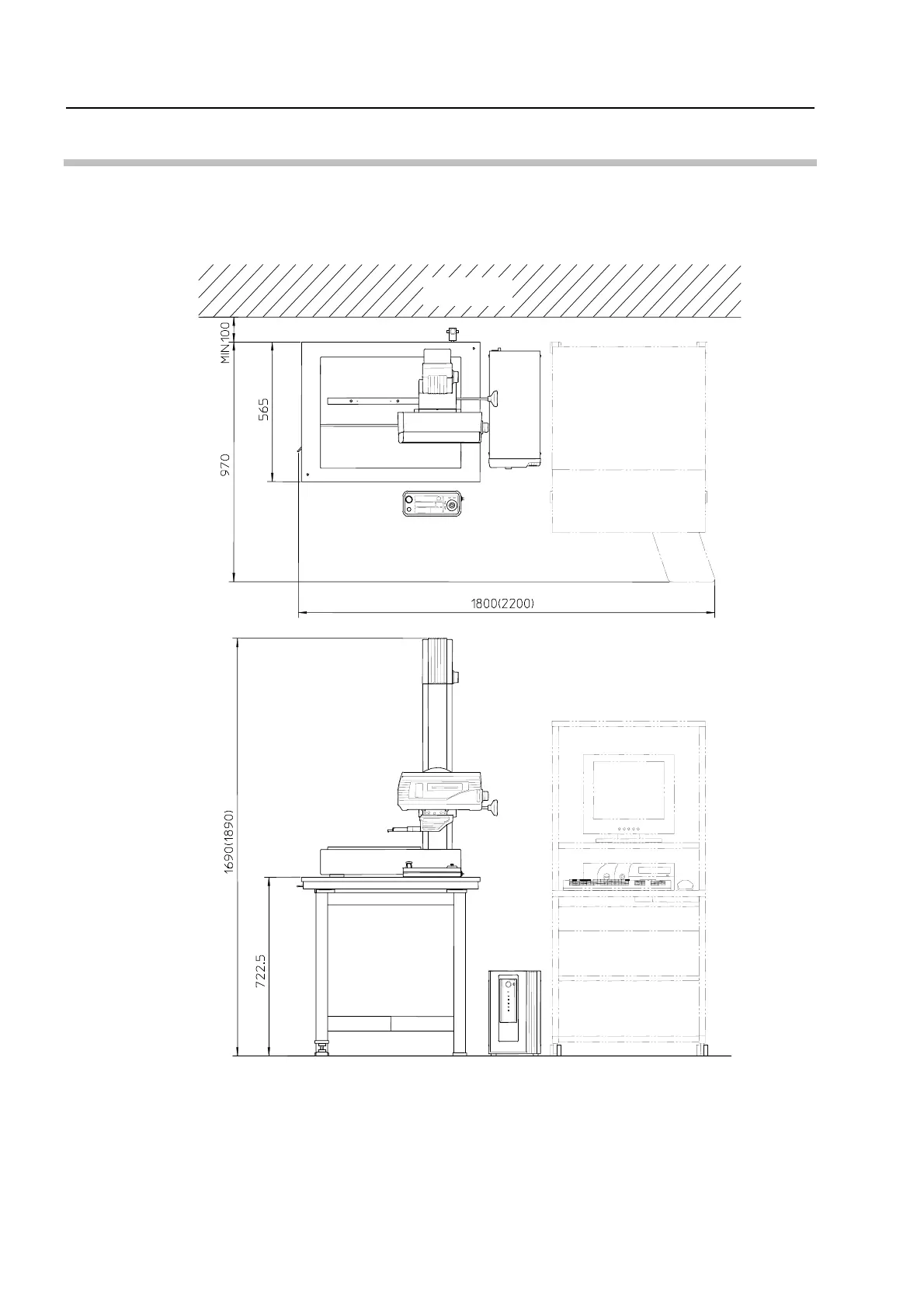

The following is an example of the standard floor space required for installing this system.
*1 Dimension surrounded in the parenthesis shows the W type.
*2 Dimension surrounded in the parenthesis shows H,W type.
Fig. 2-1
Wall side
*1
*2
No. 99MBB187A
2-4
