2. INSTALLATION

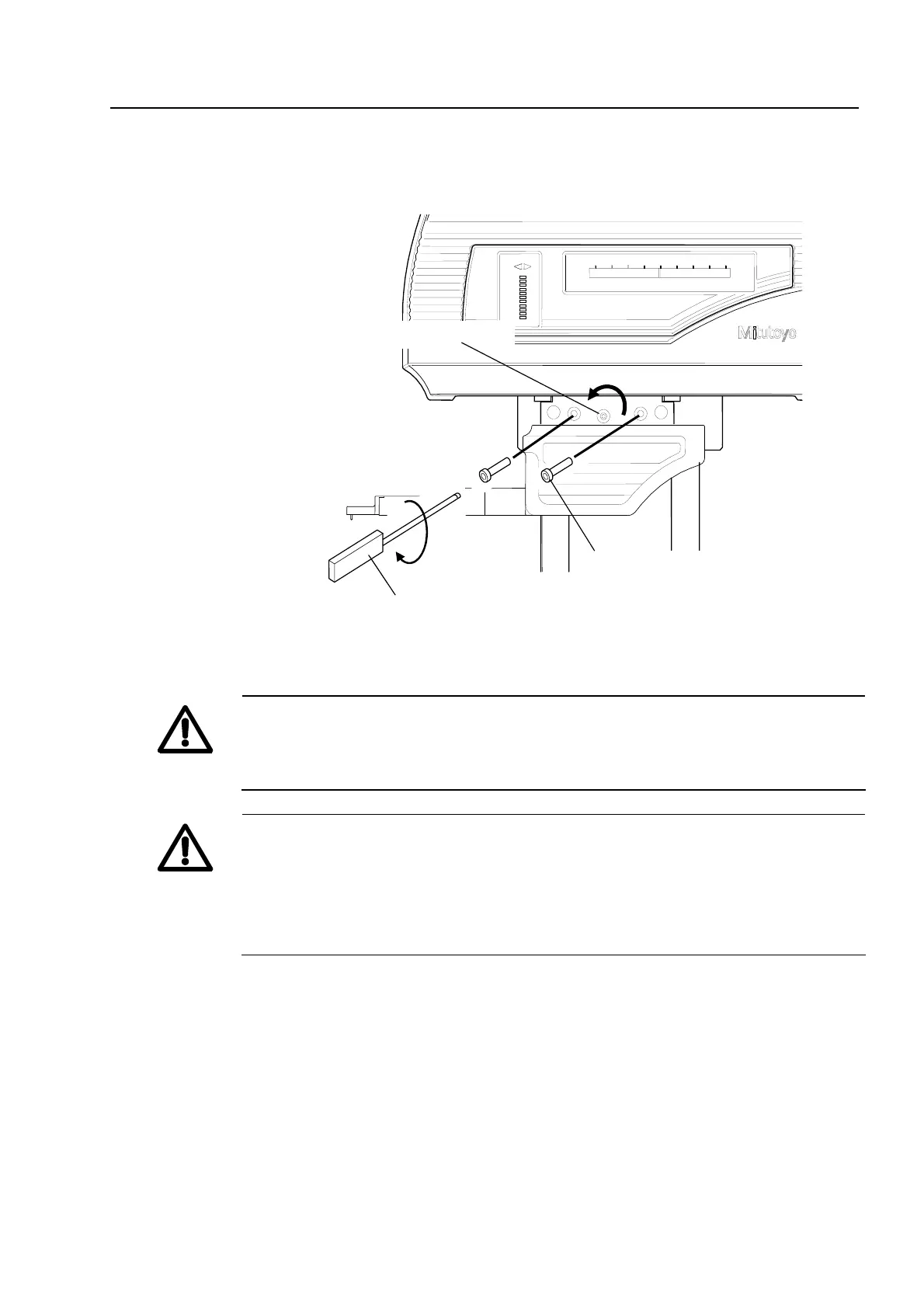

3. Use the supplied ball-point screwdriver (nominal diameter: φ3) to fasten two
hex-socket head bolts. At this time release the lock of the safety clamp of the cover.
Safety clamp of the cover
Hex-socket head bolt
Ball-point screwdriver (nominal dia.:
3)
Fig. 2-4
CAUTION
•Unless the safety clamp of the cover is released, the collision safety function will not
serve. After mounting the detector be sure to unlock the safety clamp.
WARNING
•Be sure to complete the detector connection before starting up the system. Also, before
replacing the detector, quit the system operation and turn OFF the power supply to the
controller.
•If detector replacement is attempted while the power supply remains to ON, the system
may operate unexpectedly, causing accidental injury.
No. 99MBB187A
2-7
