Motors and gears
Component
Objective
Motors
Check operation of motors
Check fastenings of motors
Brakes
Check the operation and wearing of brake
Check the tightness of brake screws
Gears
Check operation of gears
Check for leakages
Mechanical component
Component
Objective
Chain
Check condition and position of chain
Hook block
Check operation and condition of hook block
Check condition of hook forging and safety latch
Check free rotation of hook forging.
Note: The product may have options which also require inspection. Make sure
that all components are inspected.

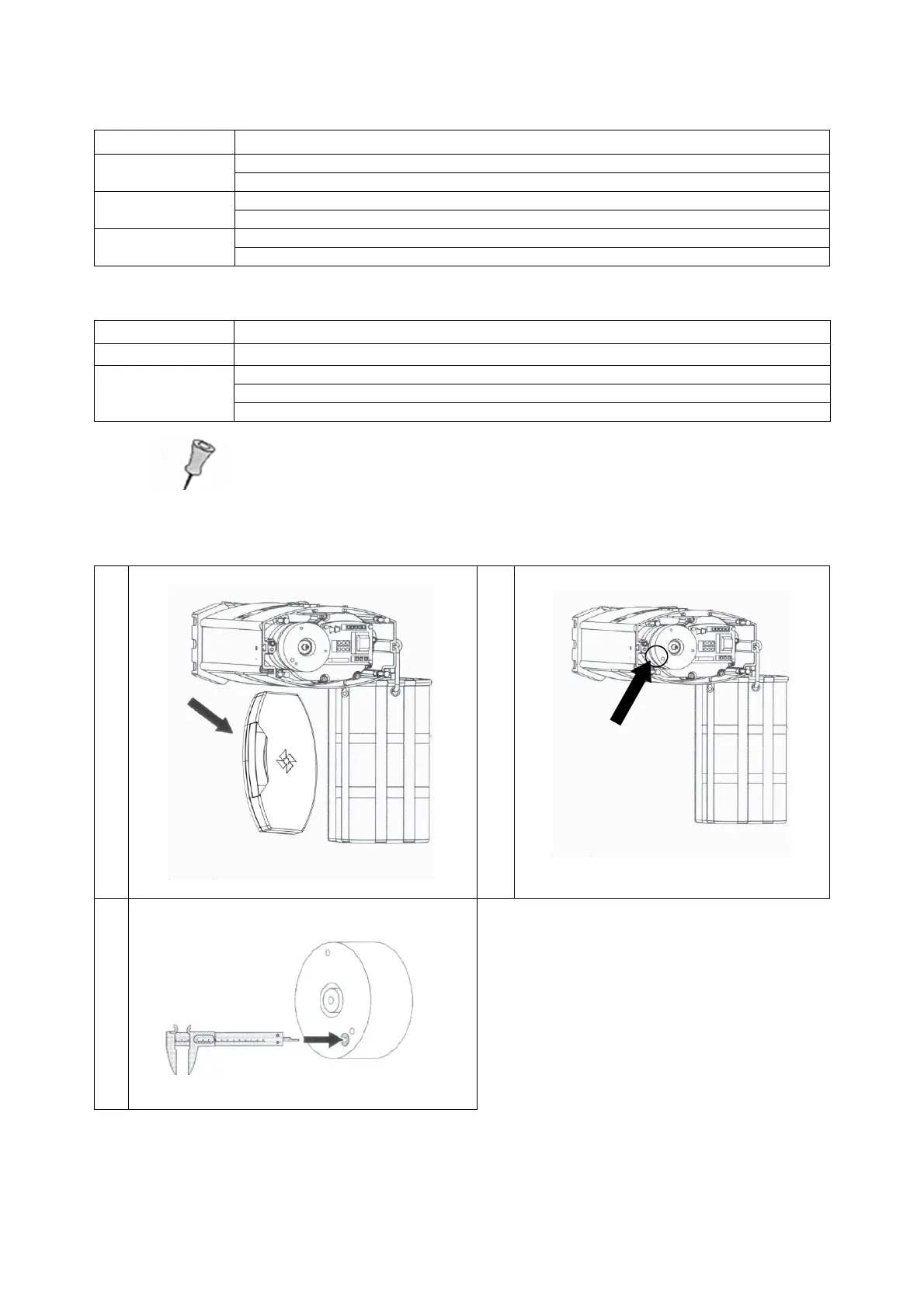

Checking the brake lining
For accessing the control electrics and brake, remove the end cover as follows.
1
Remove the cover.
2
Locate the check hole in brake assembly.
3
Measure the gap with a caliper.
