MODE V6 - Replacing the Brake

7/2015
This document and the information contained herein, is the exclusive property of MODE. And represents a nonpublic,
confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, or otherwise employed in
any manner. whatsoever without the express written consent of MODE. Copyright © (2016) MODE. Allrights reserved.
60 / 82
The maximum values for the brake measurement are:
Ar20℃（68℉）[mm]（in）
02
25.3(0.996)
05
25.3(0.996)
10
30.0(1.181)
Brake lining criteria is indicated in the sticker next to the measurement hole.
In case that brake has worn more than maximum criteria, contact authorized service
personnel for brake change.
Replacing the Brake
Single Brake

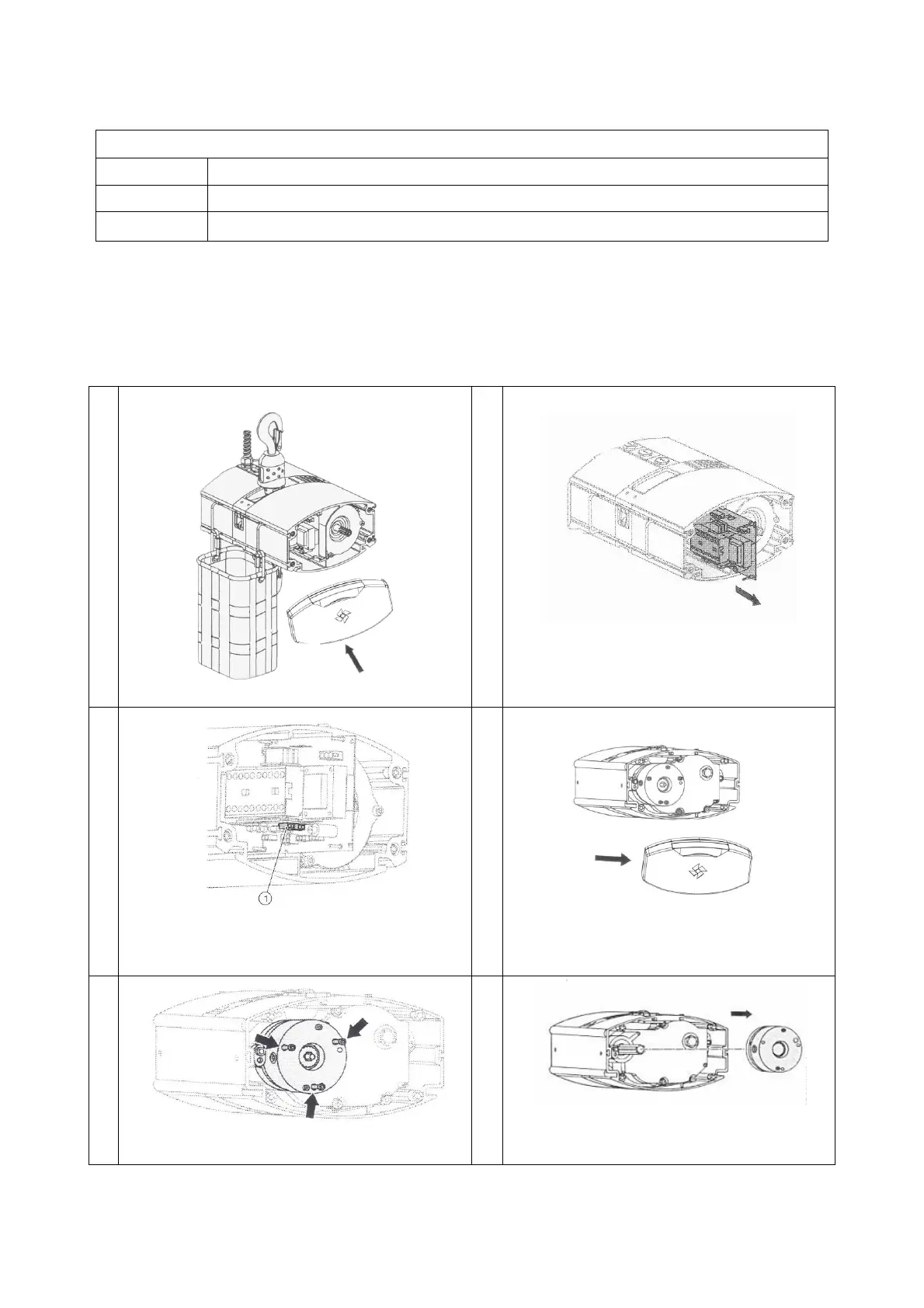

1
Open the motor side cover.
2
Pull out the electrical board.
3
When he electrical board is a few centimeters
(inches)out,unplug the brake plug(1)from its
socket.
4
Open the brake side cover.Pull the brake
cable with the brake plug carefully out on the
brake side.
5
Unscrew the three screws of the brake.
6
Remove the brake by pulling it out.
