MODE V6 - Double Brake

7/2015
This document and the information contained herein, is the exclusive property of MODE. And represents a nonpublic,
confidential and proprietary trade secret that may not be reproduced, disclosed to third parties, or otherwise employed in
any manner. whatsoever without the express written consent of MODE. Copyright © (2016) MODE. Allrights reserved.
61 / 82
7
To assemble the new brake, proceed in reverse
order.
Double Brake

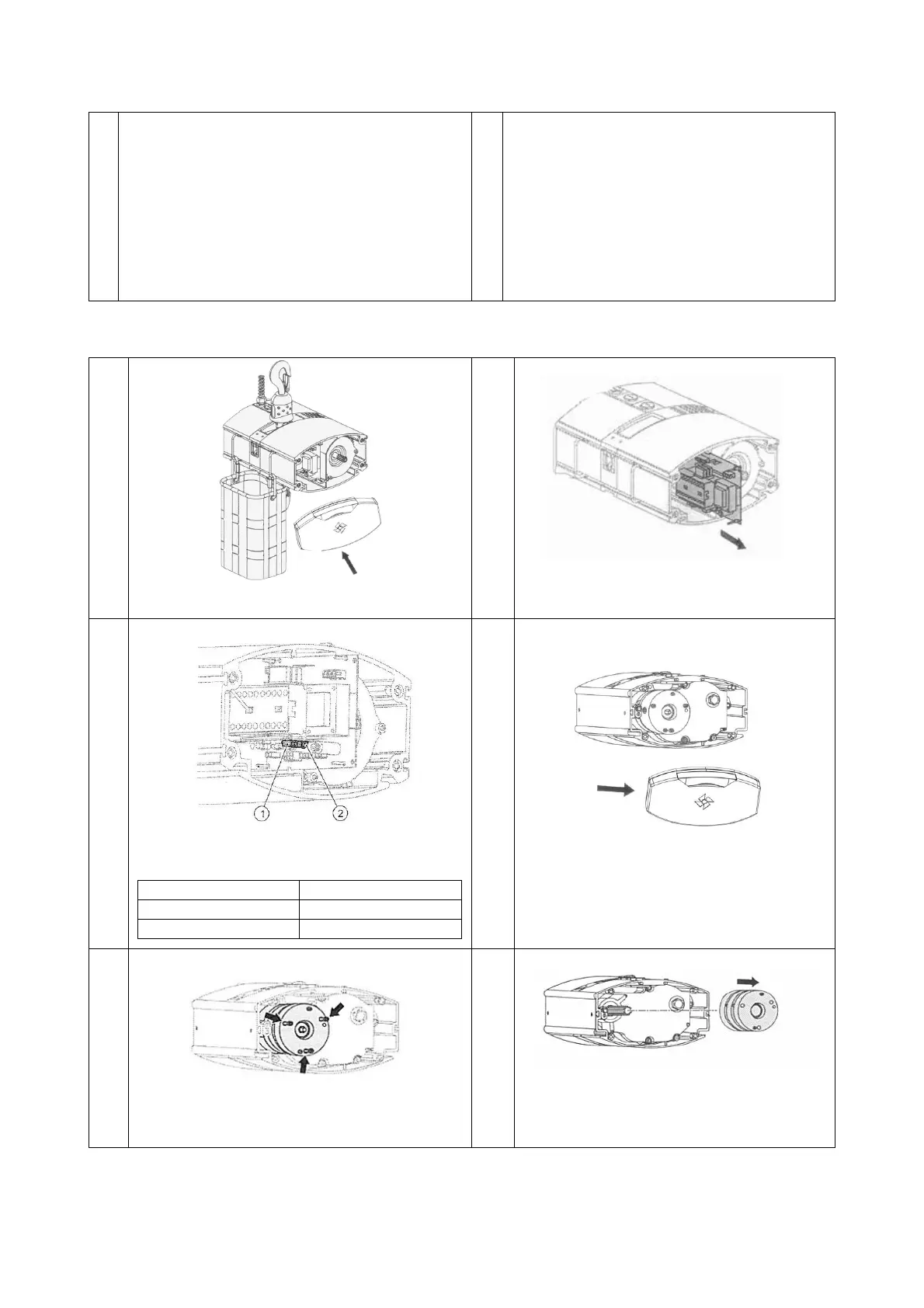

1st step: Dismounting the double brake
1
Open the motor side cover.
2
Pull out the electrical board.
3
When he electrical board is a few centimeters
(inches)out,unplug the brake plug (1) and (2)
from their sockets.
Pos.
Description
1
Brake1
2
Brake2
4
Open the brake side cover.Pull the brake
cable with the brake plugs carefully out on
the brake side.
5
Unscrew the three screws of the brake.
6
Remove the brake by pulling it out.
NOTE:Hold the complete double brake with
your hands so that the parts do not fall apart.
