2nd step: Mounting a new double brake
7

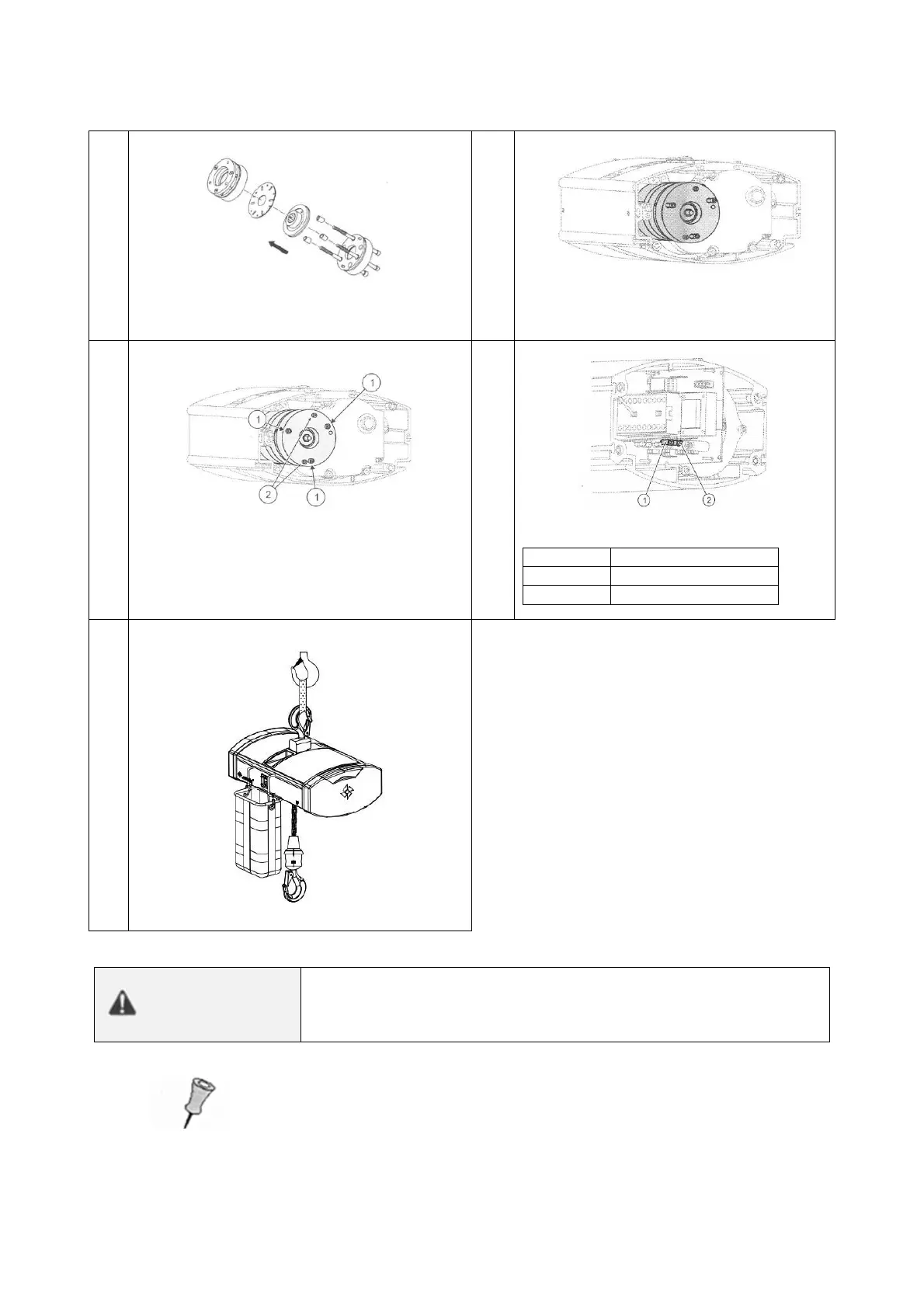

Assemble the brake according to the picture.
NOTE: Pay attention to the orientation of the
lining.
8
Put the double brake in position and
pre-tighten the screws by hand
9
Tighten the screws (1) with a tool. Remove the
two other screws (2).
NOTE: The top brake is the main brake; the
bottom brake is the safety brake.
10
Plug the brake plugs on their correct
sockets.
Pos.
Description
1
Main brake
2
Safety brake
11
Close the motor and brake side covers.
CAUTION
After completing the work on the brake, the brake function must
be tested with rated load
Note: The clutch must be re-adjusted after the brake has been replaced.
