c) Servo Control/Test “Display”
In this menu you can graphically display the servo control settings for all 6 channels and simultaneously check the
individual control functions with all mixers. Especially with helicopter models you can easily very quickly make mixer
errors for swash plate control. The servos can be tested as well in this programme. For this, all six channels are
automatically run from one end stop to the other and back.

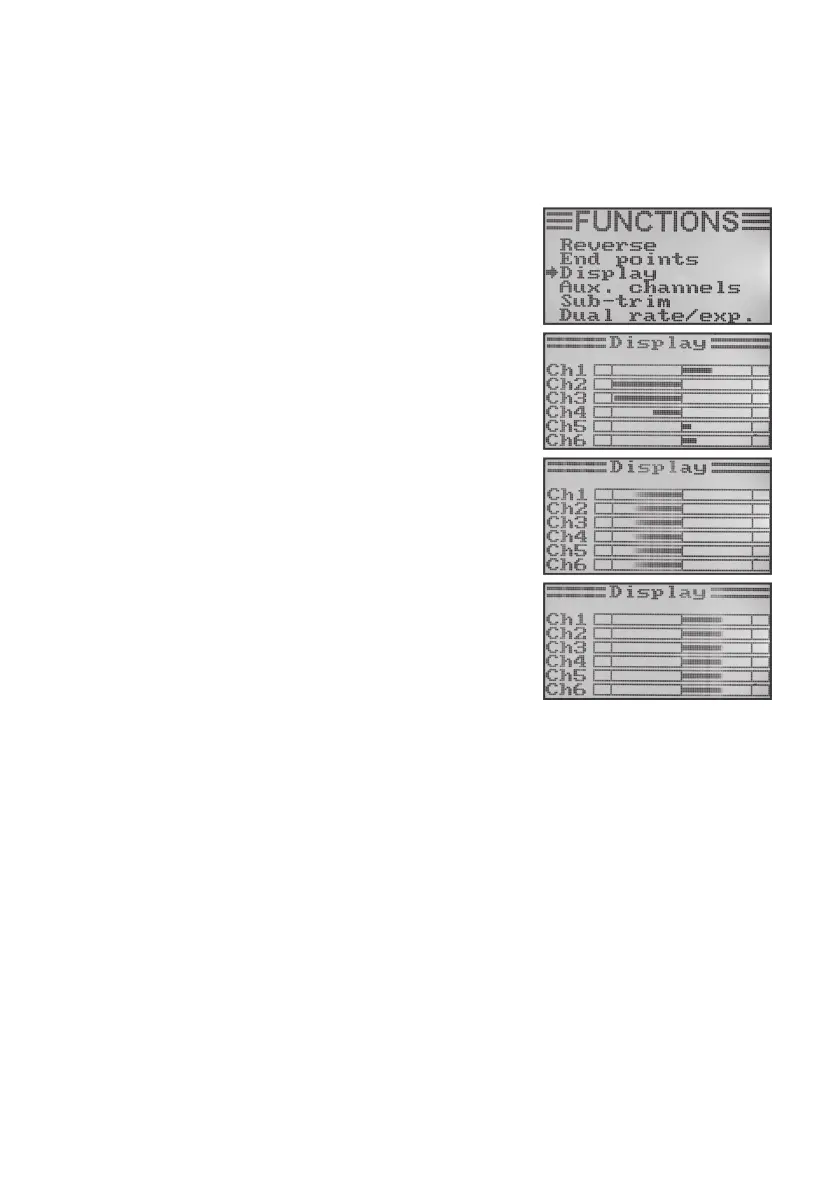

Display Servo Control
• Switch on the transmitter and call the function setting menu.
• Move the cursor arrow to the menu item “Display” with the scroll wheel.
• Briefly confirm the scroll wheel button or the button “OK” to activate the
menu item.
The display shows the 6 channels in the current position of the encoders.
If you move the control sticks, activated switches or rotating encoders in
different directions now, you will see precisely which servo is controlled in
which direction.
• Push the button “OK” to start the servo test. The six bar displays now
continually run from one end stop to the other. With the receiver activated,
the servos react according to the bar charts.
• Push the button “OK” again to terminate the servo test. The bar charts
change to the current positions of the encoders.
• Push the button “CANCEL” repeatedly until you get back to the operating
display.
Figure 30
