Installation and Set Up
18 5016072 A
Required equipment
• Alignment tools
• Baseplate
• Long Phillips screwdriver
• 2 Phillips-head screws

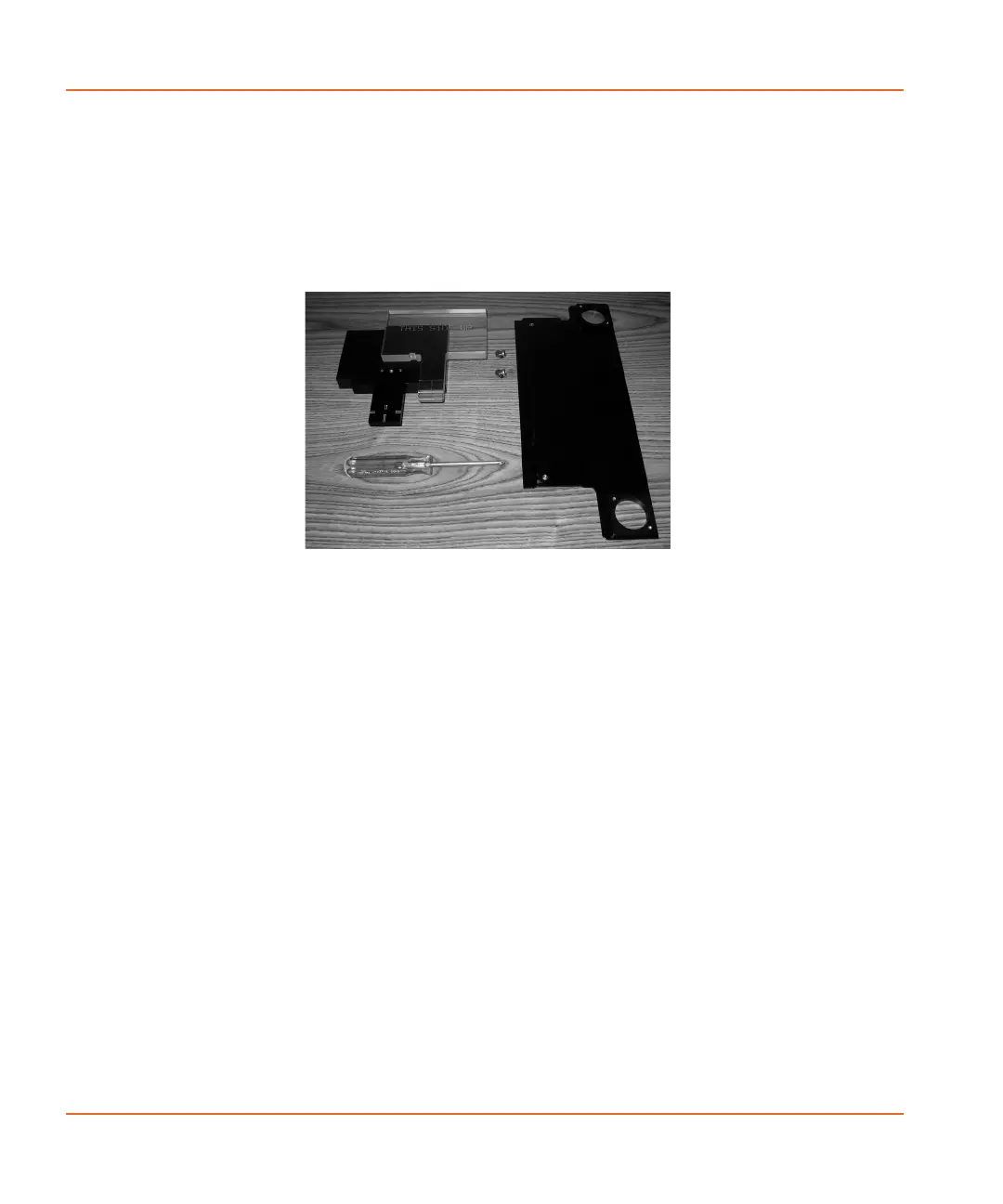

Figure 2-3 Required components for baseplate installation.
To connect the baseplate
1. Place the StakMax microplate handler and the microplate reader
on a hard, level surface (for example, a lab bench).
2. Place the baseplate on the left side of the StakMax microplate
handler. See Figure 2-4 for the correct position.
