StakMax Microplate Handling System User Guide
5016072 A 19

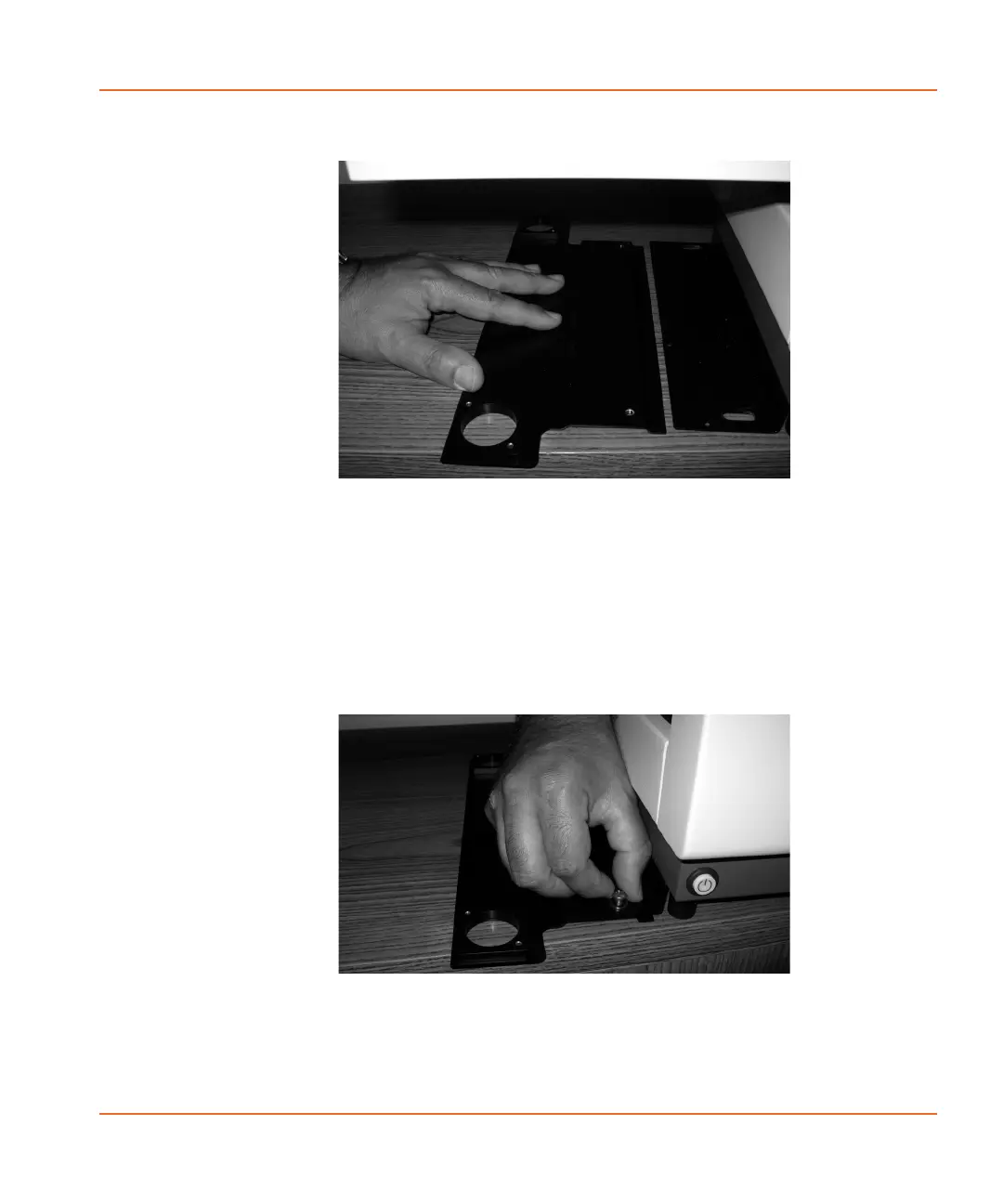

Figure 2-4 Aligning the baseplate.
3. Slide the baseplate under the protruding angle bracket that is
attached to the instrument.
4. Align the baseplate with the mounting holes in the StakMax
angle bracket and loosely thread the included Phillips-head
screws and washers through the top baseplate and into the
threads on the StakMax angle bracket. Do not tighten the
screws until after the software installation and calibration
processes are complete. See Figure 2-5.
Figure 2-5 Aligning the baseplate and loosely threading the
screws.
StakMax-UG-5016072A.book Page 19 Friday, October 21, 2011 3:51 PM
