5. Lift the right side of the reader and place the feet into the two
mounting cups located on the baseplate. Make sure that the
reader feet are completely seated in the mounting cups. See
Figure 2-6.

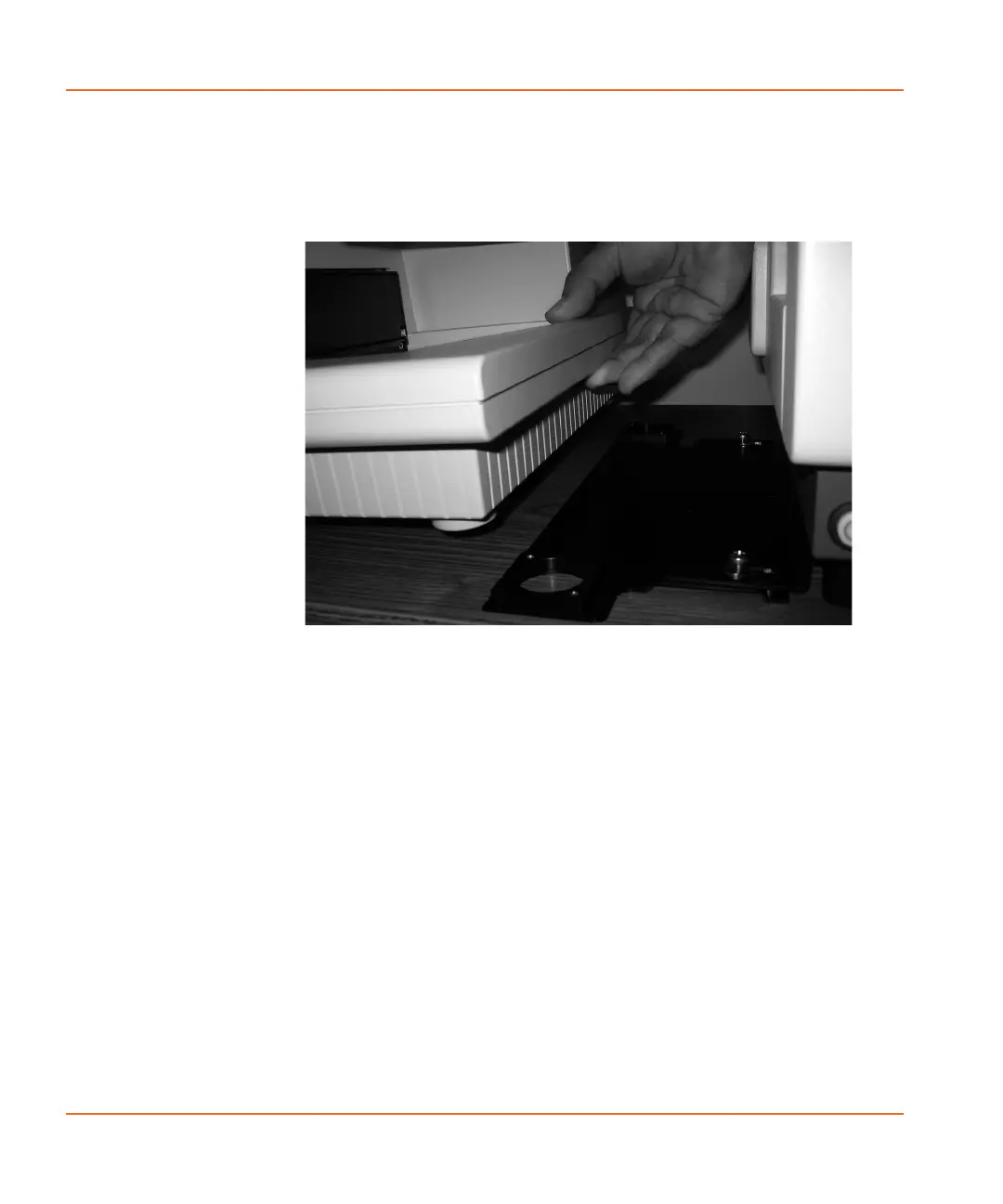

Figure 2-6 Placing the plate reader feet in the mounting cups.
