180 | Section 4 Appliances ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------ ----------------- Monarch SE 2004

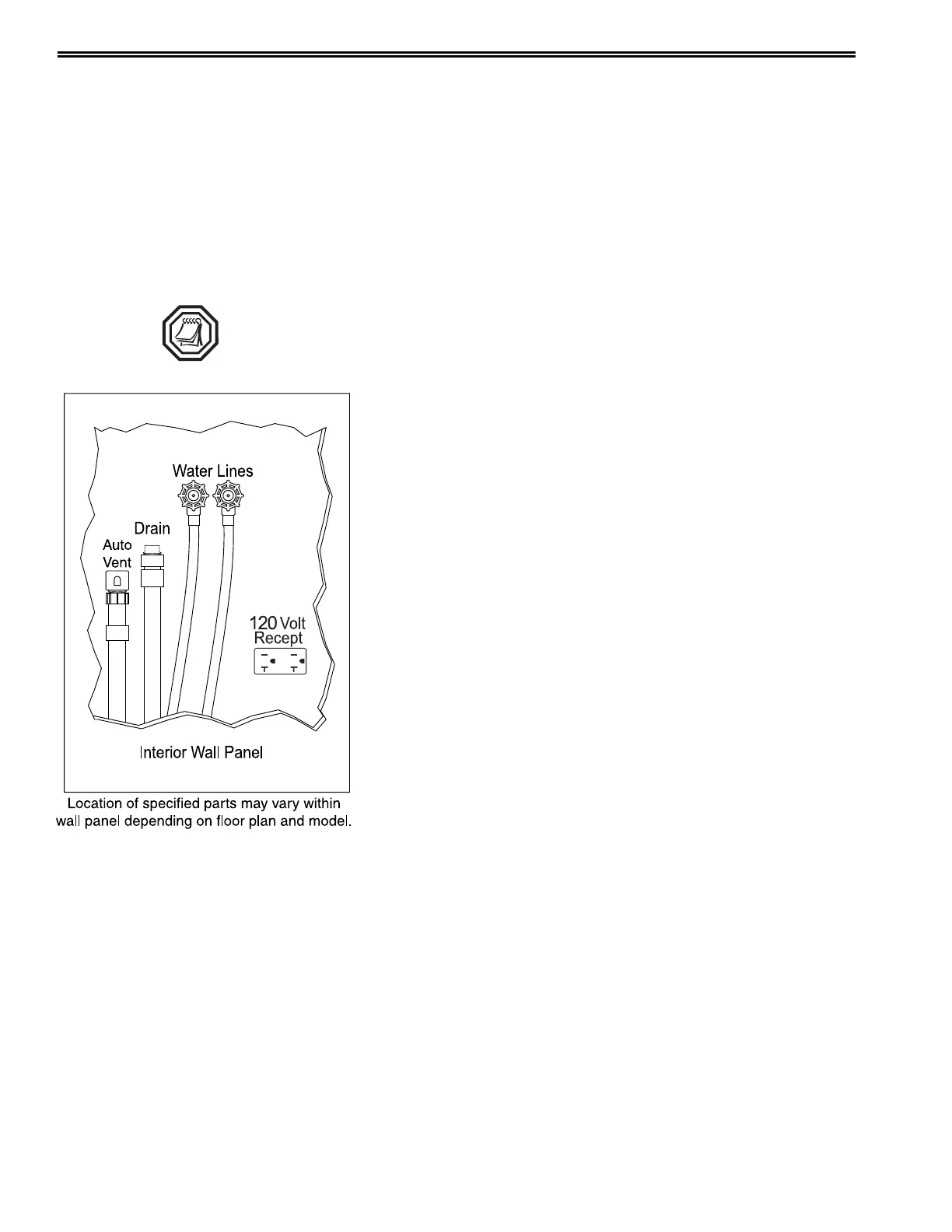

If the motorhome was not ordered with an optional washer-dryer, it will have a
washer-dryer preparation package installed from the factory. The washer-dryer
“prep” package includes the following items:
1. Color coded water supply lines. A red line for hot; a blue line for cold.
2. An 1½". waste water drain line with threaded cap, P-trap, and an auto-
matic vent cap. This will drain the waste water into the grey water
holding tank.
3. A 120 Volt AC receptacle located in the compartment.
NOTE: Sidewall dryer vents are not part of the prep package. If a side-
wall vent is to be installed, properly seal vent to sidewall.
If a washer-dryer is to be installed at a later date, follow all
the manufacturer installation instructions. Listed here are
further instructions which should be adhered to for safe and
reliable operation:
• Do not connect the clothes dryer exhaust duct to any
other duct, vent or chimney.
• Do not terminate the exhaust duct beneath the
motorhome.
• Use proper length fastener when attaching exhaust
vent to exterior sidewall. Stainless steel fasteners are
best suited for this as they will not rust.
• If the cabinet or closet in which a washer-dryer is
installed does not have vented louvered doors, the
manufacturer’s installation instructions may require
installation of vented doors or vents to be installed in
the doors. This is for sufficient circulation of drying.
WASHER-DRYER
PREPARED
040495b
