294 | Section 8 Electrical System ------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------- Monarch SE 2004
DISTRIBUTION
PANEL - 50 AMP
(Optional)

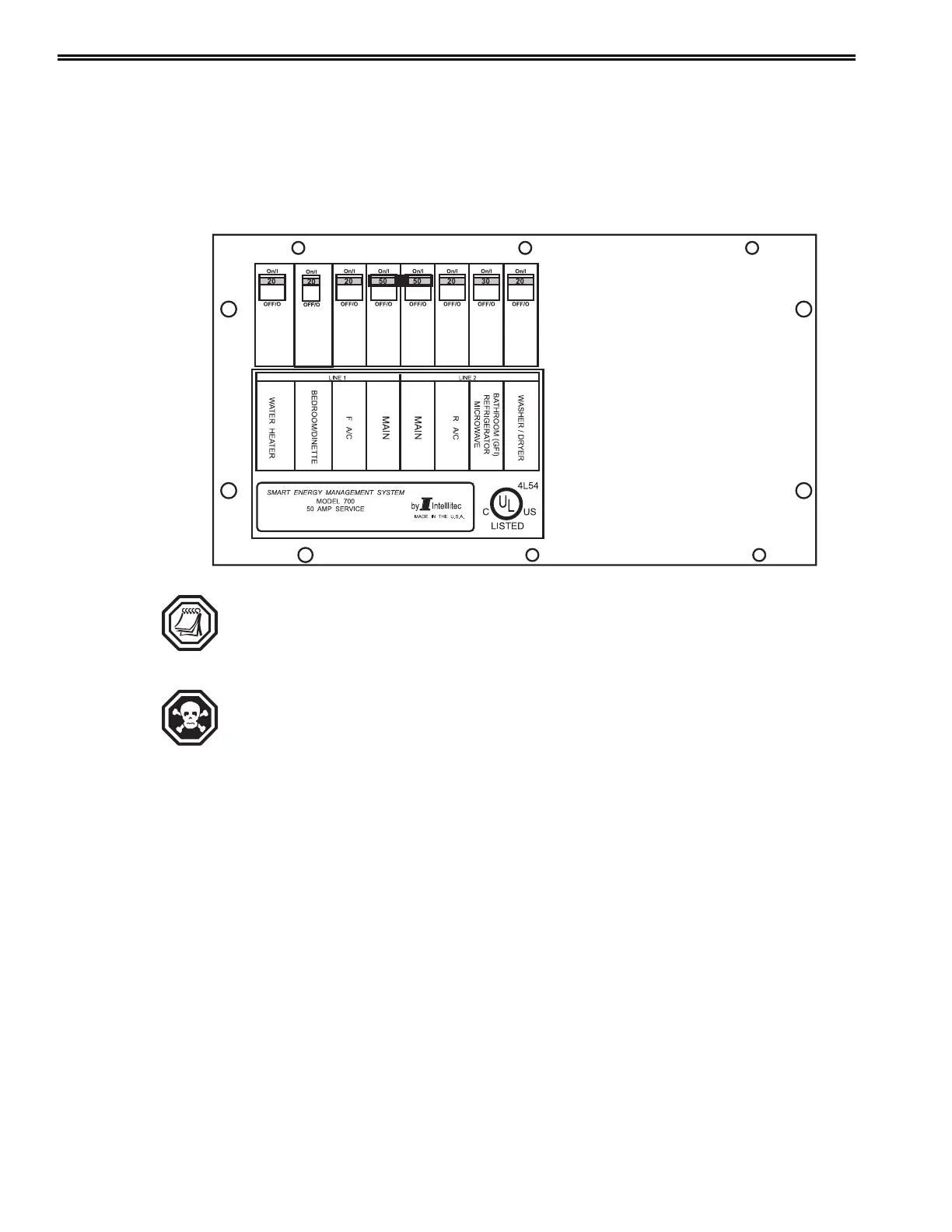

The AC distribution panel is located in the bedroom. The main AC panel 120
Volt circuit breakers receive power from the transfer switch, which is powered by
either shore power or the on-board generator. Power is introduced into the panel to
the 50 Amp MAIN breaker first, followed by power being fed into the individual
branch circuit breakers. The panel label describes the breaker layout and the item,
outlet or appliance to which they pertain.
NOTE: Circuit assignments are labeled on panel. These assignments
will vary with floor plans.
WARNING: This panel contains high voltage which can cause serious
injury or death. Before beginning any work or testing procedures
involving the electric panels, or any of the branch circuits, be sure the
motorhome is unplugged from shore power and the generator is not
running. Certain testing procedures can require the AC power to be on.
Only qualified personnel or personnel with electrical backgrounds
should attempt any testing procedures.
