The exhaust fan is a three-speed fan with a “0” or OFF position on the fan.
The exhaust fan requires the presence of 12 Volt DC to operate. There are two
basic controls located on the ceiling vent fan. The knurled knob manually opens
and closes the dome cover. The rotary knob selects the operating speed of the fan.
When the dome cover opens approximately two inches, the fan motor begins to
operate. During normal operations the knurled knob offers manual control of the
dome cover for opening and closing.

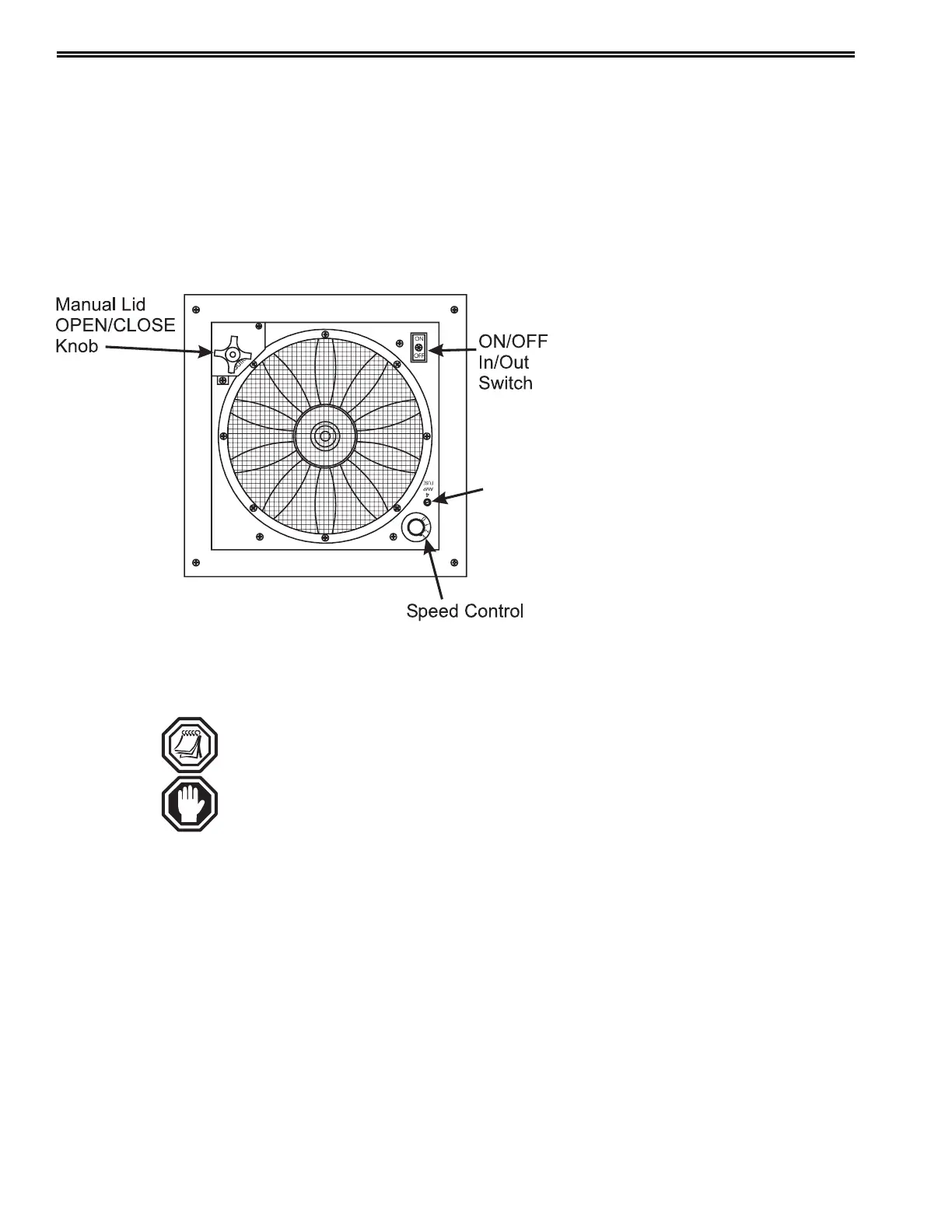

To Operate the Fan:
• The battery cut-off
switch needs to be
set ON.
• The dome manually
opens and closes
using the knurled
knob.
• Select the desired
fan speed on the
Speed Control dial:
0 = OFF.
1 = LOW.
2 = MEDIUM.
3 = HIGH.
NOTE: Let fan come to a complete stop before changing fan direction.
If the speed switch is in the "0" position the fan operates only as a vent.
CAUTION: It is recommended to travel with the vents closed. High
winds and vibration can damage the Plexiglass dome.
FANS -
Exhaust Fan
030832 E
4 AMP
FUSE
ONLY
