Monarch SE 2004--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Section 5 Equipment | 203

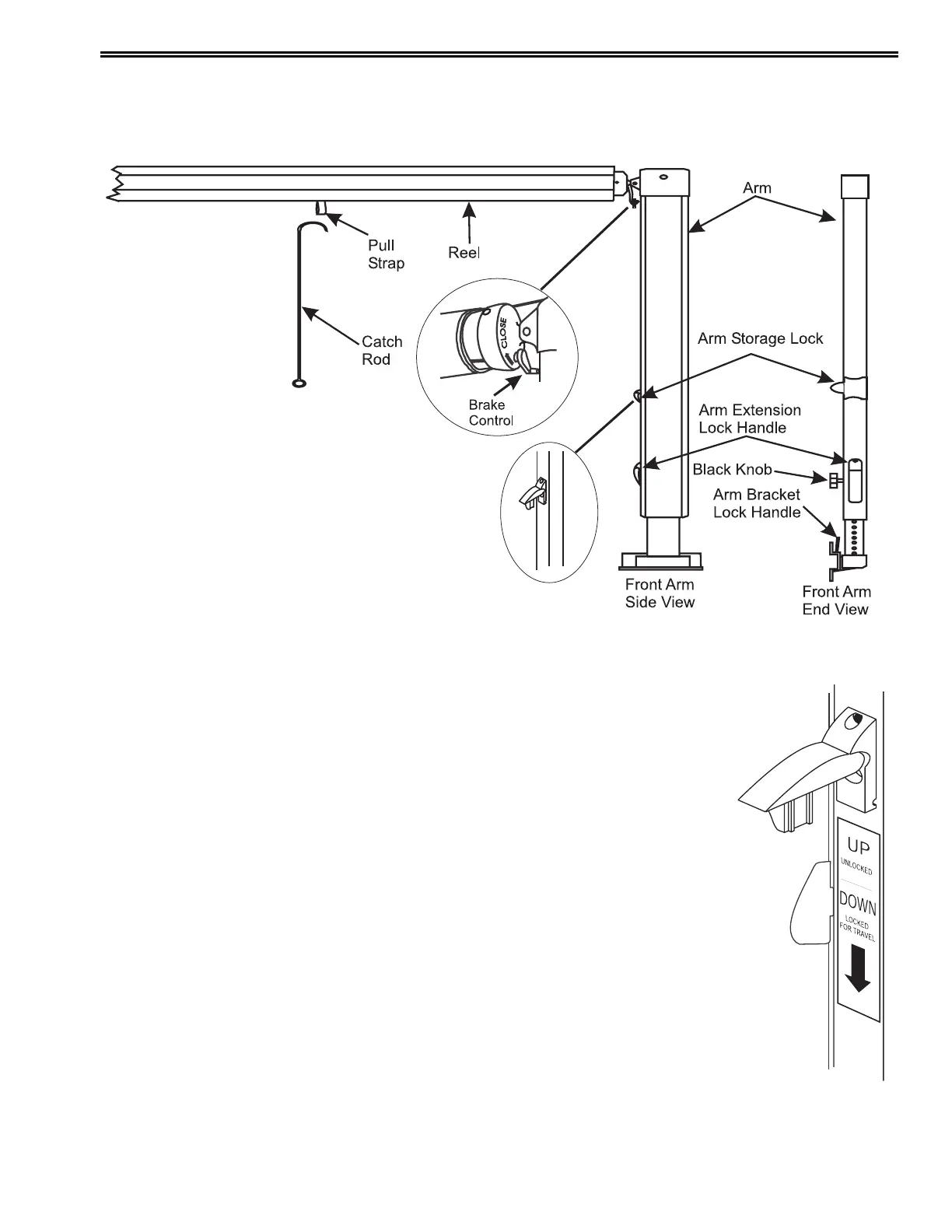

To Unlock the Awning:
Start with either awning leg. Repeat the following
steps for each leg.
1. Loosen the black locking knob located on the backside of the awning
leg (only about six turns are needed). This will allow the support brace
to move freely.
2. Unlock the travel lock by using one hand to squeeze inner and outer
arm to remove tension from storage lock. Push up on tab and swing
lock away.
3. Move the brake control (front leg only), to the up/unlock position.
030844d
030840
Lower Brake Control
Awning - Patio
To Next Page
