Monarch SE 2004----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Section 6 Water Systems | 239

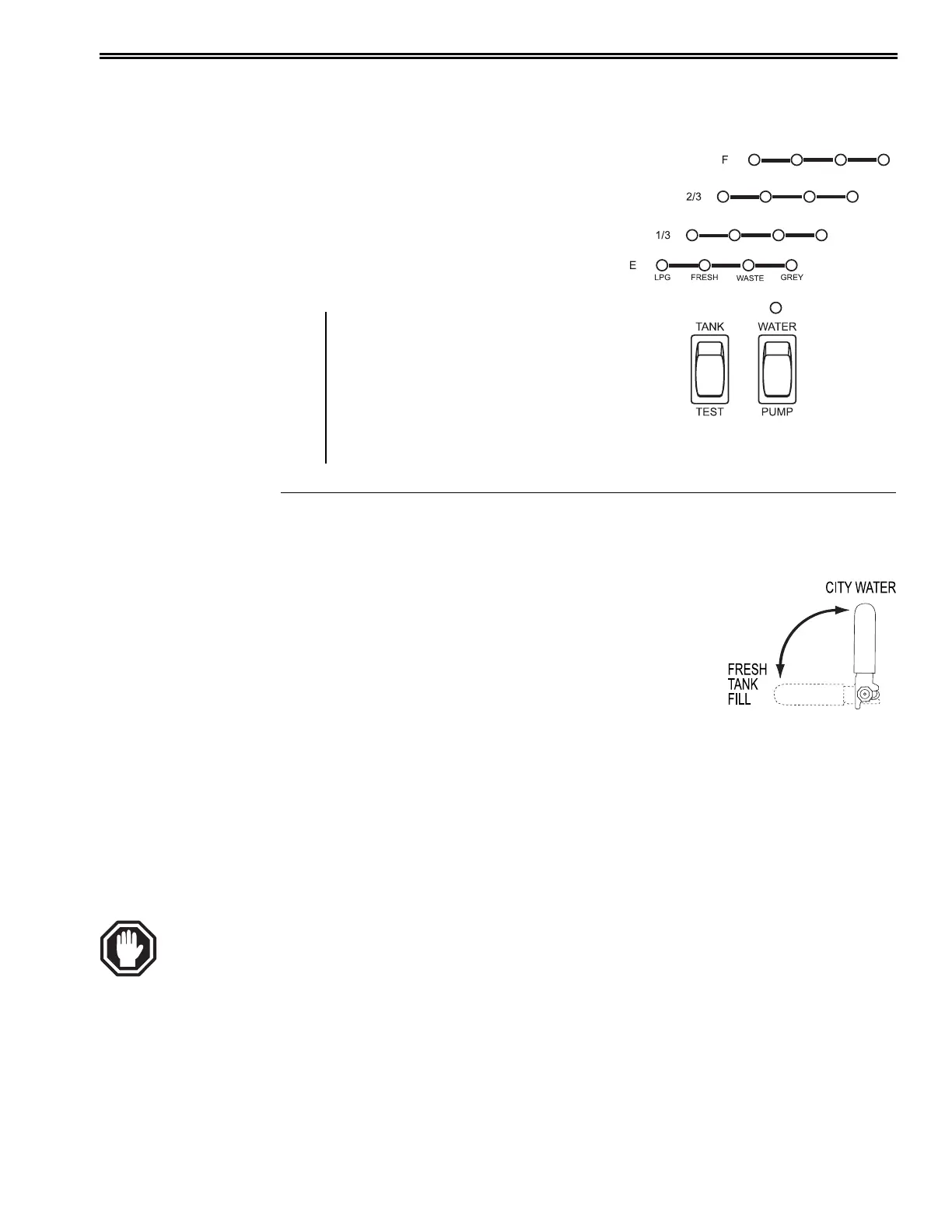

The motorhome is equipped with a monitor panel to aide in
managing the storage tanks located in a main Status Monitor
Panel in the hallway area. The switch marked TEST is a
momentary switch to be held down while testing the level of the
storage tanks. Read the scale for the desired storage tank that is to
be monitored. Each scale uses colored lights along with a corre-
sponding scale reading.
The lights and scale indications are as follows:
To Hook up to city water:
• Remove hose plug and install a water pressure regulator to the water hose.
• Connect the water hose to a city water hook-up.
• Using the City Water/Tank Fill valve, select either City Water or Fresh
Tank Fill.
• Turn on the water supply.
• If used for filling the water tank, water will flow out of the overflow
underneath the motorhome when the tank is full. Shut the water supply
off as soon as possible.
To Disconnect City Water:
• Disconnect the water hose from the faucet. Do not leave water regulator
attached to faucet.
• Install plug in hose when not in use or roll up hose and screw ends
together to keep out contaminates and insects.
CAUTION: Some outside water sources develop high water
pressure, particularly in mountainous regions. High water pres-
sure is anything over 55 psi (pounds per square inch). Excessive
water pressure may cause leaks in water lines and/or damage the
water heater. A pressure regulator should be connected to the city
water faucet to regulate the pressure to the potable water hose.
Excess pressure on a hot day can cause the water hose to swell
and burst.
MONITOR PANEL (WATER TANK)
- Measurement
040436B
LP-Gas Tank & Fresh Tank
Red = Empty
Orange = 1/3 Full
Yellow = 2/3 Full
Green = Full
Waste and Grey Holding Tanks
Green = Empty
Yellow = 1/3 Full
Orange = 2/3 Full
Red = Full
WATER TANK
- Fresh Water Fill
