Monarch SE 2004-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Section 8 Electrical System | 293

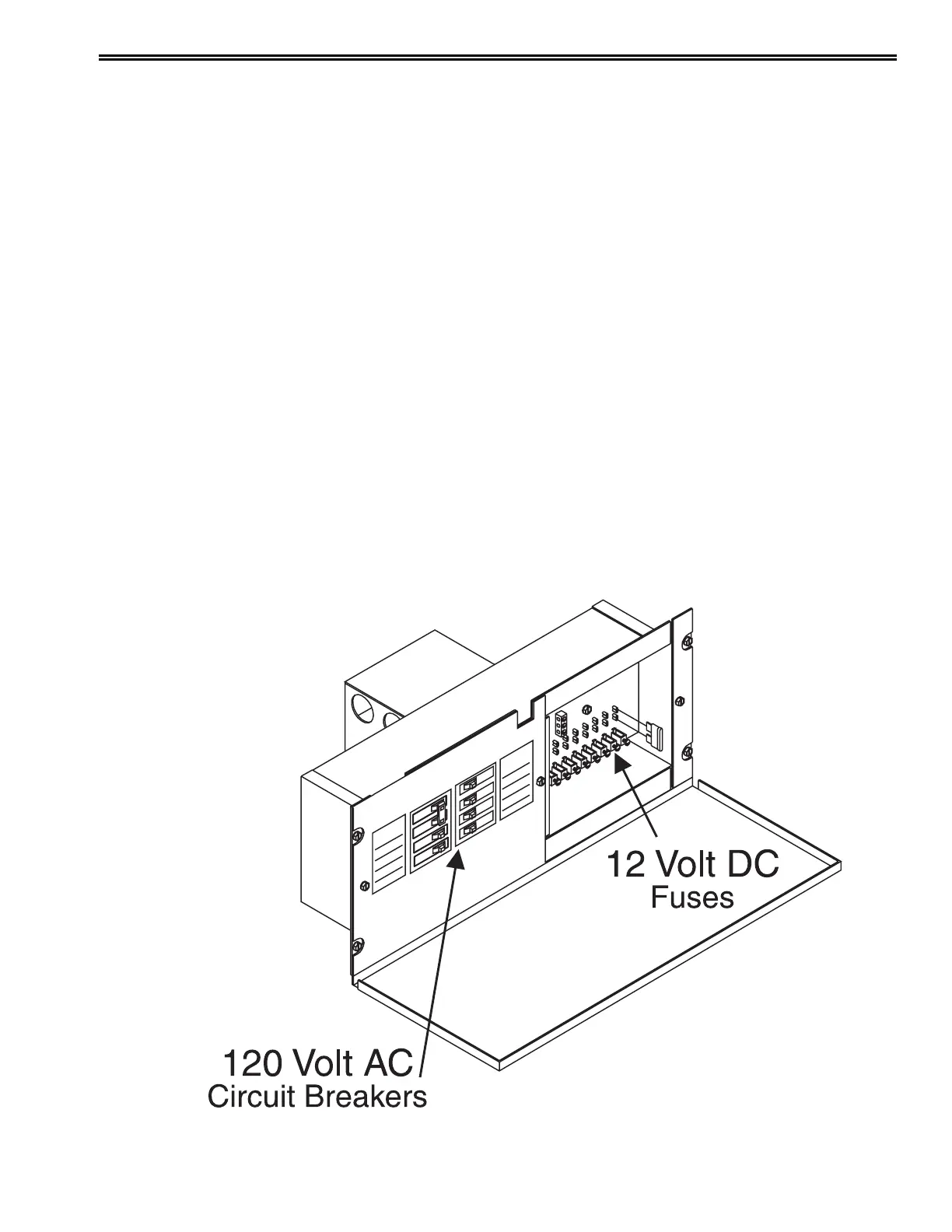

Fuse Assignments are as Follows:
1. Bath Lights/Vents - 15 Amp Fuse
2. Dinette/Porch/Rt. Overhead - 15 Amp Fuse
3. Bedroom/ODS Lights - 15 Amp Fuse
4. Kitchen/Left Overhead, Stove Vent (Opt Vent - 15 Amp Fuse)
5. Ceiling Lights - 15 Amp Fuse
6. Furnace - 15 Amp Fuse
7. Monitor Panel - 15 Amp Fuse
8. Slide-out - 15 Amp Fuse
9. Radio - 5 Amp Fuse
Circuit Breaker Assignments are as Follows:
Left Side Right Side
• 30 AMP MAIN • Converter, Bedroom TV, Dining
• Front Air Conditioner Room
• Rear Air Conditioner • Bathroom, Kitchen, Refrigerator,
TV, VCR
• Water Heater
• Microwave
