Check the fuse and auto reset breaker
on the slide-out relay module located in
the storage compartment under the slide-
out.
If the slide-out room will not operate
after verifying the safety features and the
fuse and auto reset circuit breakers are
okay, it will be necessary to manually
retract the slide-out.
WARNING: Do not work on the slide-out system unless the
batteries are disconnected. Make sure the floor is clean before
retracting the slide-out room.
After the previous items have been checked and the room still does not move
when the slide-out switch is pressed, follow these steps to manually override the
slide-out room:
• Disconnect batteries.
• Access slide-out motor: the bedroom slide-out motor is located under
the mattress. Lift the mattress and remove the access panel. The
wardrobe motor is accessed by opening the curb side bay door and the
main slide motor is behind the slide out storage box.
• If necessary, disconnect wire plug to slide-out motor.
• Use a 1" wrench or socket on drive shaft to retract the room.
• After room is retracted, place brake lever to Engage.
• On slide motors without a lock lever: unbolt the four fasteners
retaining the motor to the flange. Make sure everything is clear of the
slide-out room path. Manually push the room into place. Re-install the
motor to secure room.
• Take motorhome to an authorized service center.
NOTE: Slide-out room is heavy and may take several people to
push it in.
080429

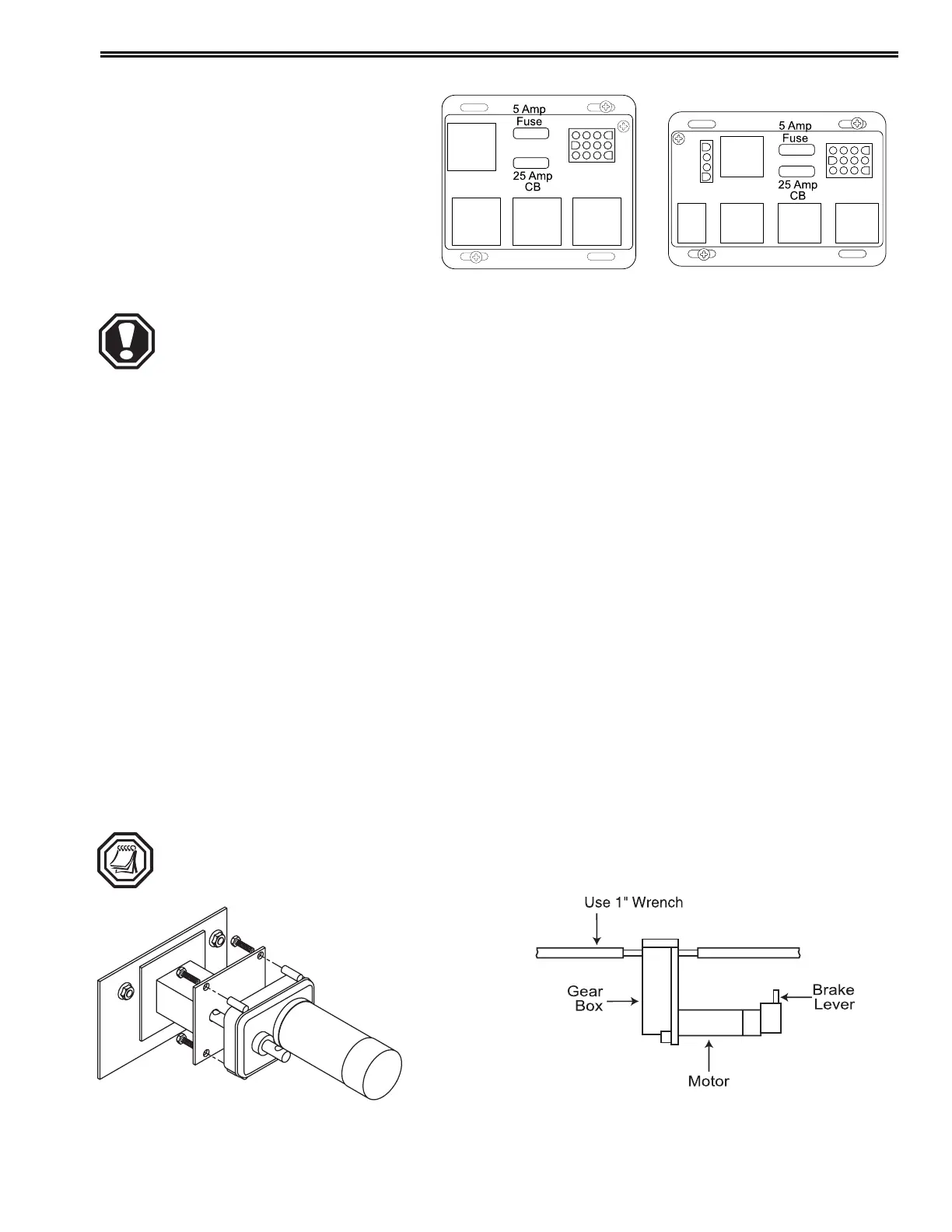

Triple SlideDouble Slide
090340
Main and Wardrobe Slide
Motor with Brake Lever
030749C
Bed Slide Motor
without Brake Lever
